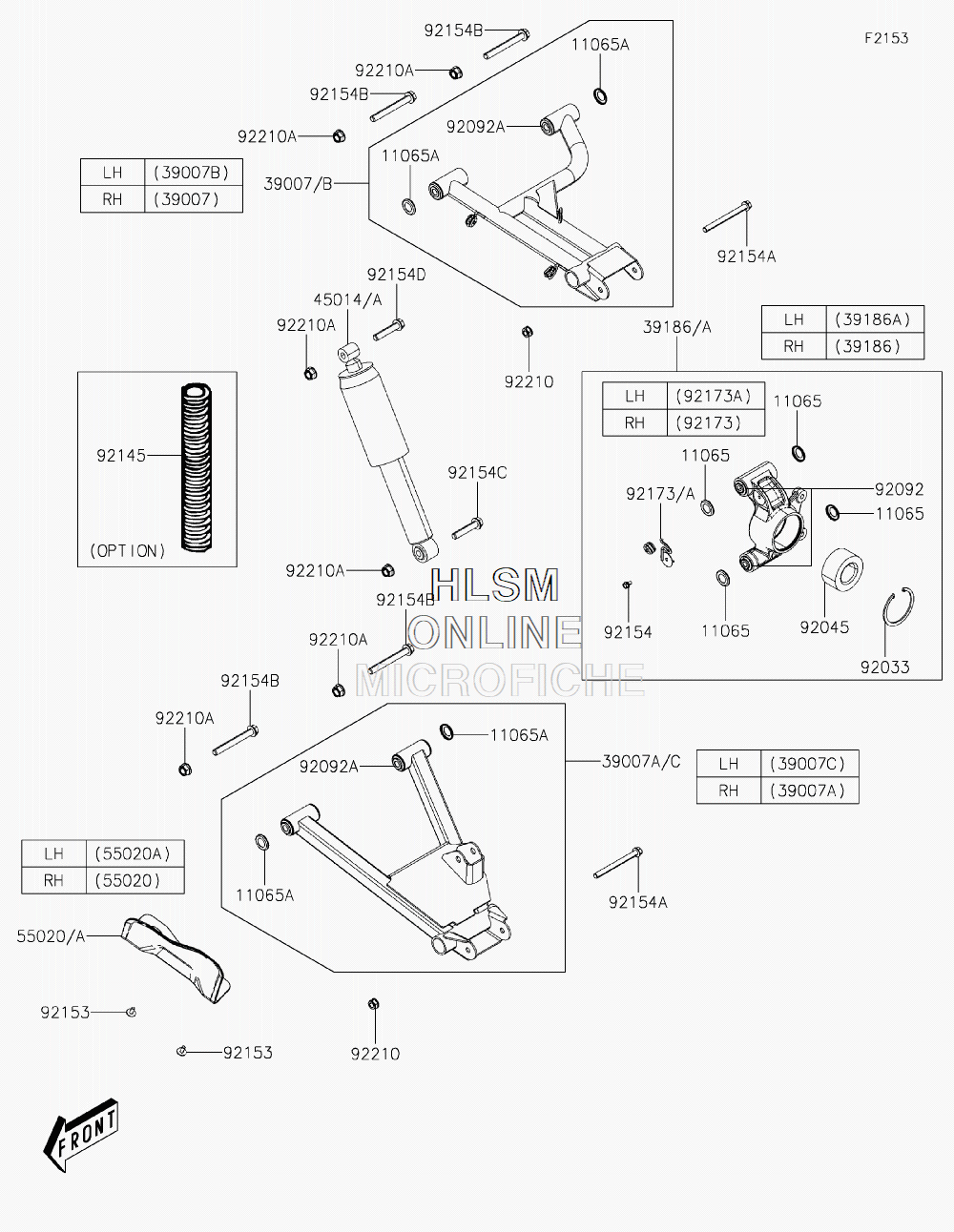

SUSPENSION - REAR для Kawasaki MULE PRO-MX EPS CAMO (KAF700DKF) - 2019 года выпуска
-
№АртикулНазвание
-
1106511065-Y038 CAPCAP
-
11065A11065-Y039 CAP, ARMCAP, ARM
-
3900739007-Y014 ARM-SUSP, REAR, UPPER, RIGHT HANDARM-SUSP, REAR, UPPER, RIGHT HAND
-
39007A39007-Y015 ARM-SUSP, REAR, LOWER, RIGHT HANDARM-SUSP, REAR, LOWER, RIGHT HAND
-
39007B39007-Y016 ARM-SUSP, REAR, UPPER, LEFT HANDARM-SUSP, REAR, UPPER, LEFT HAND
-
39007C39007-Y017 ARM-SUSP, REAR.LOWER, LEFT HANDARM-SUSP, REAR.LOWER, LEFT HAND
-
3918639186-Y006 KNUCKLE, REAR, RIGHT HANDKNUCKLE, REAR, RIGHT HAND
-
39186A39186-Y008 KNUCKLE, REAR, LEFT HANDKNUCKLE, REAR, LEFT HAND
-
4501445014-Y009 SHOCKABSORBER, REAR (EXCEPT CALIF.)SHOCKABSORBER, REAR (EXCEPT CALIF.)
-
45014A45014-Y011 SHOCKABSORBER, REAR (CALIF. ONLY)SHOCKABSORBER, REAR (CALIF. ONLY)
-
5502055020-Y018-933 GUARD, REAR, RIGHT HAND, (S.BLACK)GUARD, REAR, RIGHT HAND, (S.BLACK)
-
55020A55020-Y019-933 GUARD, REAR, LEFT HAND, (S.BLACK)GUARD, REAR, LEFT HAND, (S.BLACK)
-
9203392033-Y039 RING-SNAPRING-SNAP
-
9204592045-0897 BEARING-BALL, 40X74X36BEARING-BALL, 40X74X36
-
9209292092-Y004 BUSHING-RUBBERBUSHING-RUBBER
-
92092A92092-Y005 BUSHING-RUBBERBUSHING-RUBBER
-
9214592145-Y072 SPRING, SHOCK, REAR (OPTION)SPRING, SHOCK, REAR (OPTION)
-
9215392153-Y018 BOLT, 6X16BOLT, 6X16
-
9215492154-Y192 BOLT, FLANGE, 6X6BOLT, FLANGE, 6X6
-
92154A92154-Y199 BOLT, FLANGE, 10X110BOLT, FLANGE, 10X110
-
92154B92154-Y202 BOLT, FLANGE, 12X100BOLT, FLANGE, 12X100
-
92154C92154-Y203 BOLT, FLANGE, 12X60BOLT, FLANGE, 12X60
-
92154D92154-Y204 BOLT, FLANGE, 12X55BOLT, FLANGE, 12X55
-
9217392173-Y070 CLAMP, KNUCKLE, RIGHT HANDCLAMP, KNUCKLE, RIGHT HAND
-
92173A92173-Y072 CLAMP, KNUCKLE, LEFT HANDCLAMP, KNUCKLE, LEFT HAND
-
9221092210-Y009 NUT, 10MMNUT, 10MM
-
92210A92210-Y090 NUT, FLANGE, 12MMNUT, FLANGE, 12MM
