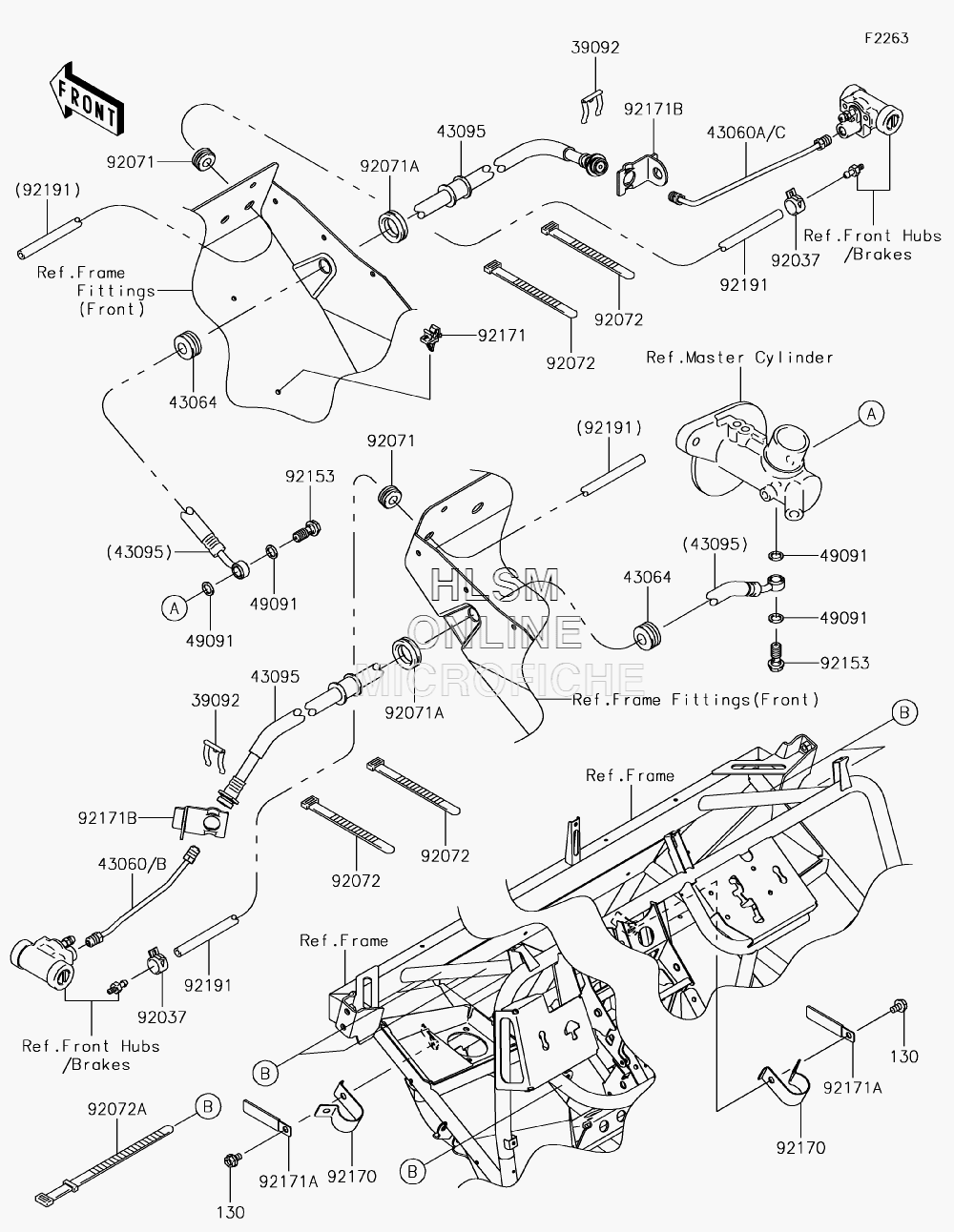

BRAKE PIPING - FRONT для Kawasaki MULE SX 4X4 (KAF400HKF) - 2019 года выпуска
-
№АртикулНазвание
-
130130AA0610 BOLT-FLANGED, 6X10BOLT-FLANGED, 6X10
-
3909239092-1052 PIN-HAIRPIN-HAIR
-
43060B43060-0335 PIPE-BRAKE, FRONT, LEFT HANDPIPE-BRAKE, FRONT, LEFT HAND
-
43060C43060-0336 PIPE-BRAKE, FRONT, RIGHT HANDPIPE-BRAKE, FRONT, RIGHT HAND
-
4306443064-007 GROMMET, HOSE CLAMPGROMMET, HOSE CLAMP
-
4309543095-0055 HOSE-BRAKE, FRONTHOSE-BRAKE, FRONT
-
4909149091-0001 WASHER-SEAL, 10.1X14.5X1.5WASHER-SEAL, 10.1X14.5X1.5
-
9203792037-1601 CLAMPCLAMP
-
9207192071-1010 GROMMETGROMMET
-
92071A92071-3704 GROMMETGROMMET
-
9207292072-030 BAND, L=123BAND, L=123
-
92072A92072-056 BAND, L=186BAND, L=186
-
9215392153-1419 BOLT, OIL, L=23BOLT, OIL, L=23
-
9217092170-1173 CLAMP, HOSECLAMP, HOSE
-
9217192171-0339 CLAMPCLAMP
-
92171A92171-0652 CLAMP, L=60CLAMP, L=60
-
92171B92171-1654 CLAMPCLAMP
-
9219192191-1615 TUBE, 4.7X9.5X1480TUBE, 4.7X9.5X1480
