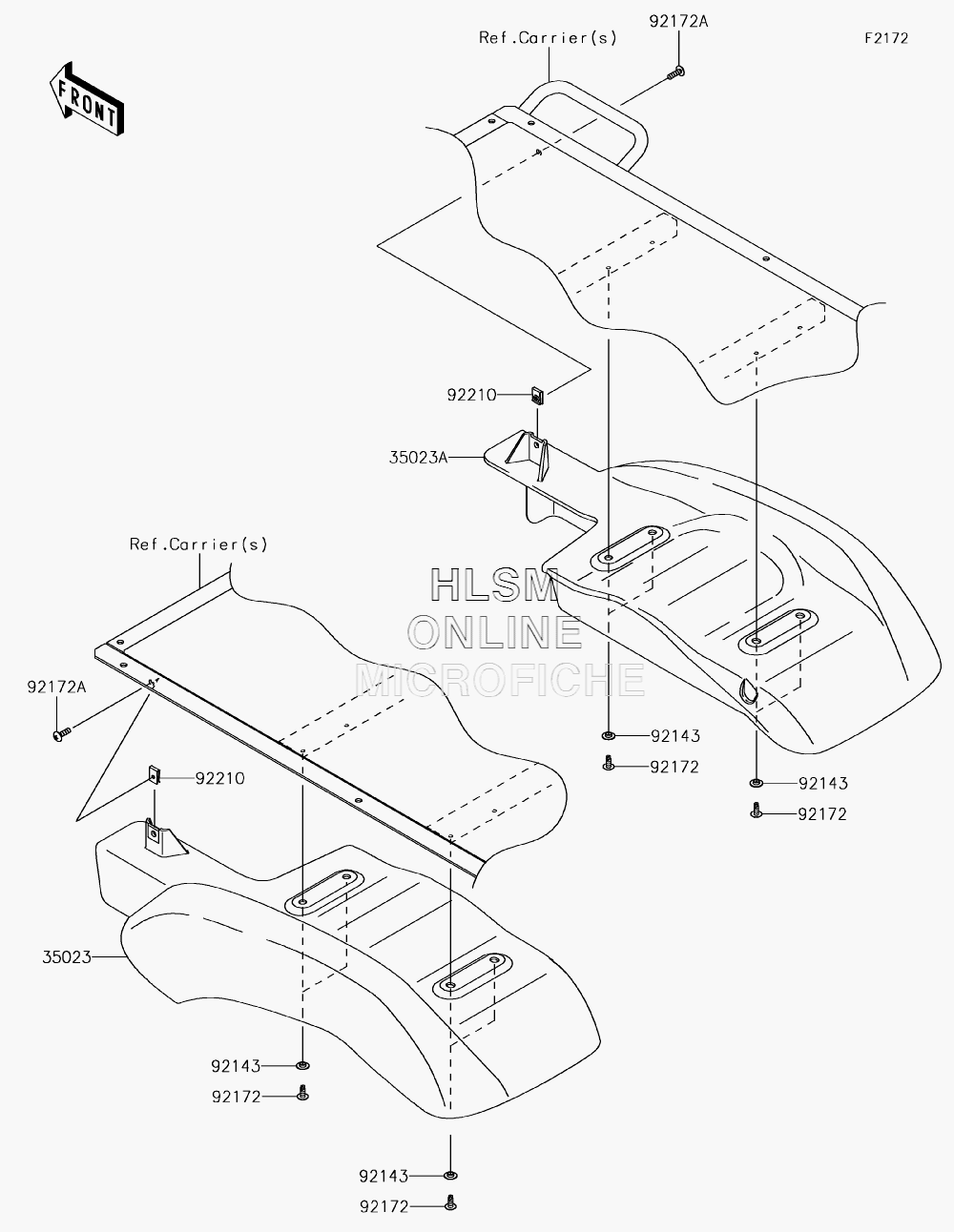

FENDER - REAR для Kawasaki MULE SX 4X4 SE (KAF400NKF) - 2019 года выпуска
-
№АртикулНазвание
-
3502335023-0045-6Z FENDER-REAR, LEFT HAND, (F.BLACK)FENDER-REAR, LEFT HAND, (F.BLACK)
-
35023A35023-0046-6Z FENDER-REAR, RIGHT HAND, (F.BLACK)FENDER-REAR, RIGHT HAND, (F.BLACK)
-
9214392143-1087 COLLARCOLLAR
-
9217292172-0739 SCREW, TAPPING, 6X16SCREW, TAPPING, 6X16
-
92172A92172-0883 SCREW, TAPPING, 6X20SCREW, TAPPING, 6X20
-
9221092210-0624 NUT, LEAF SPRING, 6MMNUT, LEAF SPRING, 6MM
