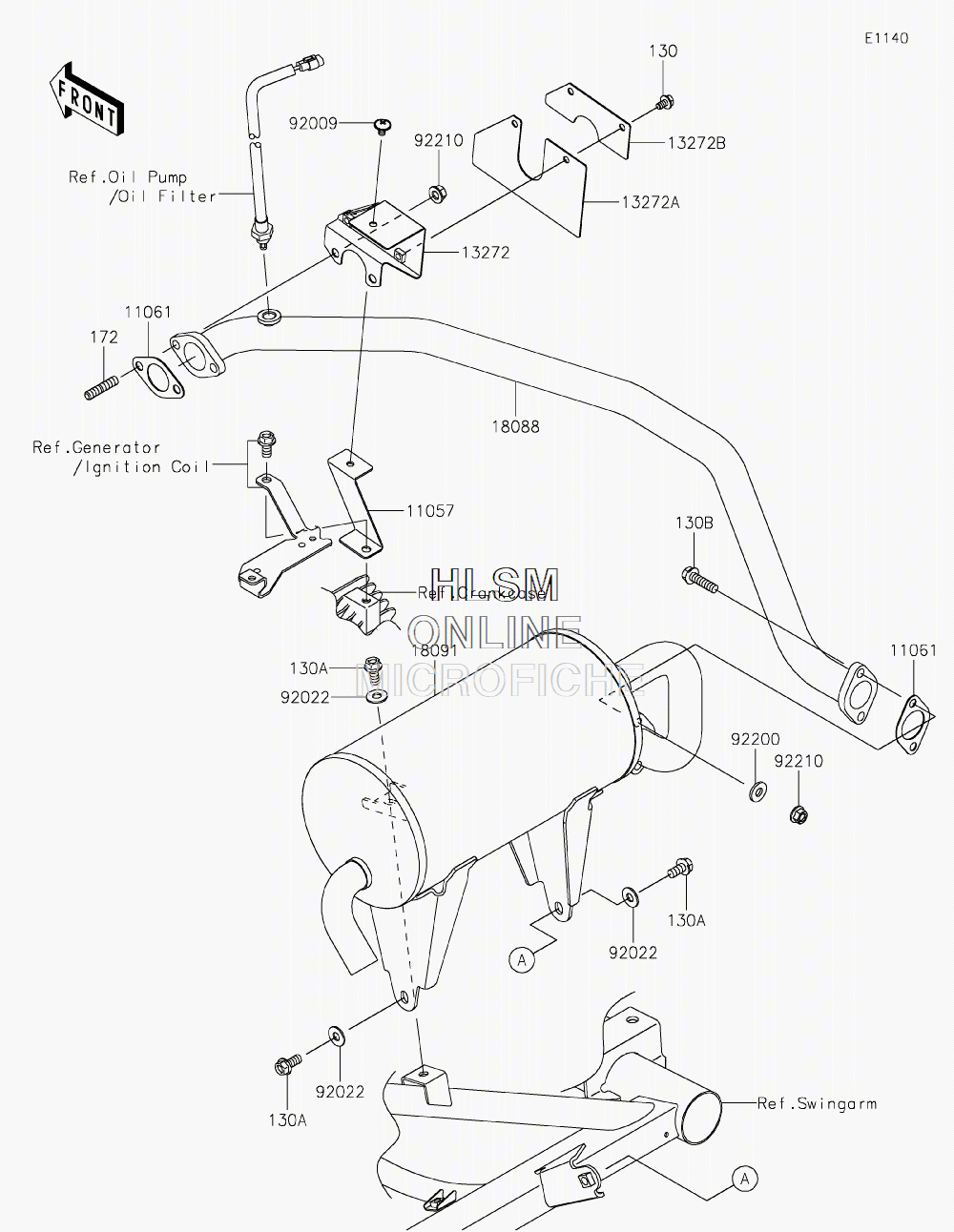

MUFFLER(S) для Kawasaki MULE SX 4X4 XC CAMO FI (KAF400SKS) - 2019 года выпуска
-
№АртикулНазвание
-
1105711057-1829 BRACKETBRACKET
-
1106111061-0132 GASKETGASKET
-
130130BA0610 BOLT-FLANGED, 6X10BOLT-FLANGED, 6X10
-
130A130CA0816 BOLT-FLANGED, 8X16BOLT-FLANGED, 8X16
-
130B130CD0830 BOLT-FLANGED, 8X30BOLT-FLANGED, 8X30
-
1327213272-2621 PLATEPLATE
-
13272A13272-2622 PLATEPLATE
-
13272B13272-2623 PLATEPLATE
-
172172BA0822 BOLT-STUD, 8X22BOLT-STUD, 8X22
-
1808818088-1402 PIPE-EXHAUSTPIPE-EXHAUST
-
1809118091-0884 BODY-COMP-MUFFLERBODY-COMP-MUFFLER
-
9200992009-1661 SCREW, 6X10SCREW, 6X10
-
9202292022-1561 WASHER, 8.5X20X1.6WASHER, 8.5X20X1.6
-
9220092200-1213 WASHER, 8.5X18X2.3WASHER, 8.5X18X2.3
-
9221092210-1456 NUT, 8MMNUT, 8MM
