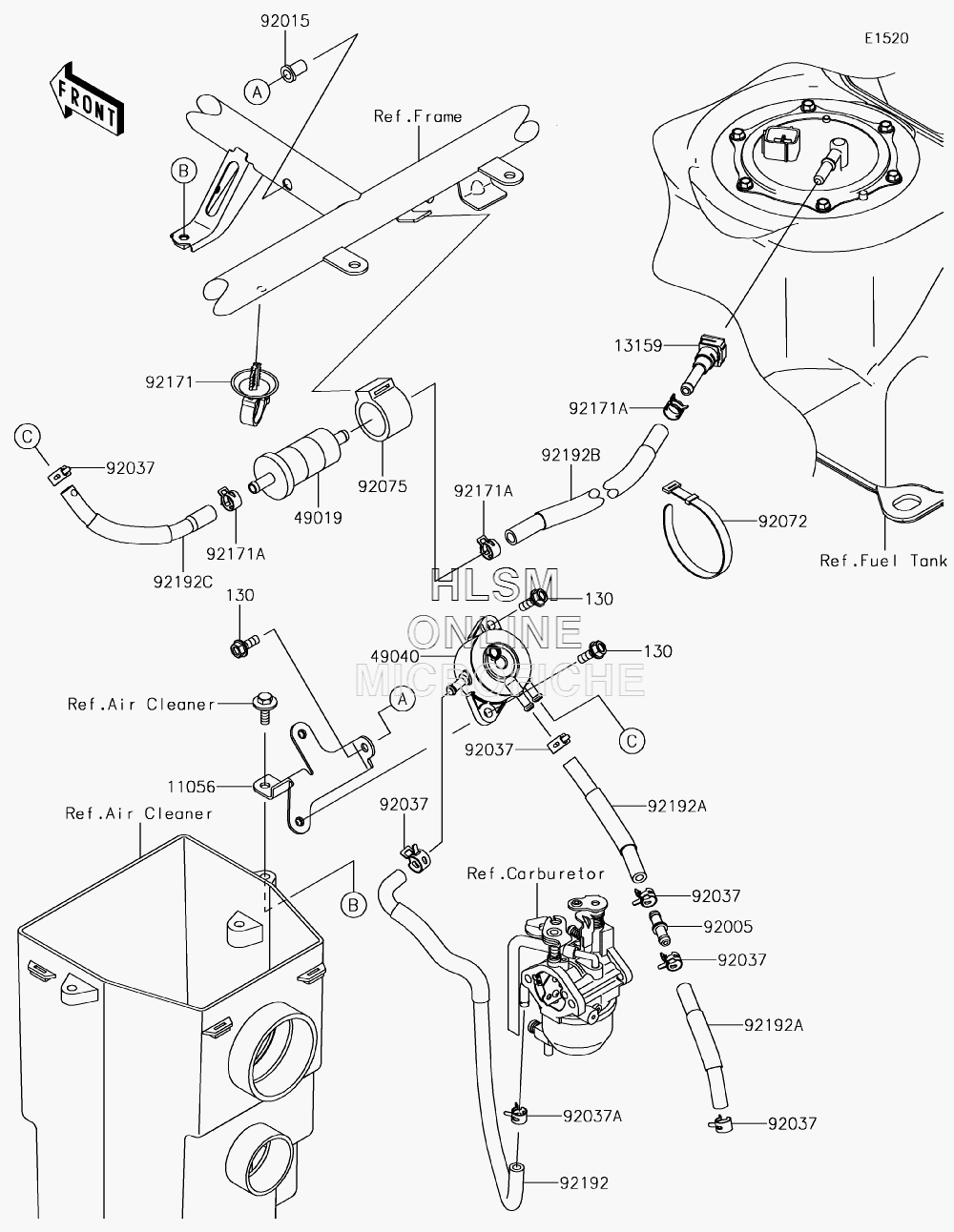

FUEL PUMP для Kawasaki MULE SX 4X4 XC CAMO (KAF400LKF) - 2019 года выпуска
-
№АртикулНазвание
-
1105611056-4297 BRACKET, PUMP-FUELBRACKET, PUMP-FUEL
-
130130BA0616 BOLT-FLANGED, 6X16BOLT-FLANGED, 6X16
-
1315913159-0022 CONNECTORCONNECTOR
-
4901949019-1055 FILTER-FUELFILTER-FUEL
-
4904049040-7001 PUMP-FUELPUMP-FUEL
-
9200592005-0856 FITTINGFITTING
-
9201592015-1759 NUT, POP, 6MMNUT, POP, 6MM
-
9203792037-1505 CLAMP, TUBECLAMP, TUBE
-
92037A92037-2113 CLAMPCLAMP
-
9207292072-056 BAND, L=186BAND, L=186
-
9207592075-1853 DAMPER, FUEL FILTERDAMPER, FUEL FILTER
-
9217192171-0453 CLAMPCLAMP
-
92171A92171-0515 CLAMPCLAMP
-
9219292192-0826 TUBE, CARB.-PUMP FUELTUBE, CARB.-PUMP FUEL
-
92192A92192-1613 TUBE, CRAB.INSULATOR-PUMPTUBE, CRAB.INSULATOR-PUMP
-
92192B92192-1689 TUBE, TANK-FUEL FILTERTUBE, TANK-FUEL FILTER
-
92192C92192-1750 TUBE, FUEL FILTER-FUEL PUMPTUBE, FUEL FILTER-FUEL PUMP
