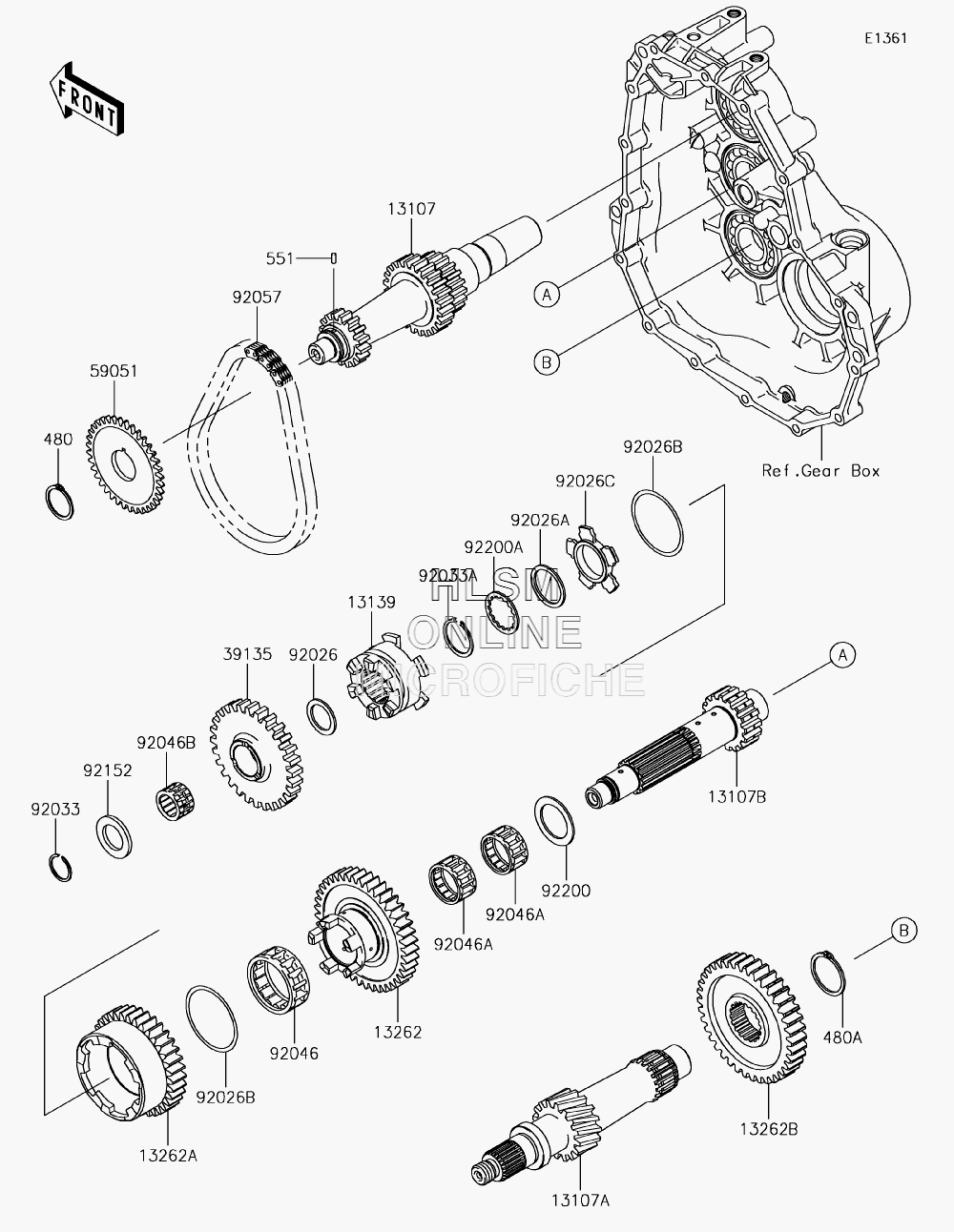

TRANSMISSION для Kawasaki MULE SX 4X4 XC SE (KAF400MKF) - 2019 года выпуска
-
№АртикулНазвание
-
1310713107-0039 SHAFT, FIRST, INPUT, 16T & 24T & 19TSHAFT, FIRST, INPUT, 16T & 24T & 19T
-
13107A13107-0088 SHAFT, THIRD, 16TSHAFT, THIRD, 16T
-
13107B13107-0222 SHAFT, 2ND, 17TSHAFT, 2ND, 17T
-
1313913139-0004 SHIFTER, FR/RRSHIFTER, FR/RR
-
1326213262-0106 GEAR, LOW, 41TGEAR, LOW, 41T
-
13262A13262-0107 GEAR, HIGH, 35TGEAR, HIGH, 35T
-
13262B13262-0742 GEAR-TRANSMISSION SPUR, 38TGEAR-TRANSMISSION SPUR, 38T
-
3913539135-0001 SPROCKET-DRIVEN, 30TSPROCKET-DRIVEN, 30T
-
480480J2500 CIRCLIP-TYPE-C, 25MMCIRCLIP-TYPE-C, 25MM
-
480A480J3200 CIRCLIP-TYPE-C, 32MMCIRCLIP-TYPE-C, 32MM
-
551551A0308 PIN-DOWEL, 3X8PIN-DOWEL, 3X8
-
5905159051-0049 GEAR-SPUR, 37TGEAR-SPUR, 37T
-
9202692026-1568 SPACER, 21.2X29X1.6SPACER, 21.2X29X1.6
-
92026A92026-1587 SPACER, 28.2X34.5X1.6SPACER, 28.2X34.5X1.6
-
92026B92026-1599 SPACER, 48.2X54.3X1.0SPACER, 48.2X54.3X1.0
-
92026C92026-1600 SPACER, HI & LOWSPACER, HI & LOW
-
9203392033-015 RING-SNAP, 20MMRING-SNAP, 20MM
-
92033A92033-1037 RING-SNAP, 25.9X30.6X1.2RING-SNAP, 25.9X30.6X1.2
-
9204692046-1276 BEARING-NEEDLE, HIGH GEARBEARING-NEEDLE, HIGH GEAR
-
92046A92046-1278 BEARING-NEEDLE, FWF-283317BEARING-NEEDLE, FWF-283317
-
92046B92046-1279 BEARING-NEEDLE, REVERSE GEARBEARING-NEEDLE, REVERSE GEAR
-
9205792057-0072 CHAIN, REVERSE, 23RIGHT HAND302-38ASMCHAIN, REVERSE, 23RIGHT HAND302-38ASM
-
9215292152-0241 COLLAR, 21.2X34.0X3.0COLLAR, 21.2X34.0X3.0
-
9220092200-0090 WASHER, 28.2X40.0X1.6WASHER, 28.2X40.0X1.6
-
92200A92200-1240 WASHER, 28.5X34.0X1.5WASHER, 28.5X34.0X1.5
