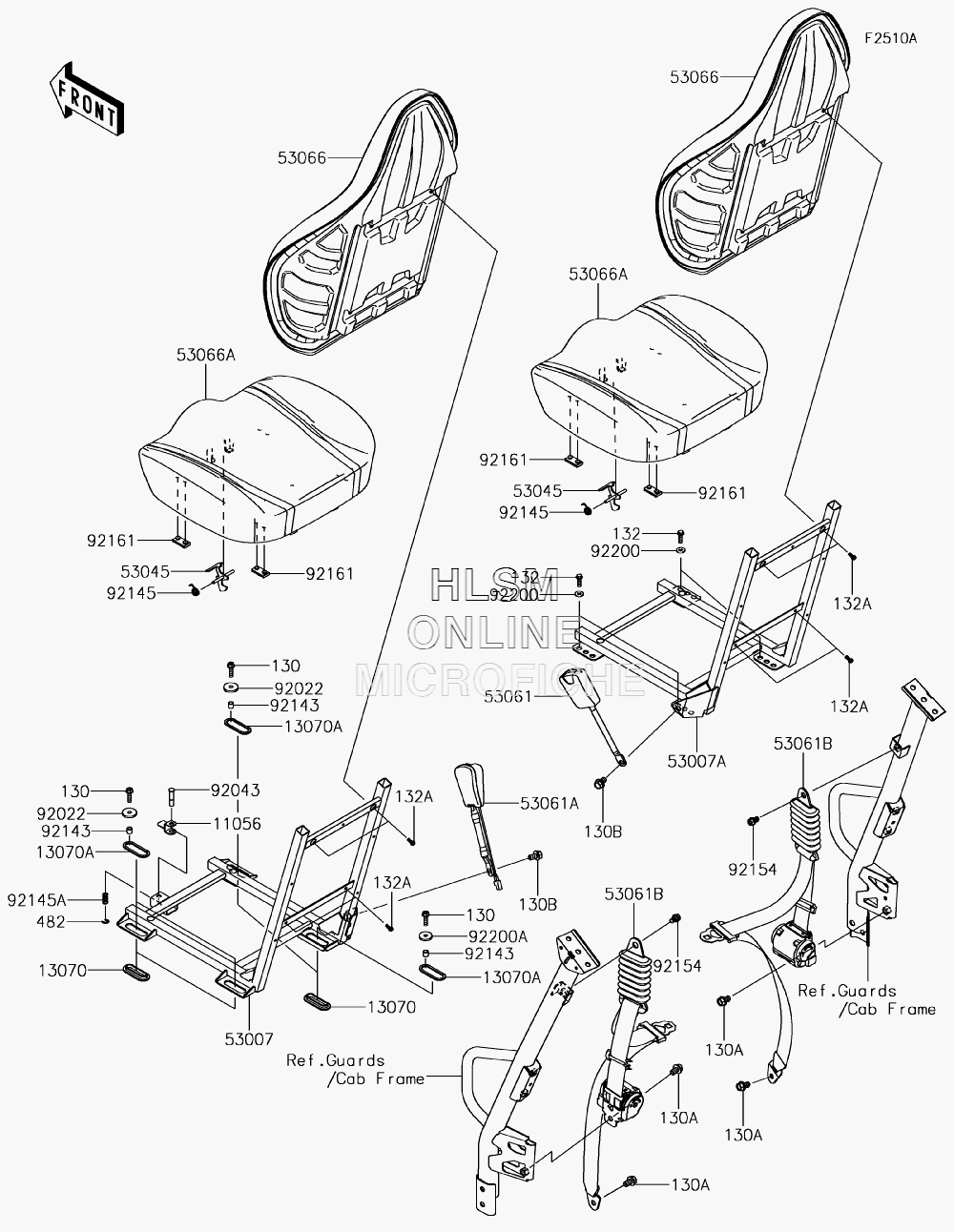

SEAT для Kawasaki TERYX CAMO (KRF800HKF) - 2019 года выпуска
-
№АртикулНазвание
-
1105611056-7917 BRACKETBRACKET
-
130130BA0830 BOLT-FLANGED, 8X30BOLT-FLANGED, 8X30
-
1307013070-0806 GUIDEGUIDE
-
13070A13070-0807 GUIDEGUIDE
-
130A130BA1220 BOLT-FLANGED, 12X20BOLT-FLANGED, 12X20
-
130B130BB1222 BOLT-FLANGED, 13X22BOLT-FLANGED, 13X22
-
132132BA0825 BOLT-FLANGED-SMALL, 8X25BOLT-FLANGED-SMALL, 8X25
-
132A132BB0614 BOLT-FLANGED-SMALL, 6X14BOLT-FLANGED-SMALL, 6X14
-
482482EA8000 CIRCLIP-TYPE-E, 8MMCIRCLIP-TYPE-E, 8MM
-
5300753007-0375 FRAME-SEAT, FRONT, LEFT HANDFRAME-SEAT, FRONT, LEFT HAND
-
53007A53007-0376 FRAME-SEAT, FRONT, RIGHT HANDFRAME-SEAT, FRONT, RIGHT HAND
-
5304553045-0019 HOOK-ASSYHOOK-ASSY
-
5306153061-0039 BELT-SEAT, BUCKLEBELT-SEAT, BUCKLE
-
53061A53061-0338 BELT-SEAT, BUCKLE, SW.BELT-SEAT, BUCKLE, SW.
-
53061B53061-0345 BELT-SEAT, RETRACTOR, L=2500BELT-SEAT, RETRACTOR, L=2500
-
5306653066-0323-MA SEAT-ASSY, BACK, (BLACK)SEAT-ASSY, BACK, (BLACK)
-
53066A53066-0532-MA SEAT-ASSY, BASE, (BLACK)SEAT-ASSY, BASE, (BLACK)
-
9202292022-2116 WASHERWASHER
-
9204392043-0882 PINPIN
-
9214392143-1340 COLLAR, 8.8X12X11.5COLLAR, 8.8X12X11.5
-
9214592145-0022 SPRING, SEAT LATCHSPRING, SEAT LATCH
-
92145A92145-1682 SPRINGSPRING
-
9215492154-2089 BOLT, FLANGED, 10X16BOLT, FLANGED, 10X16
-
9216192161-1489 DAMPER, SEATDAMPER, SEAT
-
9220092200-0205 WASHER, 8.2X20.0X2.5WASHER, 8.2X20.0X2.5
-
92200A92200-1758 WASHER, 8.6X31X4.5WASHER, 8.6X31X4.5
