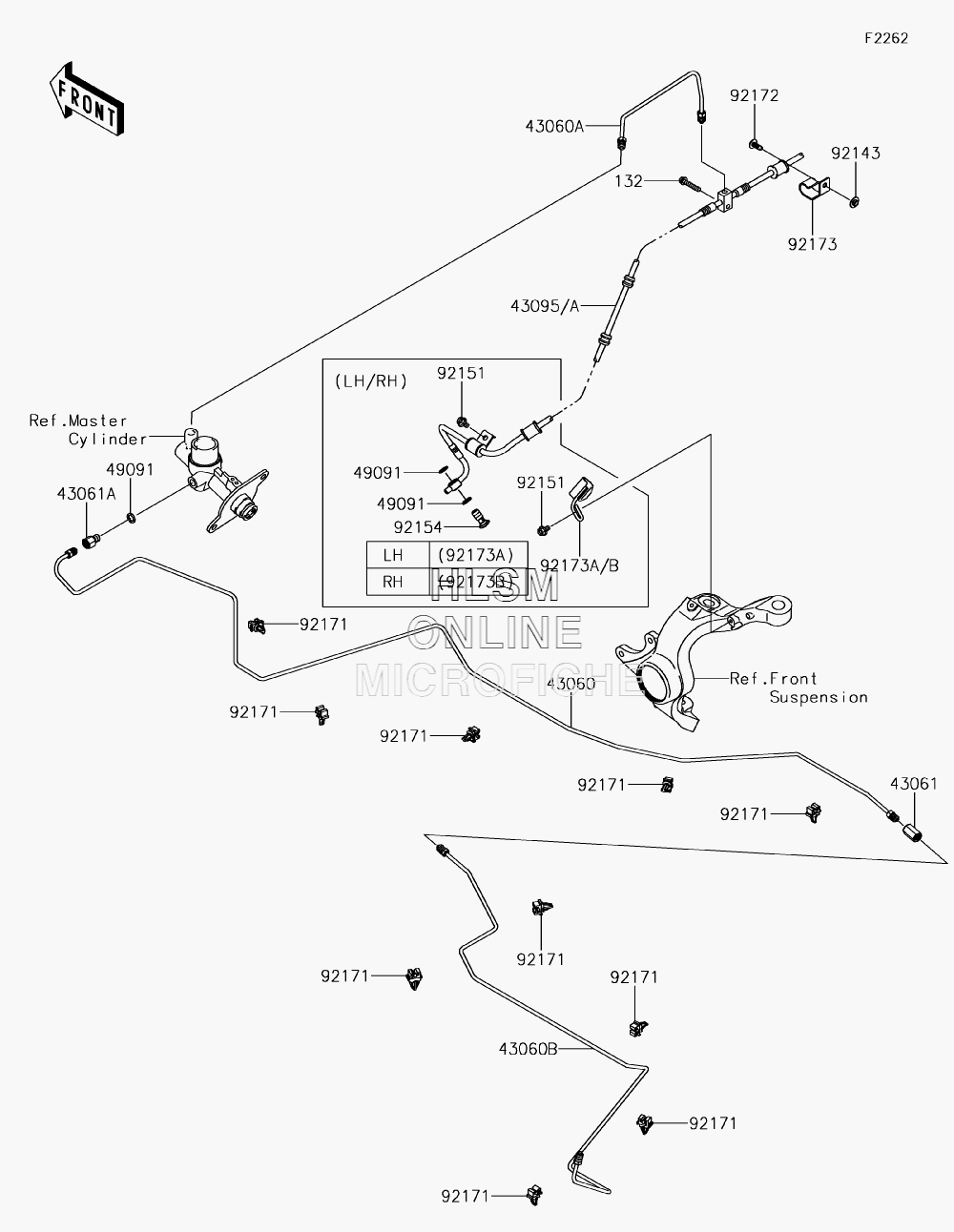

BRAKE PIPING для Kawasaki TERYX (KRF800FKF) - 2019 года выпуска
-
№АртикулНазвание
-
132132BA0630 BOLT-FLANGED-SMALL, 6X30BOLT-FLANGED-SMALL, 6X30
-
4306043060-0316 PIPE-BRAKE, M/C-JOINTPIPE-BRAKE, M/C-JOINT
-
43060A43060-0320 PIPE-BRAKE, M/C-FRONT JOINTPIPE-BRAKE, M/C-FRONT JOINT
-
43060B43060-0324 PIPE-BRAKE, JOINT-BRAKEPIPE-BRAKE, JOINT-BRAKE
-
4306143061-0003 JOINT-BRAKEJOINT-BRAKE
-
43061A43061-0302 JOINT-BRAKE, M/CJOINT-BRAKE, M/C
-
43095A43095-1568 HOSE-BRAKE, FRONTHOSE-BRAKE, FRONT
-
4909149091-0001 WASHER-SEAL, 10.1X14.5X1.5WASHER-SEAL, 10.1X14.5X1.5
-
9214392143-1087 COLLARCOLLAR
-
9215192151-1344 BOLT, 6X10BOLT, 6X10
-
9215492154-1875 BOLT, TORX, 10X23BOLT, TORX, 10X23
-
9217192171-0805 CLAMPCLAMP
-
9217292172-0739 SCREW, TAPPING, 6X16SCREW, TAPPING, 6X16
-
9217392173-0930 CLAMPCLAMP
-
92173A92173-0934 CLAMP, LEFT HANDCLAMP, LEFT HAND
-
92173B92173-0935 CLAMP, RIGHT HANDCLAMP, RIGHT HAND
