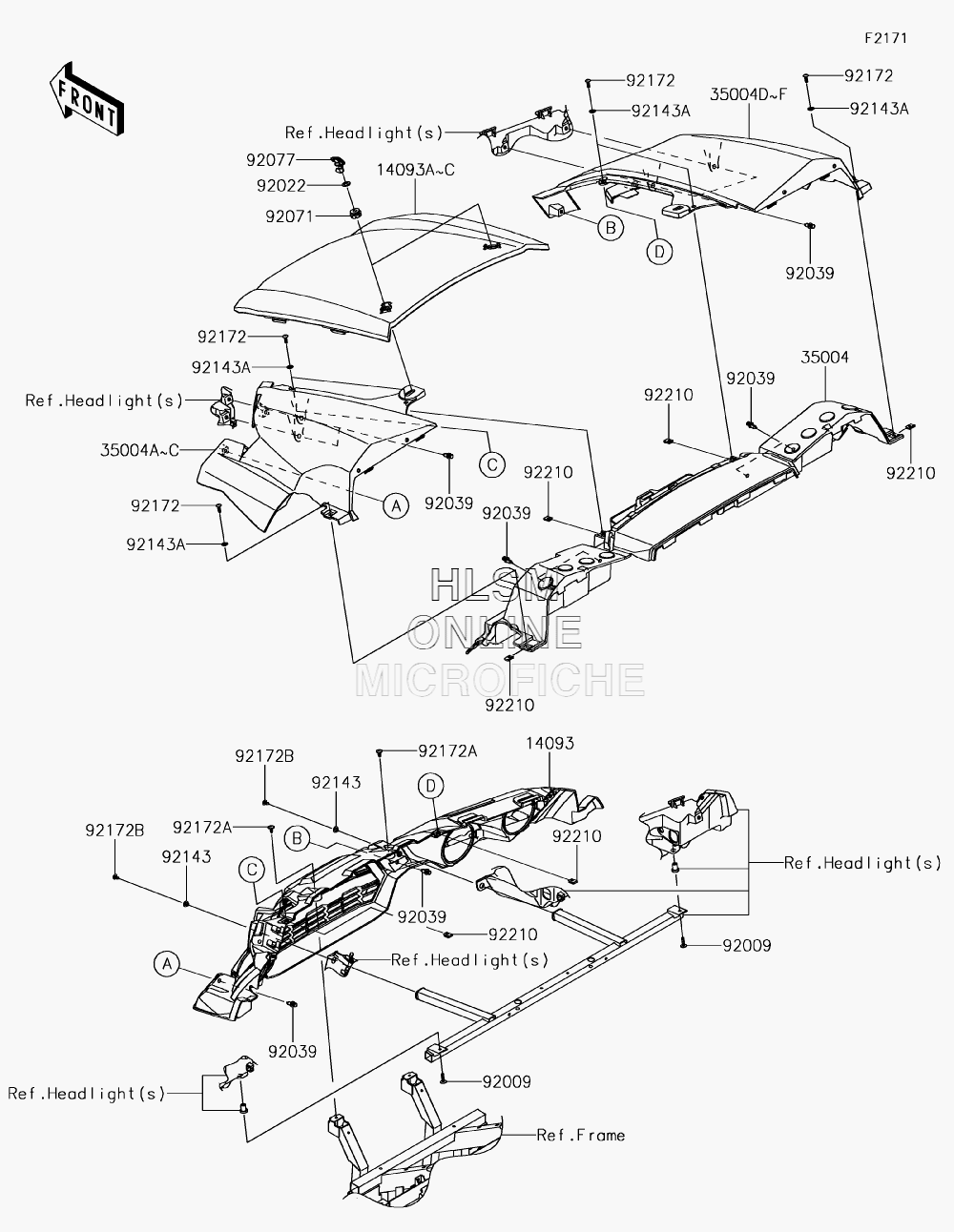

FENDER - FRONT для Kawasaki TERYX4 LE CAMO (KRT800GKFA) - 2019 года выпуска
-
№АртикулНазвание
-
1409314093-0202 COVER, FRONT GRILLCOVER, FRONT GRILL
-
14093B14093-0211-57H COVER, HOOD, (M.C.GRAY)COVER, HOOD, (M.C.GRAY)
-
3500435004-0345 FENDER-FRONT, REARFENDER-FRONT, REAR
-
35004B35004-0346-57R FENDER-FRONT, LEFT HAND, (M.C.GRAY/GRAY)FENDER-FRONT, LEFT HAND, (M.C.GRAY/GRAY)
-
35004E35004-0347-57R FENDER-FRONT, RIGHT HAND, (M.C.GRAY/GRAY)FENDER-FRONT, RIGHT HAND, (M.C.GRAY/GRAY)
-
9200992009-1465 SCREW, 6X25SCREW, 6X25
-
9202292022-072 WASHER, 12.5X22X1.2WASHER, 12.5X22X1.2
-
9203992039-0776 RIVETRIVET
-
9207192071-0746 GROMMETGROMMET
-
9207792077-0033 KNOBKNOB
-
9214392143-1057 COLLARCOLLAR
-
92143A92143-1087 COLLARCOLLAR
-
9217292172-0488 SCREW, TAPPING, 6X20SCREW, TAPPING, 6X20
-
92172A92172-0711 SCREW, 6X16SCREW, 6X16
-
92172B92172-0739 SCREW, TAPPING, 6X16SCREW, TAPPING, 6X16
-
9221092210-0624 NUT, LEAF SPRING, 6MMNUT, LEAF SPRING, 6MM
Все узлы модели:
- AIR CLEANER
- BRAKE - FRONT
- BRAKE - MASTER CYLINDER
- BRAKE - PEDAL W/THROTTLE LEVER
- BRAKE PIPING
- CABLES
- CAMSHAFT(S) W/TENSIONER
- CARRIER(S)
- CHASSIS ELECTRICAL EQUIPMENT
- CLUTCH
- COLOR INFO
- CONVERTER COVER
- CRANKCASE
- CRANKSHAFT
- CYLINDER HEAD
- CYLINDER W/ PISTON(S)
- DECALS (GRAY)
- DOOR
- DRIVE CONVERTER
- DRIVE SHAFT (FRONT)
- DRIVE SHAFT (PROPELLER)
- DRIVE SHAFT (REAR)
- DRIVEN CONVERTER W/ DRIVE BELT
- ENGINE COVER(S)
- ENGINE MOUNT
- • FENDER - FRONT
- FENDER - REAR
- FRAME
- FRAME FITTINGS (FRONT)
- FRAME FITTINGS (REAR)
- FRONT BEVEL GEAR
- FRONT BOX
- FRONT HUB
- FUEL EVAPORATIVE SYSTEM (CAILF. ONLY)
- FUEL INJECTION
- FUEL PUMP
- FUEL TANK
- GEAR CHANGE DRUM/SHIFT FORK(S)
- GEAR CHANGE MECHANISM
- GENERATOR
- GUARD(S)
- GUARD(S) / CAB FRAME
- HEADLIGHT(S)
- IGNITION SWITCH
- IGNITION SYSTEM
- LABELS
- MANUALS
- METER(S)
- MUFFLER(S)
- OIL PAN W/ OIL FILTER
- RADIATOR
- REAR HUB
- REFLECTORS (CANADA ONLY)
- SEAT
- SHIFT LEVER(S)
- STARTER MOTOR
- STEERING WHEEL
- SUN TOP
- SUSPENSION - FRONT
- SUSPENSION - REAR
- SUSPENSION - SHOCK ABSORBER(S)
- TAILLIGHT(S)
- THROTTLE BODY
- TRANSMISSION
- VALVE(S)
- WHEELS - TIRES
