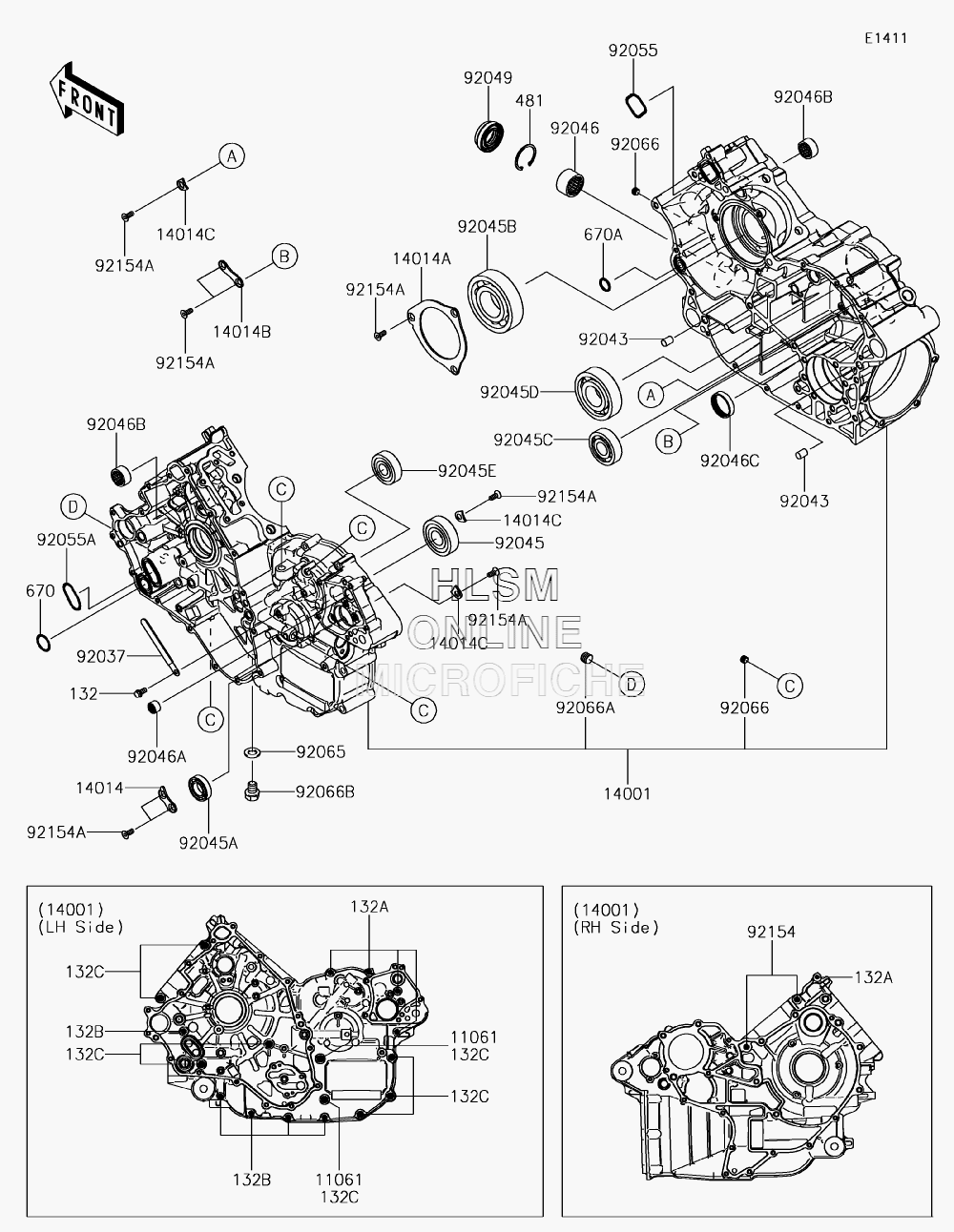

CRANKCASE для Kawasaki TERYX4 LE (KRT800GKF) - 2019 года выпуска
-
№АртикулНазвание
-
1106111061-0727 GASKET,8.2X15GASKET,8.2X15
-
132132BA0612 BOLT-FLANGED-SMALL,6X12BOLT-FLANGED-SMALL,6X12
-
132A132BD0640 BOLT-FLANGED-SMALL,6X40BOLT-FLANGED-SMALL,6X40
-
132B132BD0655 BOLT-FLANGED-SMALL,6X55BOLT-FLANGED-SMALL,6X55
-
132C132BD0875 BOLT-FLANGED-SMALL,8X75BOLT-FLANGED-SMALL,8X75
-
1400114001-0655 SET-CRANKCASESET-CRANKCASE
-
1401414014-0553 PLATE-POSITIONPLATE-POSITION
-
14014A14014-0554 PLATE-POSITIONPLATE-POSITION
-
14014B14014-0555 PLATE-POSITIONPLATE-POSITION
-
14014C14014-0557 PLATE-POSITIONPLATE-POSITION
-
481481J3700 CIRCLIP-TYPE-C,37MMCIRCLIP-TYPE-C,37MM
-
670670B2022 O RING,22MMO RING,22MM
-
670A670D2016 O RING,16MMO RING,16MM
-
9203792037-1993 CLAMPCLAMP
-
9204392043-1506 PIN,10X14PIN,10X14
-
9204592045-0704 BEARING-BALL,63/22LUABEARING-BALL,63/22LUA
-
92045A92045-0705 BEARING-BALL,6904BEARING-BALL,6904
-
92045B92045-0706 BEARING-BALL,6308YA3-T2C3BEARING-BALL,6308YA3-T2C3
-
92045C92045-0743 BEARING-BALL,TMB304LUABEARING-BALL,TMB304LUA
-
92045D92045-1364 BEARING-BALL,63/32C3BEARING-BALL,63/32C3
-
92045E92045-1389 BEARING-BALL,6303LUABEARING-BALL,6303LUA
-
9204692046-0022 BEARING-NEEDLEBEARING-NEEDLE
-
92046A92046-0034 BEARING-NEEDLE,HK1210FMBEARING-NEEDLE,HK1210FM
-
92046B92046-0048 BEARING-NEEDLE,BA13178ZE01BEARING-NEEDLE,BA13178ZE01
-
92046C92046-1221 BEARING-NEEDLE,7E-HKS33X38X8BEARING-NEEDLE,7E-HKS33X38X8
-
9204992049-0739 SEAL-OIL,25X45X9.5SEAL-OIL,25X45X9.5
-
9205592055-0723 RING-O,33X2.6RING-O,33X2.6
-
92055A92055-0724 RING-O,31.2X2.4RING-O,31.2X2.4
-
9206592065-097 GASKET,12X22X2GASKET,12X22X2
-
9206692066-0863 PLUG,PT1/8X7PLUG,PT1/8X7
-
92066A92066-1035 PLUG,BREATHERPLUG,BREATHER
-
92066B92066-1174 PLUG,OIL DRAIN,12X15PLUG,OIL DRAIN,12X15
-
9215492154-0835 BOLT,FLANGED,8X95BOLT,FLANGED,8X95
-
92154A92154-1821 BOLT,TORX,6X11.7BOLT,TORX,6X11.7
