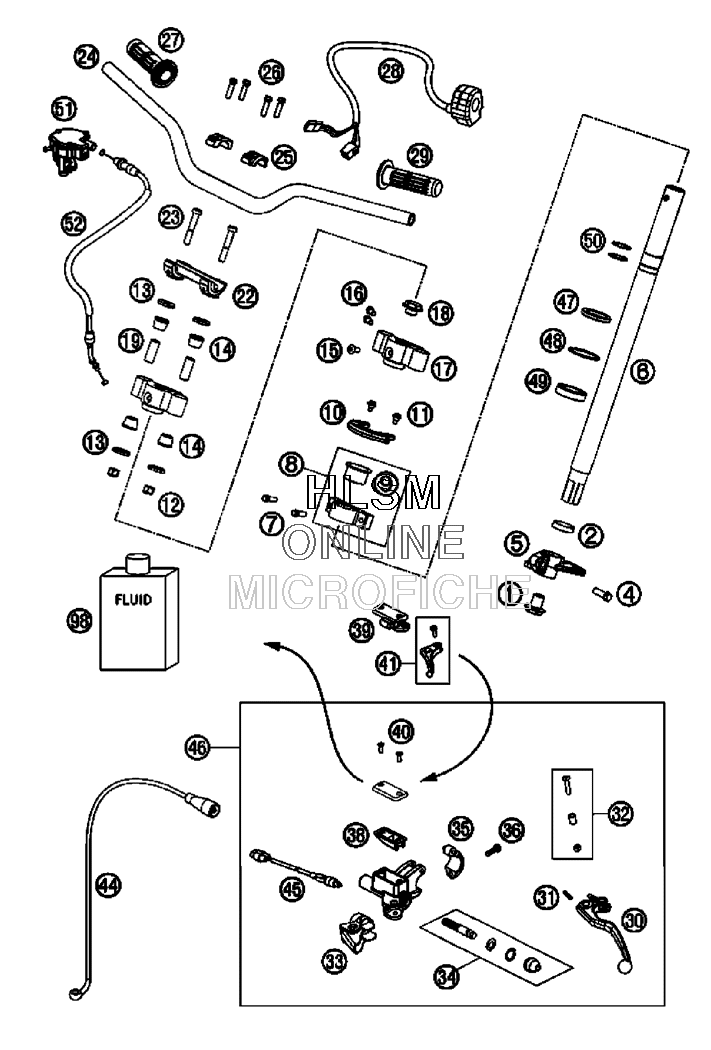

HANDLEBAR - CONTROLS для Ktm 525 XC - 2008 года выпуска
-
№АртикулНазвание
-
183001033051 STEERING HEAD SCREW M20X1,5STEERING HEAD SCREW M20X1,5
-
283001033052 WASHER F. STEERING BEARINGWASHER F. STEERING BEARING
-
40015100303 HH COLLAR SCREW M10X30HH COLLAR SCREW M10X30
-
583001033050 STEERING LEVERSTEERING LEVER
-
683001033000 STEERING COLUMNSTEERING COLUMN
-
70025080256 HH COLLAR SCREW M8X25HH COLLAR SCREW M8X25
-
883001035044 BEARING BLOCK WITH BEARINGBEARING BLOCK WITH BEARING
-
983001035050 SLIDE BEARING W.C. JFM-3539-26SLIDE BEARING W.C. JFM-3539-26
-
1083001069000 CABLE GUIDECABLE GUIDE
-
1159001092050 SPECIAL SCREW M6X12,5SPECIAL SCREW M6X12,5
-
120985100003 SELF LOCKING NUT DIN0985-M10SELF LOCKING NUT DIN0985-M10
-
1383001042000 BUCKETBUCKET
-
1483001040000 RUBBER BUSHRUBBER BUSH
-
1554610052000 SPROCKET SCREW-AH M8X20SPROCKET SCREW-AH M8X20
-
160015080203 HH COLLAR SCREW M 8X20HH COLLAR SCREW M 8X20
-
1783001034008 HANDLE BAR BRIDGEHANDLE BAR BRIDGE
-
1854801036000 STEER.HEAD SCREW M20X1,5STEER.HEAD SCREW M20X1,5
-
1983001041000 SPACER TUBE 10.2X16X39SPACER TUBE 10.2X16X39
-
2259001039100 HANDLEBAR SUPPORT 28MMHANDLEBAR SUPPORT 28MM
-
230012100606 AH SCREW DIN6912-M10X60AH SCREW DIN6912-M10X60
-
2483002001000 HANDLEBAR ATVHANDLEBAR ATV
-
2559001038200 HANDLEBAR CLAMPHANDLEBAR CLAMP
-
260025080306 HH COLLAR SCREW M8X30HH COLLAR SCREW M8X30
-
2783002021002 HANDLE BAR GRIP ATV R/SHANDLE BAR GRIP ATV R/S
-
2883011070000 LEFT HANDLE SWITCHLEFT HANDLE SWITCH
-
2983002021001 HANDLE BAR GRIP ATV L/SHANDLE BAR GRIP ATV L/S
-
3060002031000 CLUTCH LEVER LONG CPL.CLUTCH LEVER LONG CPL.
-
3159002035000 SPRING FOR CLUTCH LEVERSPRING FOR CLUTCH LEVER
-
3250302038000 LEVER SCREW CPL. 125-200LEVER SCREW CPL. 125-200
-
3350302037000 PROTECT.CAP FOR LEVER PERCHPROTECT.CAP FOR LEVER PERCH
-
3459002032000 REP.KIT PISTON 9,5MM RAC.REP.KIT PISTON 9,5MM RAC.
-
3550302030150 CLAMP WITH PINCLAMP WITH PIN
-
360015060203 HH COLLAR SCREW M 6X20HH COLLAR SCREW M 6X20
-
3850302034000 RUBBER FOR RESERVOIRRUBBER FOR RESERVOIR
-
3959002033000 COVER HYD.CLUTCH RACINGCOVER HYD.CLUTCH RACING
-
400965040123 FLAT HEAD SCREW DIN0965-M 4X12FLAT HEAD SCREW DIN0965-M 4X12
-
4159002047000 LEVER CPL. RACINGLEVER CPL. RACING
-
4483032063000 CLUTCH PIPECLUTCH PIPE
-
4558411049100 CLUTCH SWITCHCLUTCH SWITCH
-
4683002030000 MASTER CYLINDER CPL.MASTER CYLINDER CPL.
-
470760385570 SHAFT SEAL RING 38,5X55X7SHAFT SEAL RING 38,5X55X7
-
480472055200 CIRCLIP DIN0472-55X2CIRCLIP DIN0472-55X2
-
490625060061 BALL BEARING 6006/32-2RS1BALL BEARING 6006/32-2RS1
-
500770320015 O-RING 32,00X1,50 VITONO-RING 32,00X1,50 VITON
-
5183002022000 THUMB THROTTLETHUMB THROTTLE
-
5283002091000 THROTTLE CABLE ATVTHROTTLE CABLE ATV
-
9850302036200 OIL FOR HYD. CLUTCH 75MLOIL FOR HYD. CLUTCH 75ML
