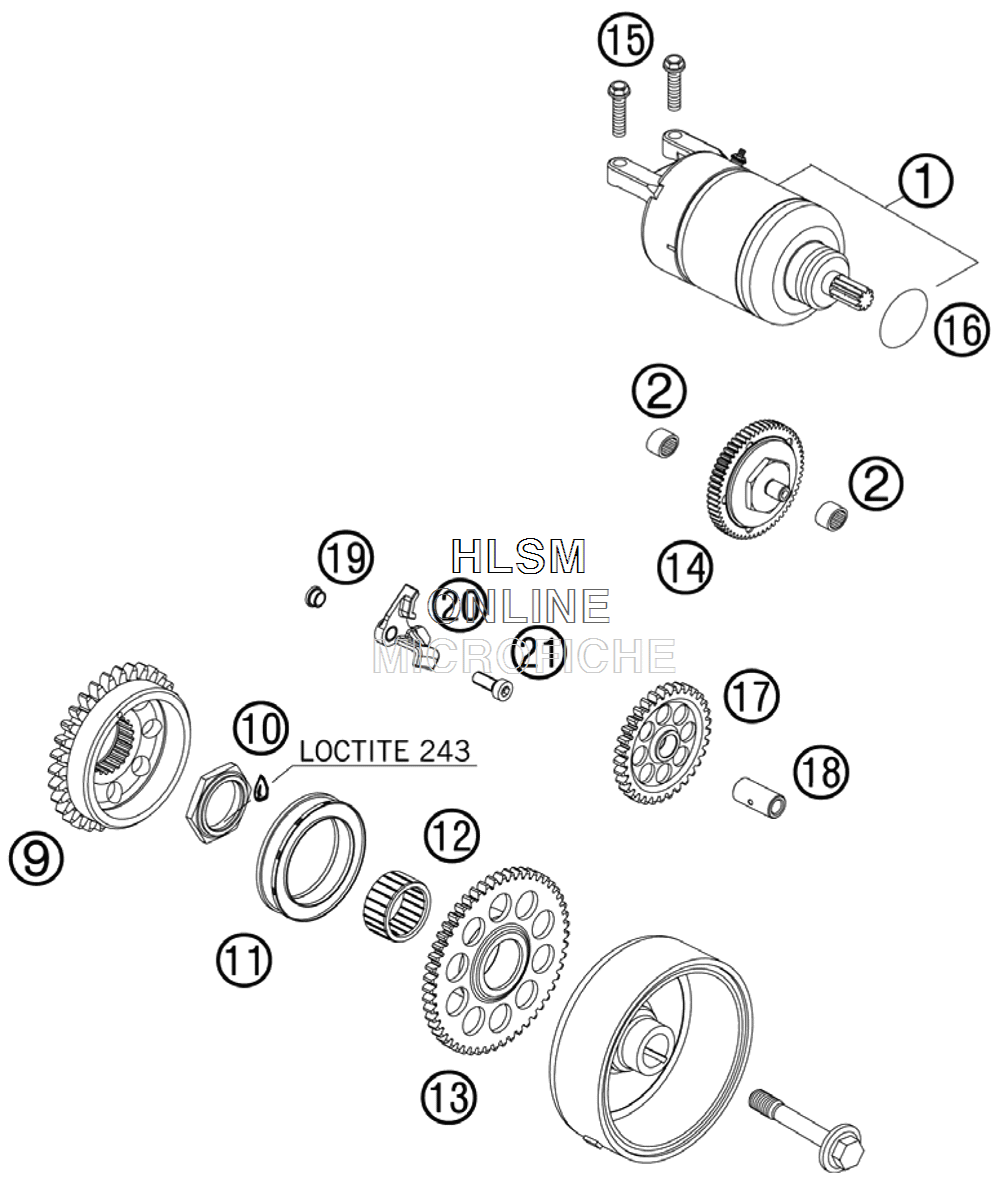

ELECTRIC STARTER для Ktm 450 SX F - 2009 года выпуска
-
№АртикулНазвание
-
177340001000 E-STARTER ENGINE CPL.E-STARTER ENGINE CPL.
-
20618081210 NEEDLE BUSH HK 0810 DIN 618NEEDLE BUSH HK 0810 DIN 618
-
977330055160 DRIVE WHEEL AGZR KS Z=32DRIVE WHEEL AGZR KS Z=32
-
1077330029000 COLLAR NUT M27X1COLLAR NUT M27X1
-
11H25015301 FREE WHEEL CLUTCH MECHANISMFREE WHEEL CLUTCH MECHANISM
-
120405253216 NEEDLE BEAR. K25X32X16NEEDLE BEAR. K25X32X16
-
1377340015100 STARTING GEAR Z=52STARTING GEAR Z=52
-
1477340016100 TORQUE LIMITER CPL.TORQUE LIMITER CPL.
-
150025060256 HH COLLAR SCREW M6X25 TX30HH COLLAR SCREW M6X25 TX30
-
160770250030 O-RING 25,00X3,00 NBR 70O-RING 25,00X3,00 NBR 70
-
1777340022100 INTERMEDIATE STARTING GEARINTERMEDIATE STARTING GEAR
-
1877340028000 BEARING BOLTBEARING BOLT
-
1983540097050 SUPPORTING SLEEVESUPPORTING SLEEVE
-
2083540097000 STOP DISK FOR STARTER WHEELSTOP DISK FOR STARTER WHEEL
-
210984060163 AH SCREW DIN6912-M 6X16AH SCREW DIN6912-M 6X16
