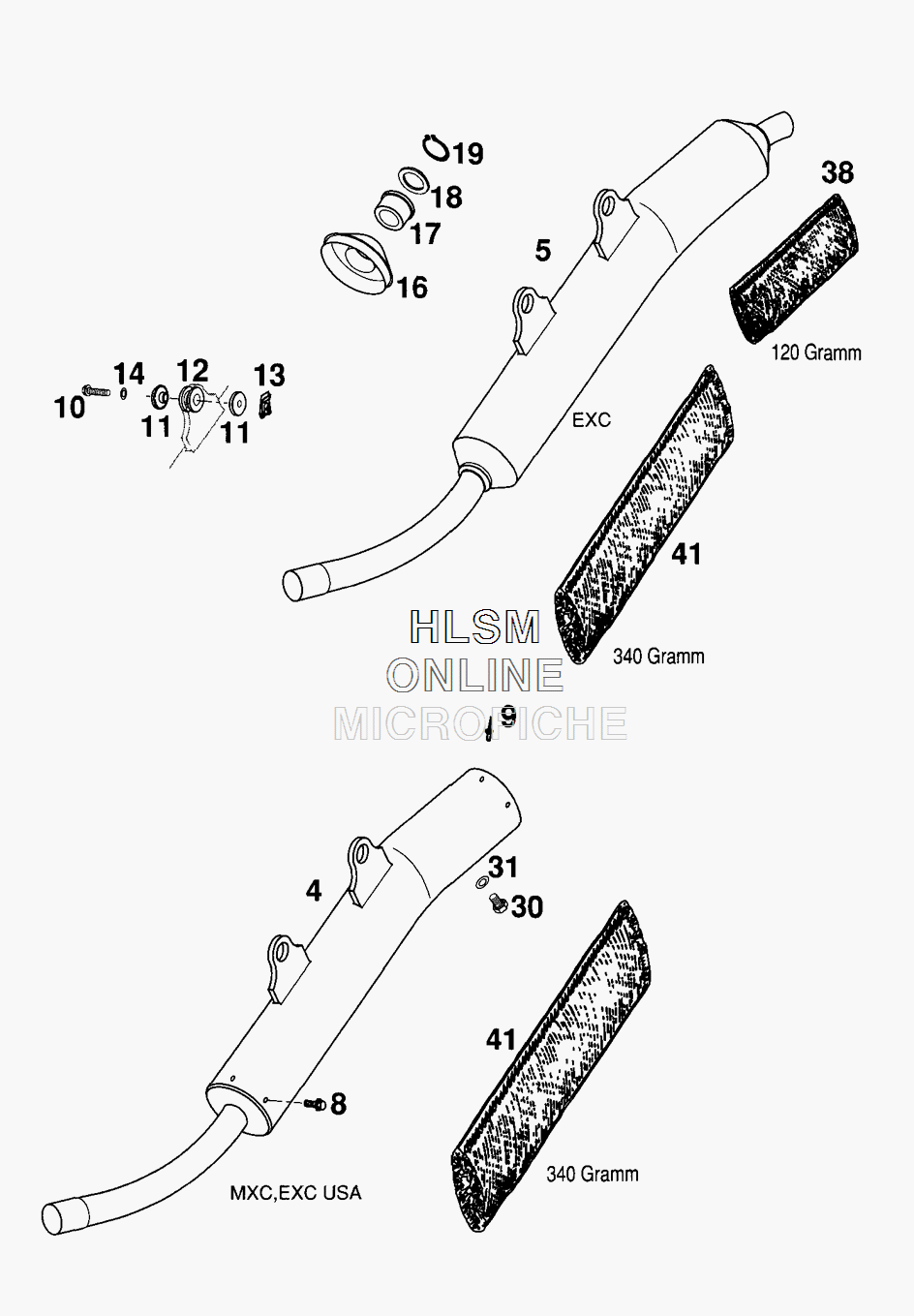

EXHAUST SILENCER для Ktm 200 EXC - 2000 года выпуска
-
№АртикулНазвание
-
452305082100 EXHAUST SILENCER (WITH SPARK ARRESTOR)EXHAUST SILENCER (WITH SPARK ARRESTOR)
-
552305083100 EXHAUST SILENCER ("KTM EGS1")EXHAUST SILENCER ("KTM EGS1")
-
80009050103 SPECIAL SCREW M 5,0X10SPECIAL SCREW M 5,0X10
-
90011481030 RIVET 4,8X10,3 ALURIVET 4,8X10,3 ALU
-
100015060303 HH COLLAR SCREW M 6X30 WS=8HH COLLAR SCREW M 6X30 WS=8
-
1154605069000 BUSHING 7,5X12X28X7,8 '96BUSHING 7,5X12X28X7,8 '96
-
1254605068000 EXHAUST BRACKET RUBBER SLACKEXHAUST BRACKET RUBBER SLACK
-
1354603048100 RANGE CHANGE METAL NUT M6RANGE CHANGE METAL NUT M6
-
140137060000 SPRING WASHER DIN0137-B 6SPRING WASHER DIN0137-B 6
-
1654605379549 SILENCER CAP PLASTICSILENCER CAP PLASTIC
-
1654705179070 SILENCER END CAP ALUSILENCER END CAP ALU
-
1754605379028 SEAL RING VITON D=28MMSEAL RING VITON D=28MM
-
1854605079047 WASHER D=28 MMWASHER D=28 MM
-
190471280151 CIRCLIP DIN0471-28X1,5 NIROCIRCLIP DIN0471-28X1,5 NIRO
-
300910100003 PLUG DIN0910-M10X1PLUG DIN0910-M10X1
-
3158038032010 CU-SEAL RING DIN7603-10X14X1CU-SEAL RING DIN7603-10X14X1
-
3858005078120 STUFFING YARN 120 GRAMMSTUFFING YARN 120 GRAMM
-
4158005078340 STUFFING YARN 340 GRAMMSTUFFING YARN 340 GRAMM
