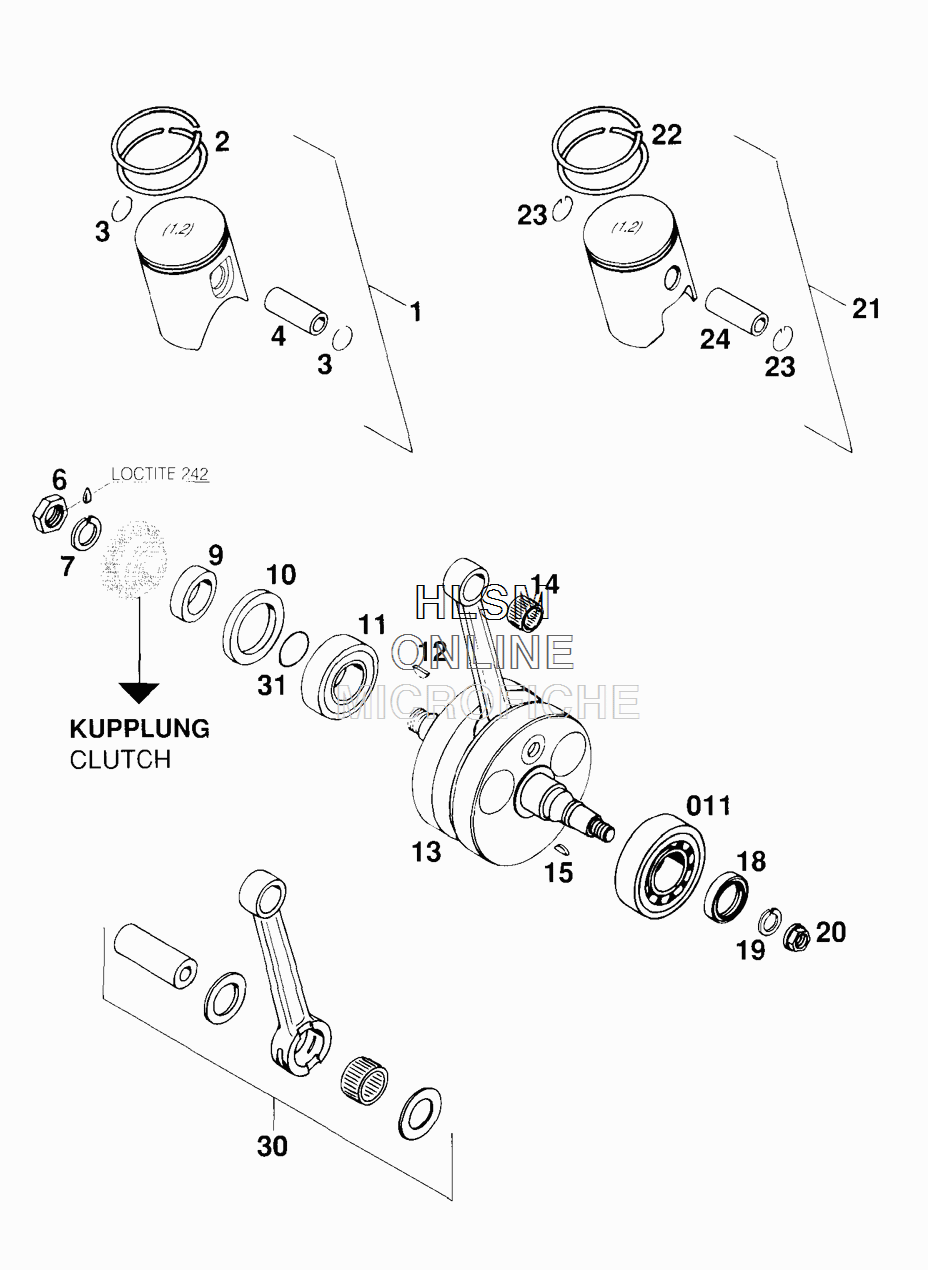

CRANKSHAFT W/ PISTON для Ktm 250 MXC - 2000 года выпуска
-
№АртикулНазвание
-
154630207000I PISTON I CPL. 66,4MM (ONE RING)PISTON I CPL. 66,4MM (ONE RING)
-
154630207000II PISTON II CPL. 66,4MM (ONE RING)PISTON II CPL. 66,4MM (ONE RING)
-
154630207100I PISTON 1 CPL. 66,4MM (TWO RINGS)PISTON 1 CPL. 66,4MM (TWO RINGS)
-
154630207100II PISTON II CPL. 66,4MM (TWO RINGS)PISTON II CPL. 66,4MM (TWO RINGS)
-
254630232000 SQUARE RING 66,4MMSQUARE RING 66,4MM
-
354030074000 WIRE LOCK RING C18X1,5WIRE LOCK RING C18X1,5
-
454630233000 PISTON PIN 18X55,8PISTON PIN 18X55,8
-
454730033000 PISTON PIN 18 X 48 (380)PISTON PIN 18 X 48 (380)
-
654630029000 HEX.NUT H M18X1,5 (LEFT)HEX.NUT H M18X1,5 (LEFT)
-
758132072000 LOCK WASHER VSK 18LOCK WASHER VSK 18
-
954630016400 SPACER SLEEVE 28X38X11,5SPACER SLEEVE 28X38X11,5
-
100760385273 SHAFT SEAL RING 38X52X7BTSLSHAFT SEAL RING 38X52X7BTSL
-
110625622064 BALL BEARING 62206.803107BALL BEARING 62206.803107
-
01156530123100 CYLIND.ROLLER BEARING NJ207NSKCYLIND.ROLLER BEARING NJ207NSK
-
126946005 WOODRUFF KEY 5X6,5 HARDEDWOODRUFF KEY 5X6,5 HARDED
-
1354630218100 CRANKSHAFT STR.72 "250"CRANKSHAFT STR.72 "250"
-
1454430034000 NEEDLE BEARING KBK 18X22X20NEEDLE BEARING KBK 18X22X20
-
150888030050 WOODRUFF KEY DIN6888-3X5X13WOODRUFF KEY DIN6888-3X5X13
-
180760253570 SHAFT SEAL RING 25X35X7 BTSLSHAFT SEAL RING 25X35X7 BTSL
-
1950230029012 LOCKING RING VSK 12LOCKING RING VSK 12
-
2049030021000 COLLAR NUT M12X1 (RIGHT)COLLAR NUT M12X1 (RIGHT)
-
2254630332000 SQUARE RING 72,0X1,25 300 CCSQUARE RING 72,0X1,25 300 CC
-
2354330074000 WIRE LOCK RING SKA 18WIRE LOCK RING SKA 18
-
2454630033000 PISTON PIN 18 X 44PISTON PIN 18 X 44
-
3054630215000 CONROD REP KIT 250 L=129MMCONROD REP KIT 250 L=129MM
-
310770250015 O-RING 25,00X1,50 NBR 70O-RING 25,00X1,50 NBR 70
