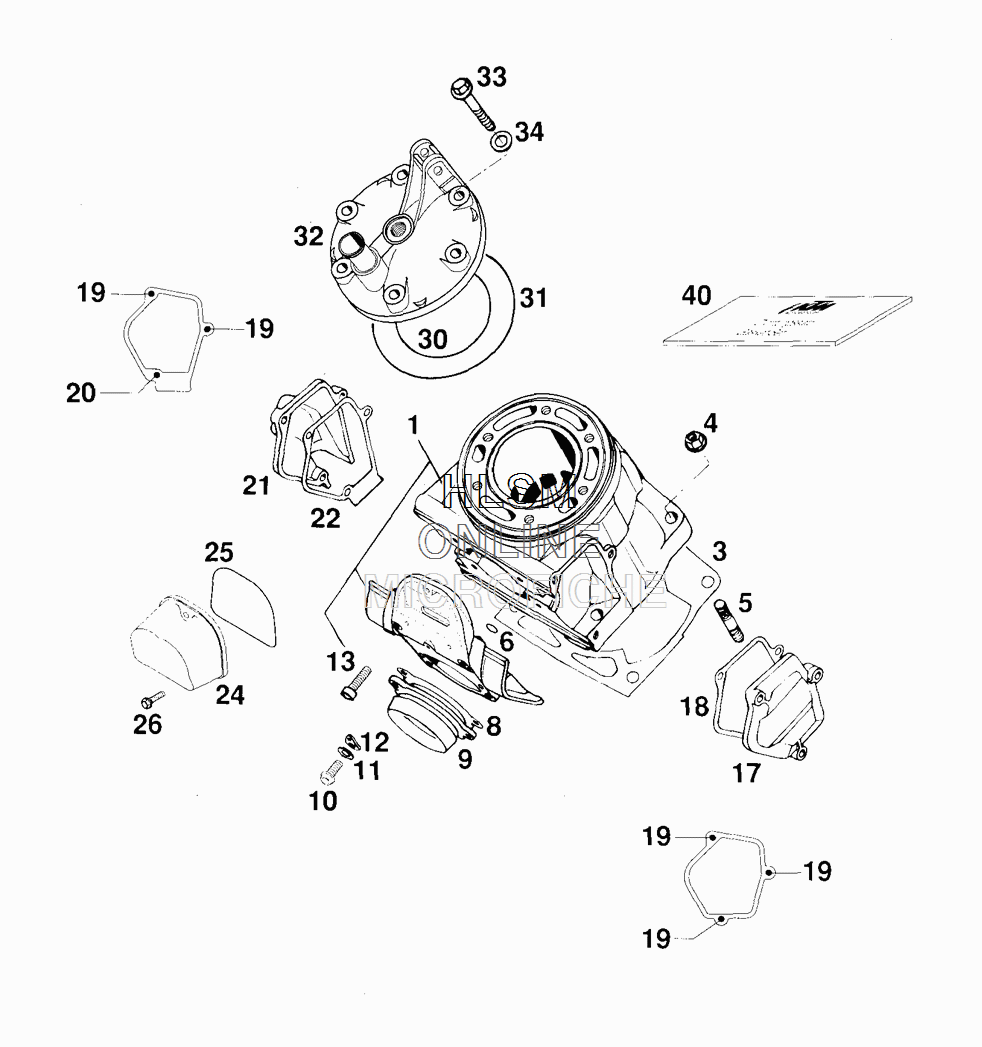

CYLINDER для Ktm 300 EXC - 2000 года выпуска
-
№АртикулНазвание
-
154630405144 CYLINDER CPL.W.FLANGECYLINDER CPL.W.FLANGE
-
354630030102 CYLINDER BASE GASKET 0,20MMCYLINDER BASE GASKET 0,20MM
-
354630030104 CYLINDER BASE GASKET 0,40MMCYLINDER BASE GASKET 0,40MM
-
354630030105 CYLINDER BASE GASKET 0,50MMCYLINDER BASE GASKET 0,50MM
-
354630030107 CYLINDER BASE GASKET 0,75MMCYLINDER BASE GASKET 0,75MM
-
454630044000 COLLAR NUT M10 WS=13COLLAR NUT M10 WS=13
-
50835100351 STUD DIN0835-M10X35STUD DIN0835-M10X35
-
60770116241 O-RING 11,3 X2,4 SILICONO-RING 11,3 X2,4 SILICON
-
854630046000 EXHAUST FLANGE GASKETEXHAUST FLANGE GASKET
-
954605073000 EXHAUST FLANGEEXHAUST FLANGE
-
100015060163 HH COLLAR SCREW M 6X16 WS=8HH COLLAR SCREW M 6X16 WS=8
-
110137060000 SPRING WASHER DIN0137-B 6SPRING WASHER DIN0137-B 6
-
1251005074000 RETAINING PLATERETAINING PLATE
-
130912060303 AH SCREW DIN0912-M 6X30AH SCREW DIN0912-M 6X30
-
1754637105000 CONTROL COVER (LEFT)CONTROL COVER (LEFT)
-
1854637106000 GASKET FOR SIDE COVERGASKET FOR SIDE COVER
-
190912050123 AH SCREW DIN0912-M 5X12AH SCREW DIN0912-M 5X12
-
200912050303 AH SCREW DIN0912-M 5X30AH SCREW DIN0912-M 5X30
-
2154637005000 CONTROL COVER (RIGHT)CONTROL COVER (RIGHT)
-
2254637006100 GASKET FOR CONTROL COVERGASKET FOR CONTROL COVER
-
2454737010000 FLANGE COVER KTCFLANGE COVER KTC
-
250770690020 O-RING 69,00X2,00 NBR 70O-RING 69,00X2,00 NBR 70
-
260015050203 HH COLLAR SCREW M 5X20 WS=8HH COLLAR SCREW M 5X20 WS=8
-
300770780021 O-RING 78,00X2,00 SILICONO-RING 78,00X2,00 SILICON
-
300770840021 O-RING 84,00X2,00 SILICONO-RING 84,00X2,00 SILICON
-
310770114020 O-RING 114,00X2,00 SILICONO-RING 114,00X2,00 SILICON
-
3254630306600 CYLINDER HEAD "3001"CYLINDER HEAD "3001"
-
3356530079000 SPECIAL SCREW M8X42-10.9SPECIAL SCREW M8X42-10.9
-
3456530080000 CU-SEAL RING 8 X 16 X 1CU-SEAL RING 8 X 16 X 1
-
4054630097000 GASKET SET CYLINDERGASKET SET CYLINDER
