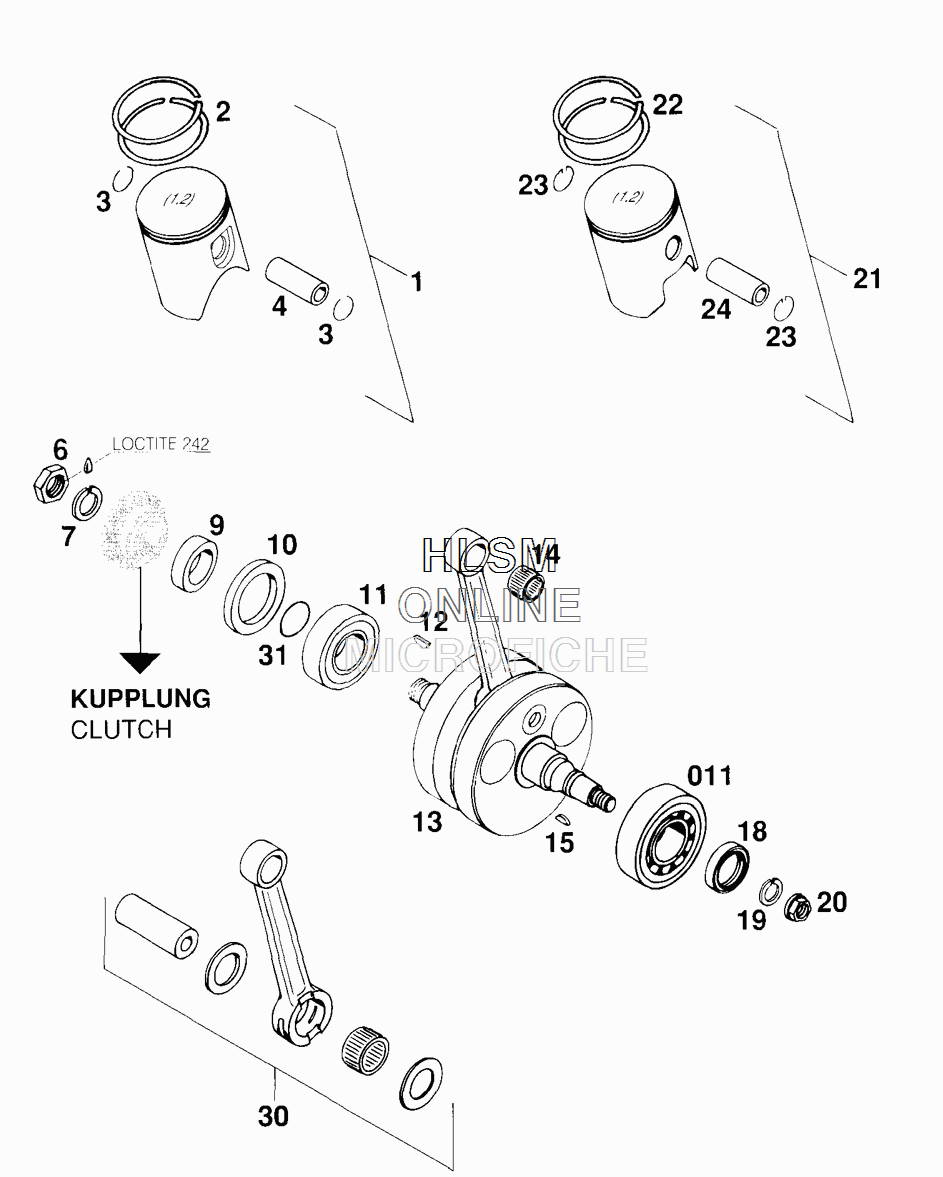

CRANKSHAFT W/ PISTON для Ktm 380 EXC - 2000 года выпуска
-
№АртикулНазвание
-
154730007300I PISTON I CPL. 78,0MMPISTON I CPL. 78,0MM
-
154730007300II PISTON II CPL. 78,0MMPISTON II CPL. 78,0MM
-
254730032000 SQUARE R. 78,0X1,25SQUARE R. 78,0X1,25
-
354030074000 WIRE LOCK RING C18X1,5WIRE LOCK RING C18X1,5
-
454730033000 PISTON PIN 18 X 48PISTON PIN 18 X 48
-
654630029000 HEX.NUT M18X1,5 (LEFT)HEX.NUT M18X1,5 (LEFT)
-
758132072000 LOCK WASHER VSK 18LOCK WASHER VSK 18
-
954630016400 SPACER SLEEVE 28X38X11,5SPACER SLEEVE 28X38X11,5
-
100760385273 SHAFT SEAL RING 38X52X7BTSLSHAFT SEAL RING 38X52X7BTSL
-
110625622064 BALL BEARING 62206.803107BALL BEARING 62206.803107
-
01156530123100 CYLIND.ROLLER BEARING NJ207NSKCYLIND.ROLLER BEARING NJ207NSK
-
126946005 WOODRUFF KEY 5X6,5 HARDEDWOODRUFF KEY 5X6,5 HARDED
-
1354730018500 CRANKSHAFT STROKE 77 "380"CRANKSHAFT STROKE 77 "380"
-
1454430034000 NEEDLE BEARING KBK 18X22X20NEEDLE BEARING KBK 18X22X20
-
150888030050 WOODRUFF KEY DIN6888-3X5X13WOODRUFF KEY DIN6888-3X5X13
-
180760253570 SHAFT SEAL RING 25X35X7 BTSLSHAFT SEAL RING 25X35X7 BTSL
-
1950230029012 LOCKING RING VSK 12LOCKING RING VSK 12
-
2049030021000 COLLAR NUT M12X1 (RIGHT)COLLAR NUT M12X1 (RIGHT)
-
2154630307400II PISTON 11 CPL. 72,0MMPISTON 11 CPL. 72,0MM
-
2254630332000 SQUARE RING 72,0X1,25 300 CCSQUARE RING 72,0X1,25 300 CC
-
2354330074000 WIRE LOCK RING SKA 18WIRE LOCK RING SKA 18
-
2454630033000 PISTON PIN 18 X 44PISTON PIN 18 X 44
-
3054730015000 CONR.REPKIT 360/380 135MMCONR.REPKIT 360/380 135MM
-
310770250015 O-RING 25,00X1,50 NBR 70O-RING 25,00X1,50 NBR 70
