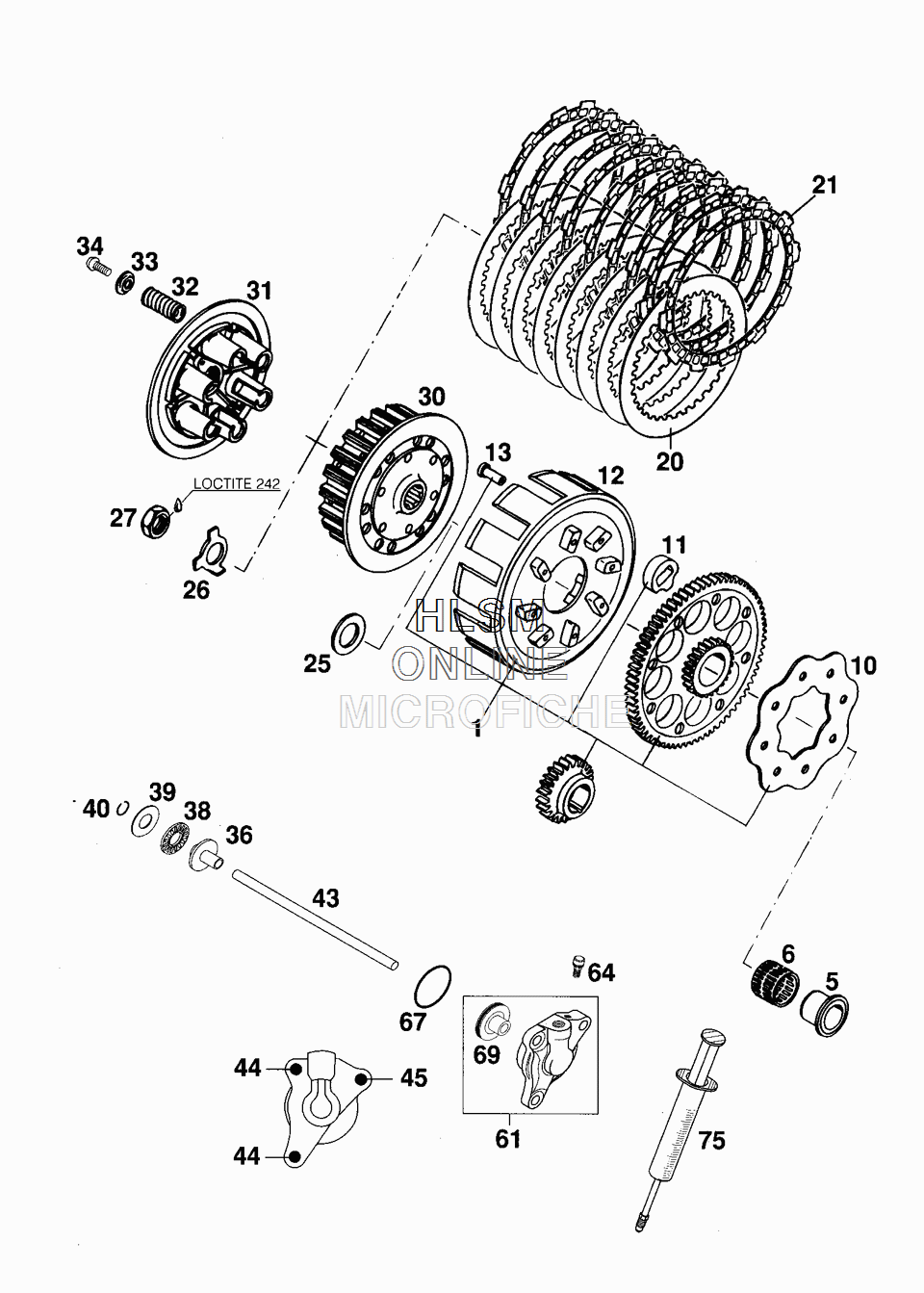

CLUTCH для Ktm 380 SX - 2000 года выпуска
-
№АртикулНазвание
-
154632001372 OUTER CLUTCH HUB 72T PRIM. 26TOUTER CLUTCH HUB 72T PRIM. 26T
-
550332070000 INNER RING WITH COLLARINNER RING WITH COLLAR
-
656532095000 NEEDLE BEARING K26X30X22ZW KSENEEDLE BEARING K26X30X22ZW KSE
-
1058132028000 RETAINING PLATERETAINING PLATE
-
1158132026000 DAMPING ELEMENTDAMPING ELEMENT
-
1254632001200 OUTER CLUTCH HUB LOOSEOUTER CLUTCH HUB LOOSE
-
130733060150 CLUTCH RIVET DIN7338- 6X15CLUTCH RIVET DIN7338- 6X15
-
2054632012000 STEEL DISK 1,2 MMSTEEL DISK 1,2 MM
-
2154632011300 LINING DISK 2,7 MMLINING DISK 2,7 MM
-
2557532013000 SUPPORTWASHER 22,2X35X3 HARDE.SUPPORTWASHER 22,2X35X3 HARDE.
-
2656532018000 LOCK WASHERLOCK WASHER
-
270936181505 HEXAGON NUT DIN0936-M18X1,5 R.HEXAGON NUT DIN0936-M18X1,5 R.
-
3054632002200 INNER CLUTCH HUBINNER CLUTCH HUB
-
3154632003000 PRESSURE CAP 250-380 '98PRESSURE CAP 250-380 '98
-
3254632080000 CLUTCH SPRING 2,5X43 8,5WCLUTCH SPRING 2,5X43 8,5W
-
3358132081000 SPRING RETAINER 6,2 X 20 X 3,2SPRING RETAINER 6,2 X 20 X 3,2
-
340015060163 HH COLLAR SCREW M 6X16 WS=8HH COLLAR SCREW M 6X16 WS=8
-
3650332054051 PRESSURE PIECEPRESSURE PIECE
-
3854637097200 AXIAL NEEDLE BEARING 1226 AXKAXIAL NEEDLE BEARING 1226 AXK
-
3954637098200 AXIAL WASHER AS1226 12X26X1AXIAL WASHER AS1226 12X26X1
-
3954637098300 AXIAL WASHER 12,5X25,8X1,5AXIAL WASHER 12,5X25,8X1,5
-
400993012000 CIRCLIP DIN7993A-RW12CIRCLIP DIN7993A-RW12
-
4354732054000 PUSH ROD L=199,8MMPUSH ROD L=199,8MM
-
440015060163 HH COLLAR SCREW M 6X16 WS=8HH COLLAR SCREW M 6X16 WS=8
-
450015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
6154732061044 CYLINDER CPL.CYLINDER CPL.
-
6454732064000 BLEEDER SCREW WITH CAPBLEEDER SCREW WITH CAP
-
670770300015 O-RING 30,00X1,50O-RING 30,00X1,50
-
6954632066000 PISTON W. O-RINGPISTON W. O-RING
-
7550329050000 VENT INJEKTION HYDR. CLUTCHVENT INJEKTION HYDR. CLUTCH
