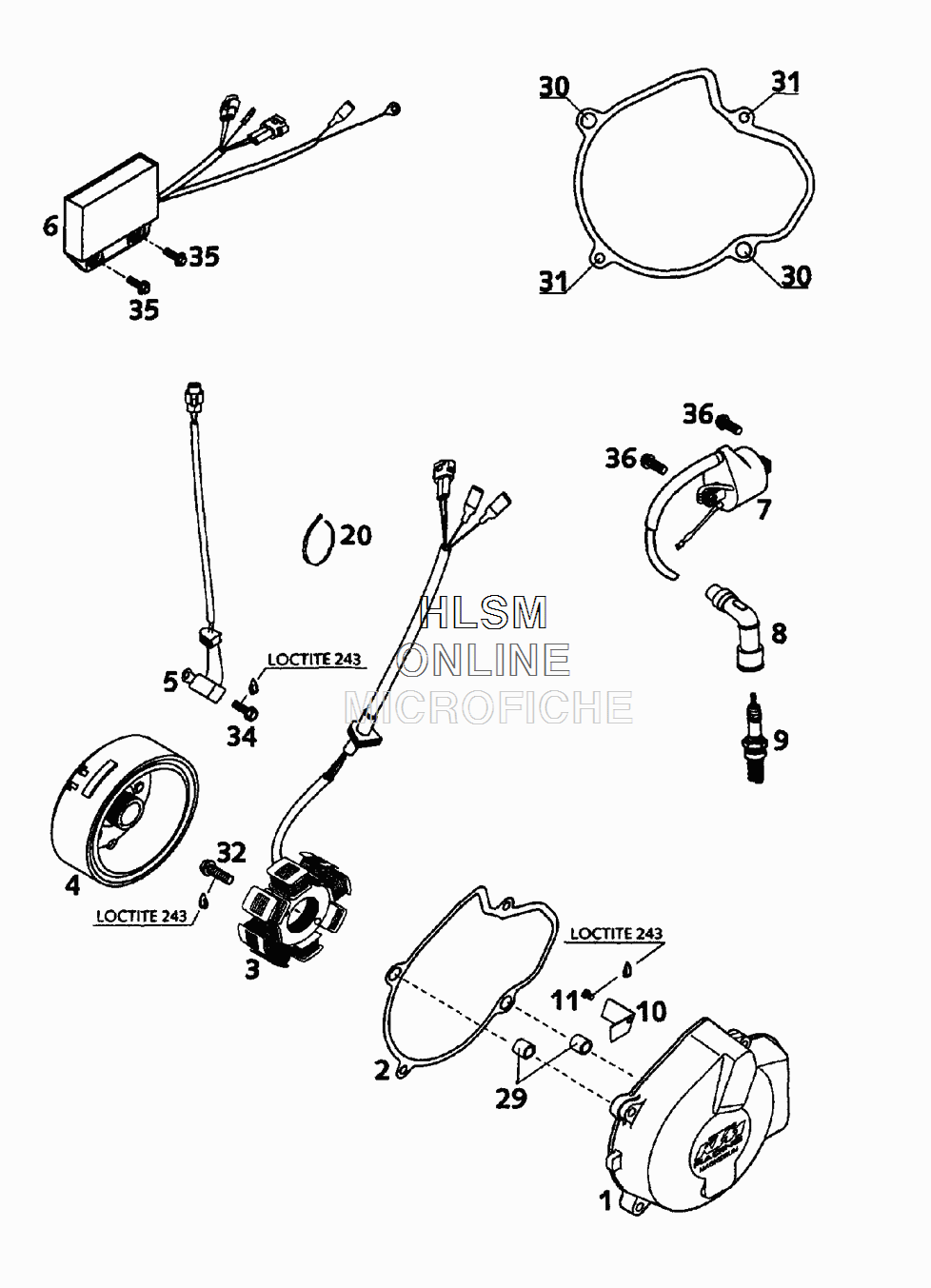

IGNITION SYSTEM (KOKUSAN 4K3B) для Ktm 400 EXC Racing - 2000 года выпуска
-
№АртикулНазвание
-
159030002000 IGNITION COVER 4K3B (PULVERIZED)IGNITION COVER 4K3B (PULVERIZED)
-
259030040000 IGNITION COVER GASKET 0,5MMIGNITION COVER GASKET 0,5MM
-
359039104000 STATOR CPL. 4K3BSTATOR CPL. 4K3B
-
459039105000 FLYWHEEL 4K3B "FP8016"FLYWHEEL 4K3B "FP8016"
-
559039034000 PULSER COIL KOKUSAN 4K3-A/BPULSER COIL KOKUSAN 4K3-A/B
-
659039031100 GIGITALBOX KOKUSAN 4K3-A/BGIGITALBOX KOKUSAN 4K3-A/B
-
759039006000 IGNITIONCOIL KOKUSAN 4K3-A/BIGNITIONCOIL KOKUSAN 4K3-A/B
-
859039090000 SPARK PLUG CONNECT.VD05FGSPARK PLUG CONNECT.VD05FG
-
959039093000 SPARK PLUG CR8EKSPARK PLUG CR8EK
-
1059030002050 SUPPORT FOR WIRESUPPORT FOR WIRE
-
110084040063 CYL.HEAD SCREW DIN0084-M 4X 6ACYL.HEAD SCREW DIN0084-M 4X 6A
-
2044011076100 CABLE TIE 100MMCABLE TIE 100MM
-
2949030090000 DOWEL 9,8 X 7 X 10DOWEL 9,8 X 7 X 10
-
300015060353 HH COLLAR SCREW M 6X35 WS=8HH COLLAR SCREW M 6X35 WS=8
-
310015060303 HH COLLAR SCREW M 6X30 WS=8HH COLLAR SCREW M 6X30 WS=8
-
320015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
340015050163 HH COLLAR SCREW M 5X16 WS=8HH COLLAR SCREW M 5X16 WS=8
-
350014060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
360015060163 HH COLLAR SCREW M 6X16 WS=8HH COLLAR SCREW M 6X16 WS=8
