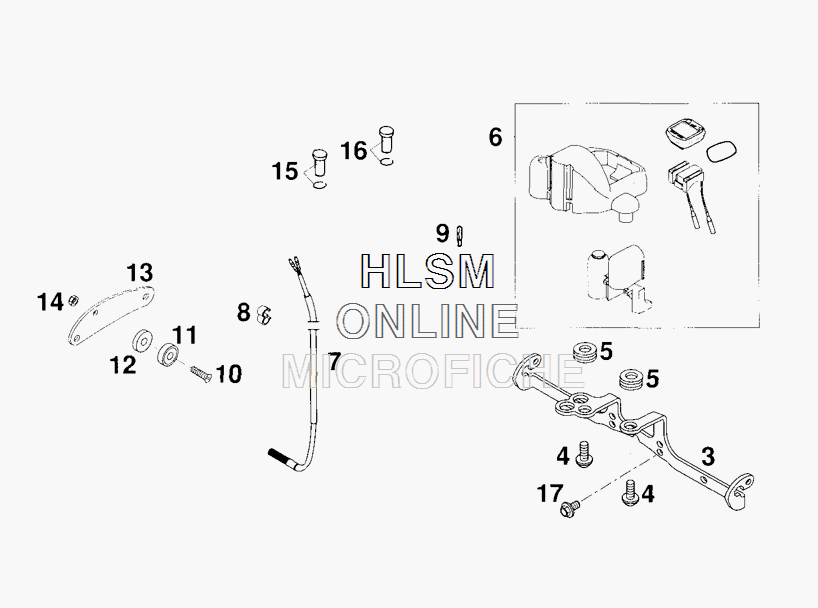

SPEEDOMETER для Ktm 400 LC4 SXC - 2000 года выпуска
-
№АртикулНазвание
-
350314061100 SPEEDOMET BRACKET (EGS BLACK)SPEEDOMET BRACKET (EGS BLACK)
-
40016050121 PLASTIC SCREW KA50X12 PT1411 (BLACK)PLASTIC SCREW KA50X12 PT1411 (BLACK)
-
531008060000 RUBBER SLEEVE D=8MM OPENRUBBER SLEEVE D=8MM OPEN
-
650314069044 SPEEDOM.SIGMASPORTSPEEDOM.SIGMASPORT
-
758314069151 CABLE FOR SIGMACABLE FOR SIGMA
-
855011022100 CLAMP 6/8MM (BLACK)CLAMP 6/8MM (BLACK)
-
949111425000 BULB 12V 1,2W (W2X4,6D)BULB 12V 1,2W (W2X4,6D)
-
100963040203 FLAT HEAD SCREW DIN0963-M 4X20FLAT HEAD SCREW DIN0963-M 4X20
-
1158314069050 MAGNET LOOSEMAGNET LOOSE
-
1250232050001 STEEL WASHER 6X17X3STEEL WASHER 6X17X3
-
1358312099073 BRACKET FOR TRIPPMASTER SENSORBRACKET FOR TRIPPMASTER SENSOR
-
140985040003 SELF LOCKING NUT DIN0985-M 4SELF LOCKING NUT DIN0985-M 4
-
1558011021300 H.BEAM INDICATOR (LIGHT BLUE)H.BEAM INDICATOR (LIGHT BLUE)
-
1658011024300 FLASHER INDICATOR LIGHT GREEN)FLASHER INDICATOR LIGHT GREEN)
-
170014060103 HH COLLAR SCREW M 6X10 WS=8HH COLLAR SCREW M 6X10 WS=8
