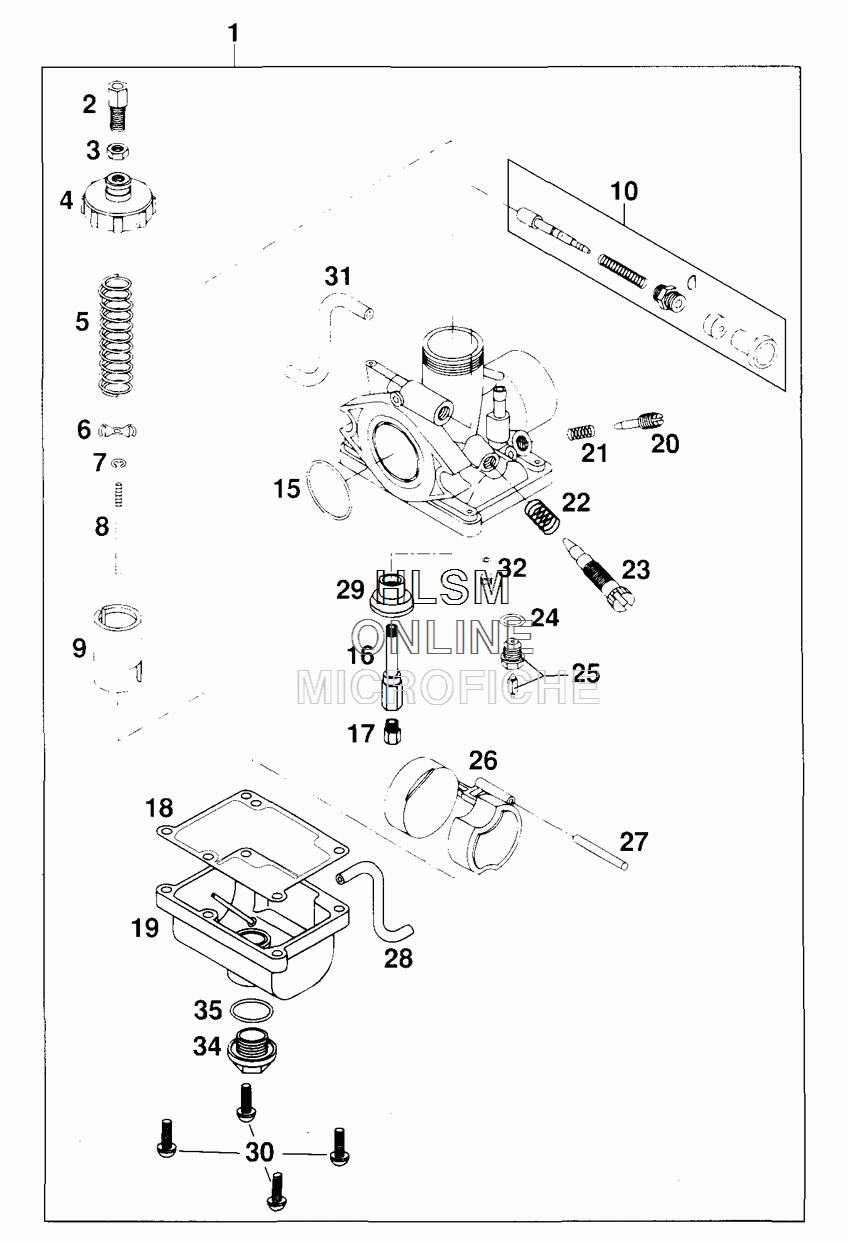

CARBURETOR для Ktm 50 Sr Adventure - 2000 года выпуска
-
№АртикулНазвание
-
145031001344 CARBURETOR MIKUNI VM20-364CARBURETOR MIKUNI VM20-364
-
245031025000 ADJUSTING SCREW M6X0,75ADJUSTING SCREW M6X0,75
-
345031026000 HH-NUT M6X0,75HH-NUT M6X0,75
-
445031027100 CARBURETOR COVER VM20-352CARBURETOR COVER VM20-352
-
545031030100 THROTTLE VALVE SPRING VM20-352THROTTLE VALVE SPRING VM20-352
-
645031009100 RETAINING SPRING VM20-352 MIK.RETAINING SPRING VM20-352 MIK.
-
745031045000 SPRINGSPRING
-
845031034100 JET NEEDLE 4113 MIKUNIJET NEEDLE 4113 MIKUNI
-
945031035100 THROTTLE VALVE 23MM MIK. NO.2THROTTLE VALVE 23MM MIK. NO.2
-
1045031048144 STARTER KNOB CPL. VM20STARTER KNOB CPL. VM20
-
1545031039100 O-RING 24X2,5 MIKUNIO-RING 24X2,5 MIKUNI
-
1645031021200 NEEDLE JET N-6NEEDLE JET N-6
-
1745031023100 MAIN JET 100 MIKUNIMAIN JET 100 MIKUNI
-
1745031023105 MAIN JET 105 MIKUNIMAIN JET 105 MIKUNI
-
1745031023110 MAIN JET 110 MIKUNIMAIN JET 110 MIKUNI
-
1745031023115 MAIN JET 115 MIKUNIMAIN JET 115 MIKUNI
-
1745031023120 MAIN JET 120 MIKUNIMAIN JET 120 MIKUNI
-
1845031010100 GASKET FLOAT BOWLGASKET FLOAT BOWL
-
1945031011200 FLOAT CHAMBER VM20-364FLOAT CHAMBER VM20-364
-
2045031017000 AIR REG. SCREWAIR REG. SCREW
-
2145031015000 SPRINGSPRING
-
2245031015100 SPRING MIKUNISPRING MIKUNI
-
2345031019100 IDLE ADJ. SCREW VM20IDLE ADJ. SCREW VM20
-
2445031018000 SEAL RINGSEAL RING
-
2545031020000 NEEDLE VALVENEEDLE VALVE
-
2645031006100 FLOAT VM20-352 MIKUNIFLOAT VM20-352 MIKUNI
-
2745031008000 PIN 2,5X27PIN 2,5X27
-
2852031137001 PVC-HOSE 3 X 6 MMPVC-HOSE 3 X 6 MM
-
2946031074000 BUFFLEBUFFLE
-
3045031014016 LINTIL HEAD SCREW M4X16 (SET)LINTIL HEAD SCREW M4X16 (SET)
-
3152031137001 PVC-HOSE 3 X 6 MMPVC-HOSE 3 X 6 MM
-
3245031007100 IDLING JET VM20-352 MIKUNIIDLING JET VM20-352 MIKUNI
-
3446031014000 PLUG SCREW M16 WS=17PLUG SCREW M16 WS=17
-
3546031043000 O-RING 17,5X1,4O-RING 17,5X1,4
