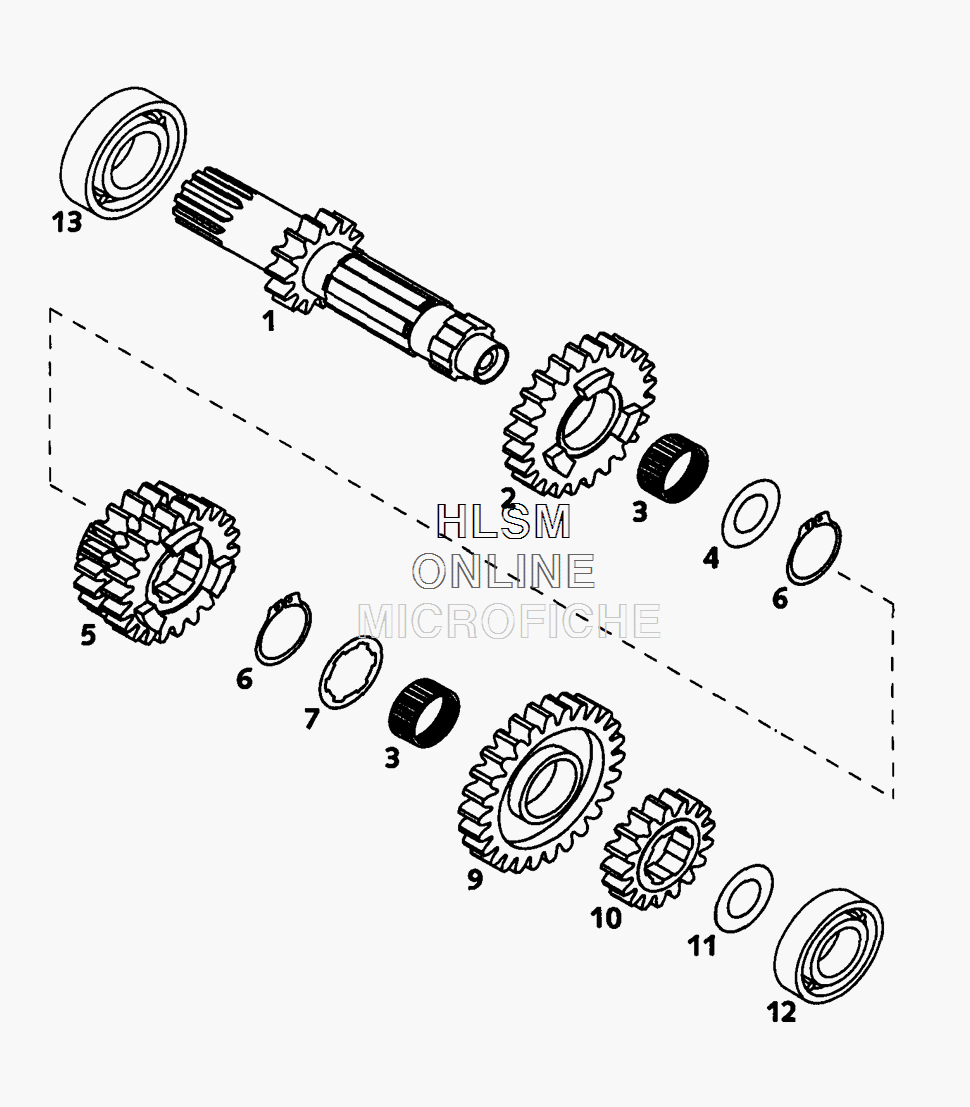

TRANSMISSION I - 6 GEAR для Ktm 520 SX Racing - 2000 года выпуска
-
№АртикулНазвание
-
159033001000 MAIN SHAFT 14-ZMAIN SHAFT 14-Z
-
259033005034 IDLER GEAR 5.G 24-T "34"IDLER GEAR 5.G 24-T "34"
-
356533099000 NEEDLE BEAR. K22X26X13 DIVIDEDNEEDLE BEAR. K22X26X13 DIVIDED
-
459033031000 STOP DISK 25,2X32X1,5STOP DISK 25,2X32X1,5
-
559033003032 SLIDING GEAR 3/4.G 22/19-T"32"SLIDING GEAR 3/4.G 22/19-T"32"
-
60471250120 CIRCLIPDIN0471-25X1,2CIRCLIPDIN0471-25X1,2
-
759033030000 STOP DISK 25,2X32X1,5STOP DISK 25,2X32X1,5
-
959033006035 IDLER GEAR 6.G 26-T "35"IDLER GEAR 6.G 26-T "35"
-
1059033002021 SOLID GEAR 2.G 17-T .21"SOLID GEAR 2.G 17-T .21"
-
116227430 THRUST WASHER 17,2X30X1THRUST WASHER 17,2X30X1
-
120625062034 BALL BEARING 6203 C3 NTNBALL BEARING 6203 C3 NTN
-
130625062054 BALL BEARING 6205 C3 NTNBALL BEARING 6205 C3 NTN
