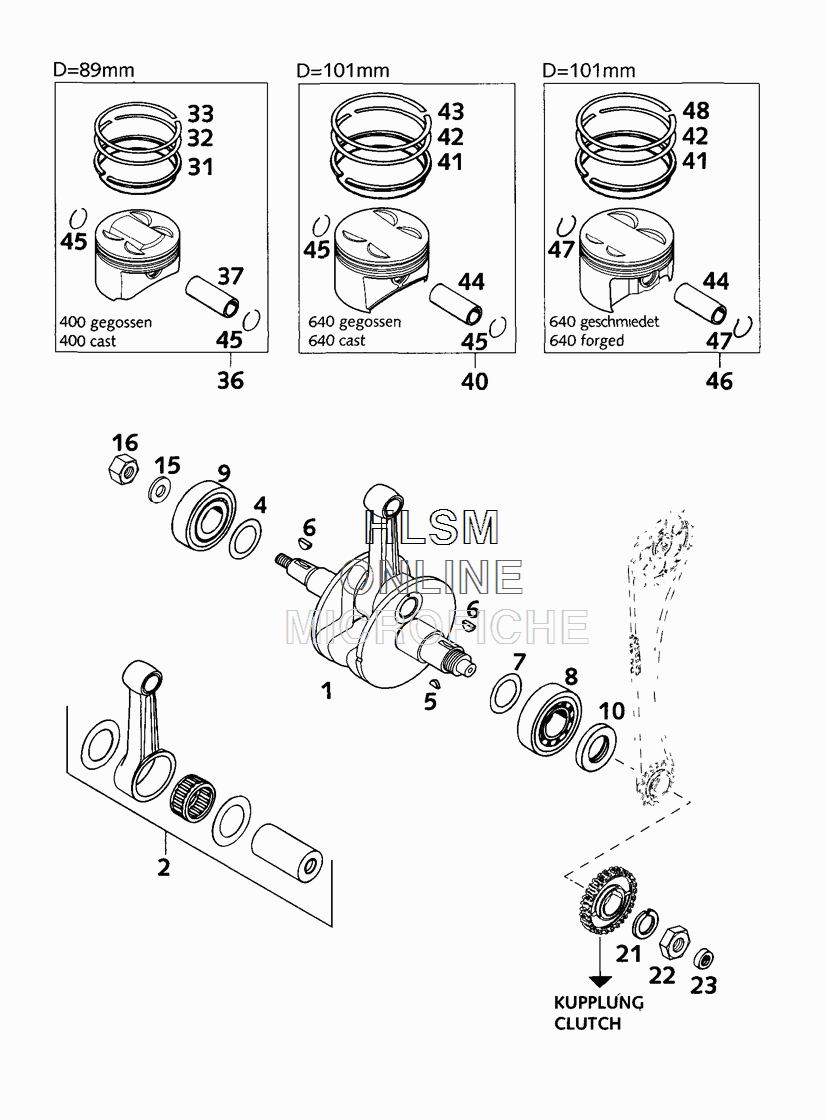

CRANKSHAFT W/ PISTON для Ktm LC4 640 Adventure R - 2000 года выпуска
-
№АртикулНазвание
-
158430018100 CRANKSHAFT CPL. (STROKE 78MM)CRANKSHAFT CPL. (STROKE 78MM)
-
258330015044 CONNECTING ROD REPAIR SET LC4CONNECTING ROD REPAIR SET LC4
-
456530081000 SHIM WASHER 36X48X0,10SHIM WASHER 36X48X0,10
-
456530081100 SHIM WASHER 36X48X0,15SHIM WASHER 36X48X0,15
-
456530081300 SHIM WASHER 36X48X0,30SHIM WASHER 36X48X0,30
-
50888030050 WOODRUFF KEY DIN6888-3X5X13WOODRUFF KEY DIN6888-3X5X13
-
66946005 WOODRUFF KEY 5X6,5 HARDEDWOODRUFF KEY 5X6,5 HARDED
-
756030081000 THRUST WASHER 30X42X0,1THRUST WASHER 30X42X0,1
-
756030081100 THRUST WASHER 30X42X0,15THRUST WASHER 30X42X0,15
-
756030081200 THRUST WASHER 30X42X0,3THRUST WASHER 30X42X0,3
-
858030082000 CYL.ROLLER BEARING NJ 306 C3CYL.ROLLER BEARING NJ 306 C3
-
956530123100 CYLIND.ROLLER BEARING NJ207NSKCYLIND.ROLLER BEARING NJ207NSK
-
1558330095000 STEEL WASHER 16 X 30 X 3STEEL WASHER 16 X 30 X 3
-
1658430028000 HEX NUT M16X1,25 (LEFT)HEX NUT M16X1,25 (LEFT)
-
2158030019000 LOCKING RING VSK 20LOCKING RING VSK 20
-
230760122270 SHAFT SEAL RING 12 X 22 X 7 BSHAFT SEAL RING 12 X 22 X 7 B
-
3157530031000 OIL SCRAPER RING 89MMOIL SCRAPER RING 89MM
-
3257530132000 TAPERED COMPR.PISTON RING 89MMTAPERED COMPR.PISTON RING 89MM
-
3357530032000 RECTANGULAR RING 89MMRECTANGULAR RING 89MM
-
3657730007000I PISTON I 89MM CPL. CASTPISTON I 89MM CPL. CAST
-
3657730007000II PISTON II 89MM CPL. CASTPISTON II 89MM CPL. CAST
-
3757730033000 PISTON BOLT 22X13X54,2PISTON BOLT 22X13X54,2
-
4058330007500I PISTON I 101MM CPL. CASTPISTON I 101MM CPL. CAST
-
4058330007500II PISTON II 101MM CPL. CASTPISTON II 101MM CPL. CAST
-
4158330031300 OIL SCRAPER RING 101X2,5OIL SCRAPER RING 101X2,5
-
4258330932100 TAP.COMPR.PISTON RING 101X1,25TAP.COMPR.PISTON RING 101X1,25
-
4358330832000 RECTANGULAR RING 101X1,25RECTANGULAR RING 101X1,25
-
4458330833000 PISTON PIN 22 X 13 X 60PISTON PIN 22 X 13 X 60
-
4558030074100 CIRCLIP C 22 X 1,5CIRCLIP C 22 X 1,5
-
4658430007000I PISTON I CPL.101MM FORGEDPISTON I CPL.101MM FORGED
-
4658430007000II PISTON II 101MM FORGEDPISTON II 101MM FORGED
-
4758430074000 CIRCLIP 22 X 1,6CIRCLIP 22 X 1,6
-
4858430032000 L-RING 101X93,5X1,5L-RING 101X93,5X1,5
