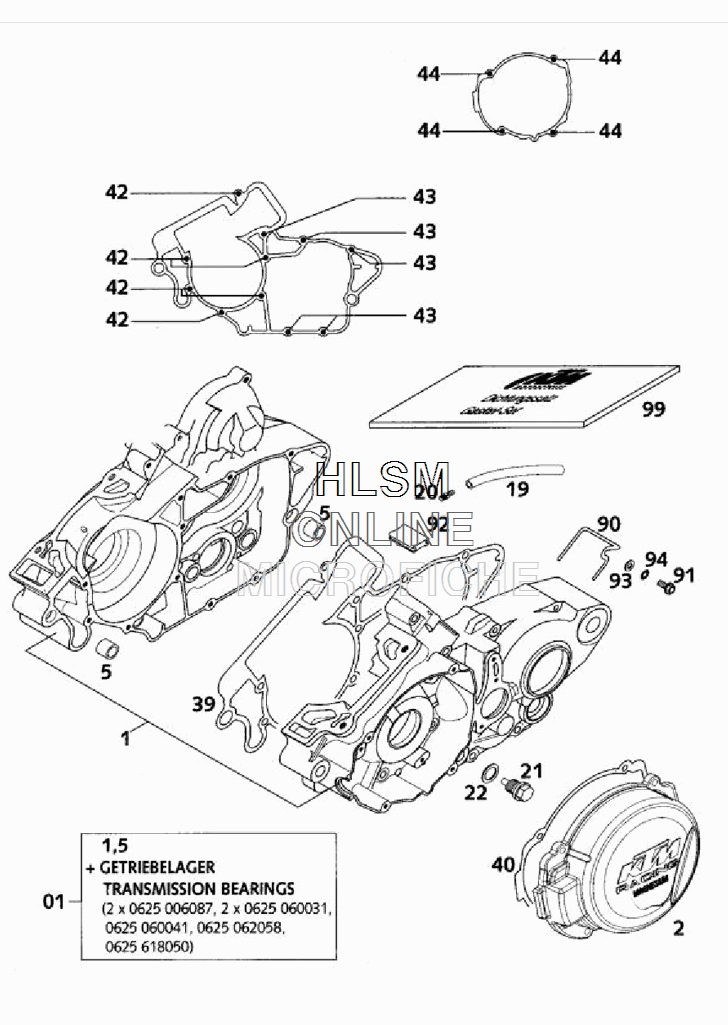

ENGINE CASE для Ktm 125 EXC - 2001 года выпуска

№

Артикул

Название
01

52330000044 ENGINE CASE CPL.W.TRAN.BEAR'

ENGINE CASE CPL.W.TRAN.BEAR'

0 ₽
2

5033000220098 IGNIT.COVER

IGNIT.COVER

8 560 ₽
5

54630027000 DOWEL BUSHING 13,8X11X12

DOWEL BUSHING 13,8X11X12

1 580 ₽
19

55007016001 PVC-HOSE 7X10 PER METER

PVC-HOSE 7X10 PER METER

1 640 ₽
20

58336020090 VACUUM CONNECTION M6X1

VACUUM CONNECTION M6X1

1 520 ₽
21

58030021000 OILDRAIN PLUG W.MAGNET M12X1,5

OILDRAIN PLUG W.MAGNET M12X1,5

2 800 ₽
22

58038022000 CU-SEAL RING DIN7603-12X18X1,5

CU-SEAL RING DIN7603-12X18X1,5

440 ₽
39

50330039000 ENGINE CASE GASKET 0,5MM

ENGINE CASE GASKET 0,5MM

3 740 ₽
40

50330040100 IGNITION COVER GASKET

IGNITION COVER GASKET

3 150 ₽
42

0015060503 HH COLLAR SCREW M 6X50 WS=8

HH COLLAR SCREW M 6X50 WS=8

640 ₽
43

0015060553 HH COLLAR SCREW M 6X55 WS=8

HH COLLAR SCREW M 6X55 WS=8

470 ₽
44

0015050163 HH COLLAR SCREW M 5X16 WS=8

HH COLLAR SCREW M 5X16 WS=8

410 ₽
90

50330090000 BRACKET FOR BREATHERTUBE

BRACKET FOR BREATHERTUBE

1 810 ₽
91

0015050123 HH COLLAR SCREW M 5X12 WS=8

HH COLLAR SCREW M 5X12 WS=8

500 ₽
92

50330092000 OIL GUARD GROMMET 25X31 '98

OIL GUARD GROMMET 25X31 '98

530 ₽
93

0125050003 WASHER DIN0125-A 5,0

WASHER DIN0125-A 5,0

150 ₽
94

0797050003 TOOTH LOCK WASH. DIN6797-J 5,3

TOOTH LOCK WASH. DIN6797-J 5,3

90 ₽
99

50330099000 GASKET SET

GASKET SET

74 910 ₽
