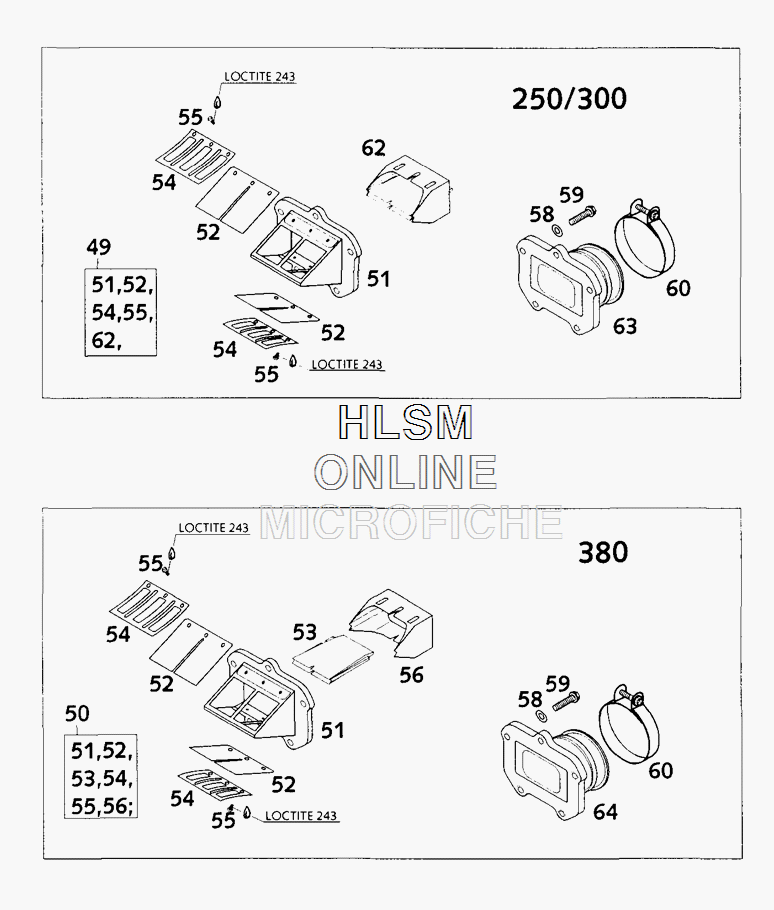

REED VALVE ASSY для Ktm 250 SX - 2001 года выпуска
-
№АртикулНазвание
-
4954630051544 REED VALVE ASSY CPL.REED VALVE ASSY CPL.
-
5054630051444 REED VALVE ASSY CPL.REED VALVE ASSY CPL.
-
5254730052040 REED VALVE CARBON 0,40MMREED VALVE CARBON 0,40MM
-
5350330054050 REED VALVE WINGREED VALVE WING
-
5454630053000 STOP PLATE TOPSTOP PLATE TOP
-
550084040083 CYL.HEAD SCREW DIN0084-M4X 8CYL.HEAD SCREW DIN0084-M4X 8
-
5650330054000 REED VALVE INSERTREED VALVE INSERT
-
580137060000 SPRING WASHER DIN0137-B 6SPRING WASHER DIN0137-B 6
-
590015060253 HH COLLAR SCREW M 6X25 WS=8HH COLLAR SCREW M 6X25 WS=8
-
6054330061000 CLAMP 52/12 GEMICLAMP 52/12 GEMI
-
6250330054100 REED VALVE INSERTREED VALVE INSERT
-
6354730050000 INTAKE FLANGEINTAKE FLANGE
-
6454630050000 INTAKE FLANGEINTAKE FLANGE
