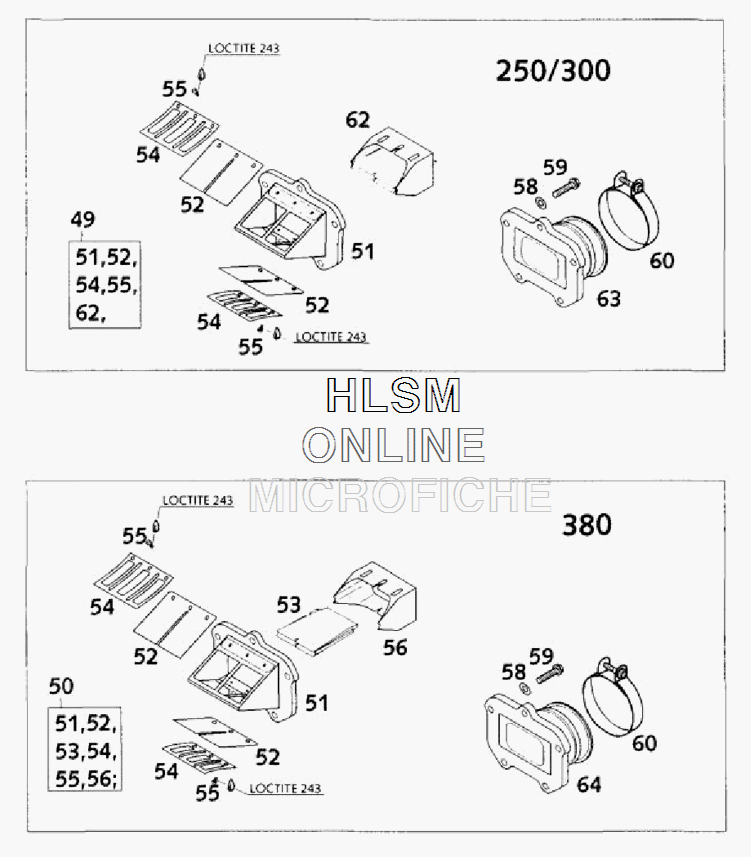

REED VALVE ASSY для Ktm 300 EXC - 2001 года выпуска
-
№АртикулНазвание
-
5054630051444 REED VALVE ASSY CPL.REED VALVE ASSY CPL.
-
5254730052040 REED VALVE CARBON 0,40MMREED VALVE CARBON 0,40MM
-
5454630053000 STOP PLATE TOPSTOP PLATE TOP
-
550084040083 CYL.HEAD SCREW DIN0084-M4X 8CYL.HEAD SCREW DIN0084-M4X 8
-
580137060000 SPRING WASHER DIN0137-B 6SPRING WASHER DIN0137-B 6
-
590015060253 HH COLLAR SCREW M 6X25 WS=8HH COLLAR SCREW M 6X25 WS=8
-
6054330061000 CLAMP 52/12 GEMICLAMP 52/12 GEMI
-
6250330054100 REED VALVE INSERTREED VALVE INSERT
-
6354730050000 INTAKE FLANGEINTAKE FLANGE
Все узлы модели:
- ACCESSORIES
- AIR FILTER BOX
- BRAKE CALIPER FRONT
- BRAKE CALIPER REAR
- CARBURETOR (PWK 38AG)
- CLUTCH
- CLUTCH COVER
- COOLING SYSTEM - VERSION 1
- COOLING SYSTEM - VERSION 2
- CRANKSHAFT W/ PISTON
- CYLINDER
- DECAL
- ENGINE CASE
- EXHAUST PIPE
- FLASHER - REAR LIGHT
- FRAME - SUB FRAME
- FRONT FORK
- FRONT LEGS
- FRONT WHEEL - MXC VERSION
- FRONT WHEEL - SX VERSION
- HAND BRAKE CYLINDER
- HANDLEBAR W/ CONTROLS
- HEADLIGHT
- IGNITION SYSTEM (KOKUSAN)
- KICKSTARTER
- MASK W/ FENDER
- REAR BRAKE CONTROL
- REAR WHEEL
- • REED VALVE ASSY
- SHIFTING MECHANISM
- SHOCK ABSORBER
- SIDE STAND
- SILENCER
- SPECIAL TOOL
- SPEEDOMETER FACOMSA
- SPEEDOMETER ODOMETER
- SPEEDOMETER SIGMA SPORT
- SWINGARM W/ CHAIN GUARD
- TANK - SEAT - COVER
- TRANSMISSION - COUNTER SHAFT
- TRANSMISSION - MAIN SHAFT
- TWIN VALVE CONTROL
- WIRING HARNESS (EURO/AUS)
- WIRING HARNESS (USA)
