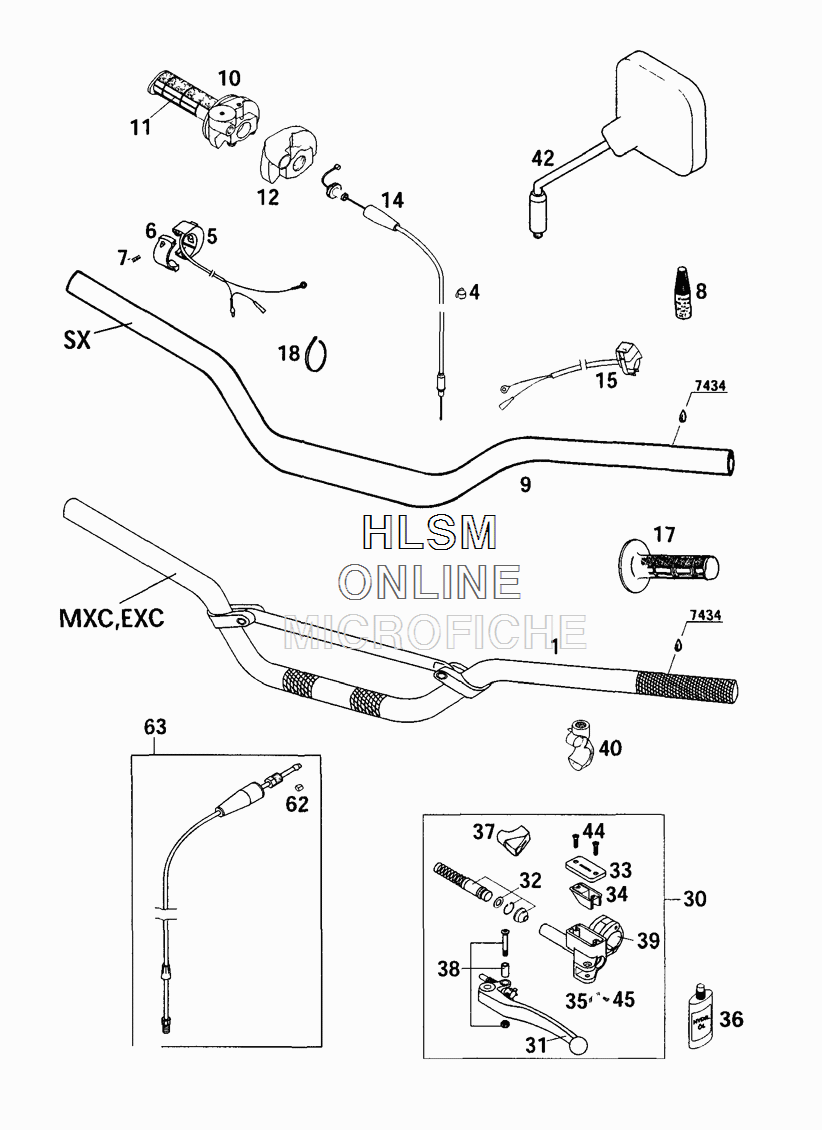

HANDLEBAR W/ CONTROLS для Ktm 300 MXC - 2001 года выпуска
-
№АртикулНазвание
-
150202001000 ALU-HANDLEBARALU-HANDLEBAR
-
457013072000 WIRING HOLDER 12MM 0210WIRING HOLDER 12MM 0210
-
550311074000 ENGINE STOP SWITCH CEV (EXC AUSTRALIA)ENGINE STOP SWITCH CEV (EXC AUSTRALIA)
-
650311074050 CLAMP ENGINE STOP SWITCHCLAMP ENGINE STOP SWITCH
-
70985040153 FLAT HEAD SCREW DIN7985-M 4X15FLAT HEAD SCREW DIN7985-M 4X15
-
86899791 GLUE CYANACRYLAT 7434GLUE CYANACRYLAT 7434
-
959002001000 HANDLEBAR SC,RACINGHANDLEBAR SC,RACING
-
1050302010000 THROTTLE TWIST GRIP CPL.THROTTLE TWIST GRIP CPL.
-
1150202003000 TWIST GRIP COVER DOMINO BLACKTWIST GRIP COVER DOMINO BLACK
-
1250302020000 PROTECTION COVERPROTECTION COVER
-
1450302091000 THROTTLE CABLE DOMINOTHROTTLE CABLE DOMINO
-
1550311089000 SHORT CIRCUIT BUTTONSHORT CIRCUIT BUTTON
-
1750202052000 FIXED GRIP DOMINO BLACKFIXED GRIP DOMINO BLACK
-
1844011276200 CABLE TIE 200 X 5MM T50 R/SFCABLE TIE 200 X 5MM T50 R/SF
-
3050302030100 MASTER CYL. CPL. (ZINKCOATED)MASTER CYL. CPL. (ZINKCOATED)
-
3150302031100 CLU.LEVER SHORT CPL. 2TCLU.LEVER SHORT CPL. 2T
-
3150302031000 CLUTCH LEVER CPL,CLUTCH LEVER CPL,
-
3250302032000 REPSATZ PISTON CLUT.HYDR.REPSATZ PISTON CLUT.HYDR.
-
3350302033100 COVER HYD.CLUTCH 2T (ZINKCOATED)COVER HYD.CLUTCH 2T (ZINKCOATED)
-
3450302034000 RUBBER FOR RESERVOIRRUBBER FOR RESERVOIR
-
3550302035000 SPRING PLATE FOR LEVERSPRING PLATE FOR LEVER
-
3650302036000 OIL FOR HYD.CLUTCH 50MLOIL FOR HYD.CLUTCH 50ML
-
3750302037000 PROTECT. CAP FOR LEVER PERCHPROTECT. CAP FOR LEVER PERCH
-
3850302038000 LEVER SCREW CPL.LEVER SCREW CPL.
-
3950302030150 CLAMP WITH PIN (ZINKCOATED)CLAMP WITH PIN (ZINKCOATED)
-
4059002044000 CLAMP MIRROR WITH PIN M10X1,25CLAMP MIRROR WITH PIN M10X1,25
-
4258012040000 REAR MIRROR L/SREAR MIRROR L/S
-
4258012140000 REAR MIRROR R/SREAR MIRROR R/S
-
440965040123 FLAT HEAD SCREW DIN0965-M 4X12FLAT HEAD SCREW DIN0965-M 4X12
-
450984030063 AH SCREW DIN7984-M 3X 6AH SCREW DIN7984-M 3X 6
-
6250332063050 SELF CUTTING RING HYDR.PIPESELF CUTTING RING HYDR.PIPE
-
6354732063000 PIPE KIT KPL. WITH CONNECTIONSPIPE KIT KPL. WITH CONNECTIONS
Все узлы модели:
- ACCESSORIES
- AIR FILTER BOX
- BRAKE CALIPER FRONT
- BRAKE CALIPER REAR
- CARBURETOR (PWK 38 AG)
- CLUTCH
- CLUTCH COVER
- COOLING SYSTEM
- CRANKSHAFT W/ PISTON
- CYLINDER
- DECAL
- ENGINE CASE
- EXHAUST PIPE
- FLASHER - REAR LIGHT
- FORK LEGS
- FRAME - SUB FRAME
- FRONT FORK
- FRONT WHEEL
- HAND BRAKE CYLINDER
- • HANDLEBAR W/ CONTROLS
- HEAD LIGHT
- IGNITION SYSTEM (KOKUSAN)
- KICKSTARTER
- MASK W/ FENDERS
- REAR BRAKE CONTROL
- REAR WHEEL
- REED VALVE ASSY
- SHIFTING MECHANISM
- SHOCK ABSORBER
- SIDE STAND
- SILENCER
- SPECIAL TOOL
- SPEEDOMETER FACOMSA
- SPEEDOMETER ODOMETER
- SPEEDOMETER SIGMA SPORT
- SWINGARM W/ CHAIN GUARD
- TANK - SEAT - COVER
- TRANSMISSION - COUNTERSHAFT
- TRANSMISSION - MAIN SHAFT
- TWIN VALVE CONTROL
