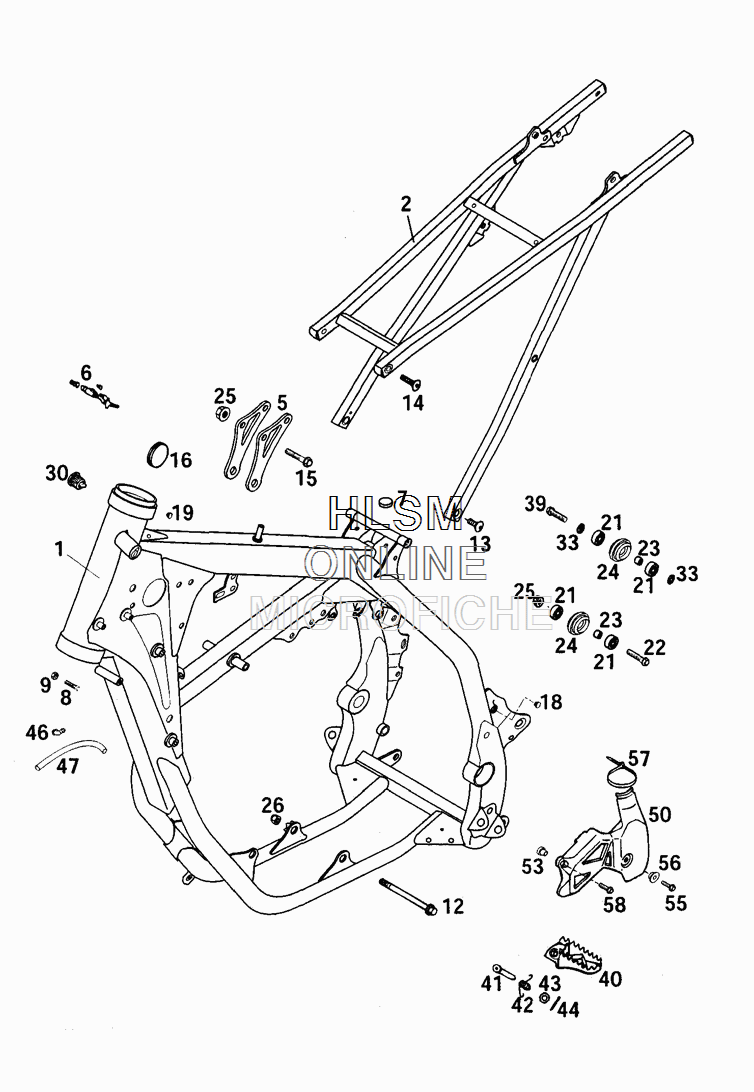

FRAME - SUB FRAME для Ktm 380 EXC - 2001 года выпуска
-
№АртикулНазвание
-
154703001300 FRAME (WITHOUT LOCK BODY, SILVER) (USA)FRAME (WITHOUT LOCK BODY, SILVER) (USA)
-
154703001400 FRAME (WITH LOCK BODY SILVER) (EURO/AUS)FRAME (WITH LOCK BODY SILVER) (EURO/AUS)
-
250303002044 SUB FRAME CPL.ALUSUB FRAME CPL.ALU
-
554703013100 REINFORC.BRACKET 4MMREINFORC.BRACKET 4MM
-
554703013000 REINFORCING BRACKETREINFORCING BRACKET
-
671003007000 STEERING HEAD LOCK CPL. ZADISTEERING HEAD LOCK CPL. ZADI
-
750307020000 RUBBER BUFFER FOR TANKRUBBER BUFFER FOR TANK
-
859001037000 SPECIAL SCREW M8X26 WS=10SPECIAL SCREW M8X26 WS=10
-
90934080003 HEXAGON NUT DIN0934-M 8HEXAGON NUT DIN0934-M 8
-
1254603013000 ENGINE BRAC.SCREW M10X105-10.9ENGINE BRAC.SCREW M10X105-10.9
-
1354610052000 SPROCKET SCREW-AH M 8X20SPROCKET SCREW-AH M 8X20
-
1454510052100 SPROCKET SCREW-AH M8X26 10.9SPROCKET SCREW-AH M8X26 10.9
-
1556530079000 SPECIAL SCREW M8X42-10.9SPECIAL SCREW M8X42-10.9
-
1654606004000 PLUG 37 MMPLUG 37 MM
-
1854403135000 PLASTIC CAP SFL10PLASTIC CAP SFL10
-
1936111021000 PLUGPLUG
-
210625006087 GROOVED BALL BEAR. 608 2RS C3GROOVED BALL BEAR. 608 2RS C3
-
220015080353 HH COLLAR SCREW M 8X35 WS=10HH COLLAR SCREW M 8X35 WS=10
-
2374003021000 BUSHING 8 X 12 X 6,5BUSHING 8 X 12 X 6,5
-
2452303053000 CHAIN ROLL D=30MMCHAIN ROLL D=30MM
-
2554310086200 SELF LOCKING NUT M8 10.9SELF LOCKING NUT M8 10.9
-
2654310086100 SELF LOCKING NUT M10 CU WS=14SELF LOCKING NUT M10 CU WS=14
-
3042007049000 PLASTIC CAPPLASTIC CAP
-
3336003014000 LOCK WASHER 8MMLOCK WASHER 8MM
-
390015080303 HH COLLAR SCREW M 8X30 WS=10HH COLLAR SCREW M 8X30 WS=10
-
4059003040050 FOOT PED L/S EXC SILVERFOOT PED L/S EXC SILVER
-
4059003041050 FOOT PED R/S EXC SILVERFOOT PED R/S EXC SILVER
-
4154603044000 BOLT FOR FOOTREST 9,8 X 50BOLT FOR FOOTREST 9,8 X 50
-
4254603041000 FOOTREST SPRING L/S & R/SFOOTREST SPRING L/S & R/S
-
430125100003 WASHER DIN0125-A10,5WASHER DIN0125-A10,5
-
440094032253 PIN DIN0094-3,2X25 STEELPIN DIN0094-3,2X25 STEEL
-
4650303089000 ANGEL PIECE '97ANGEL PIECE '97
-
4755007016001 PVC-HOSE 7X10 PER METERPVC-HOSE 7X10 PER METER
-
5054607061000 SPROCKET COVERSPROCKET COVER
-
5354703092050 COLLAR BUSHING 6,4X8X12X15,5COLLAR BUSHING 6,4X8X12X15,5
-
550015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
5650308053000 BUSH FOR SPOILER 6X11X16X7,5BUSH FOR SPOILER 6X11X16X7,5
-
5744011076200 CABLE TIE 200MMCABLE TIE 200MM
-
580015060253 HH COLLAR SCREW M 6X25 WS=8HH COLLAR SCREW M 6X25 WS=8
