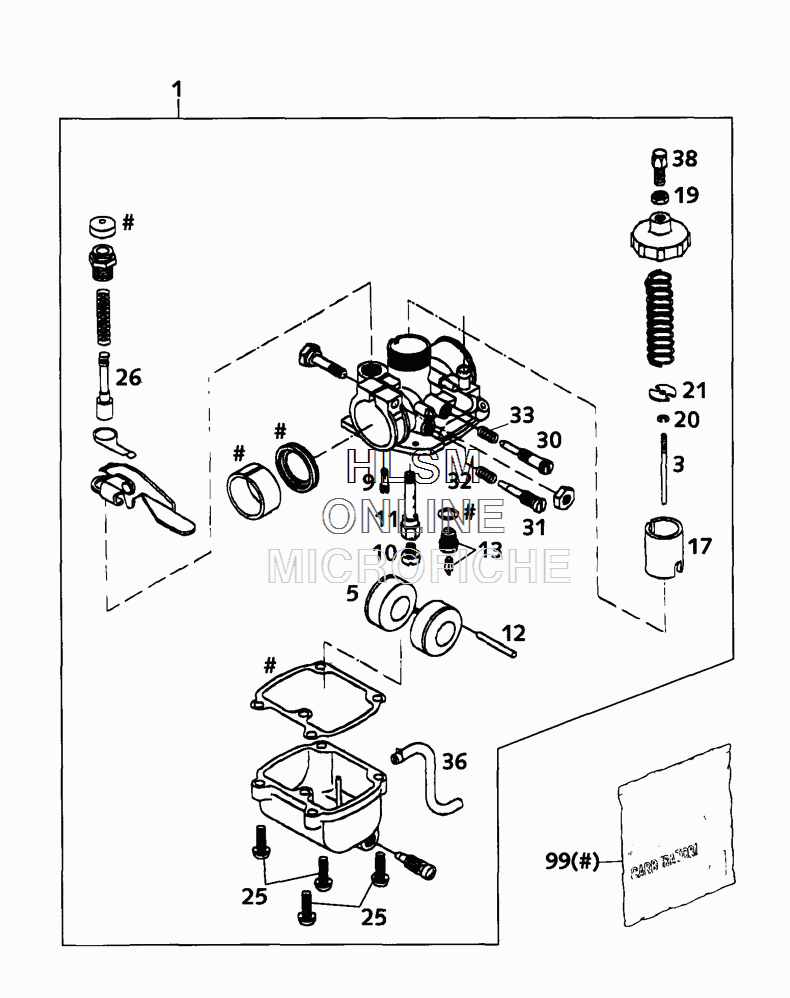

CARBURETOR (MIKUNI VM14) для Ktm 50 Jr Adventure - 2001 года выпуска
-
№АртикулНазвание
-
145031001444 CARBURET. MIKUNI VM14-387CARBURET. MIKUNI VM14-387
-
345031034300 JET NEEDLE 3D53-3 VM16JET NEEDLE 3D53-3 VM16
-
545031006200 FLOAT ASSY VM16FLOAT ASSY VM16
-
945031007025 IDLING' JET 25 MIKUNIIDLING' JET 25 MIKUNI
-
1045031123055 MAIN JET 55 MIKUNIMAIN JET 55 MIKUNI
-
1045031123060 MAIN JET 60 MIKUNIMAIN JET 60 MIKUNI
-
1045031123065 MAIN JET 65 MIKUNIMAIN JET 65 MIKUNI
-
1045031123070 MAIN JET 70 MIKUNIMAIN JET 70 MIKUNI
-
1045031123075 MAIN JET 75 MIKUNIMAIN JET 75 MIKUNI
-
1045031123080 MAIN JET 80 MIKUNIMAIN JET 80 MIKUNI
-
1045031123085 MAIN JET 85 MIKUNIMAIN JET 85 MIKUNI
-
1045031123090 MAIN JET 90 MIKUNIMAIN JET 90 MIKUNI
-
1045031123095 MAIN JET 95 MIKUNIMAIN JET 95 MIKUNI
-
1045031123100 MAIN JET 100 MIKUNIMAIN JET 100 MIKUNI
-
1145031021400 NEEDLE JET NJ D-8 VM14NEEDLE JET NJ D-8 VM14
-
1245031008000 PIN 2,5X27PIN 2,5X27
-
1345031020100 NEEDLE VALVE ASSY VM16NEEDLE VALVE ASSY VM16
-
1745031035300 THROTTLE VALVE "2.5" VM14THROTTLE VALVE "2.5" VM14
-
1945031026000 HH-NUT M6X0,75HH-NUT M6X0,75
-
2045031045100 SPRING VM16 MIKUNISPRING VM16 MIKUNI
-
2145031009200 RETAINING SPRING VM16 MIKUNIRETAINING SPRING VM16 MIKUNI
-
2545031014018 LENTIL HEAD SCREW M4X18 (SET)LENTIL HEAD SCREW M4X18 (SET)
-
2645031048200 STARTER PLUNGER VM16STARTER PLUNGER VM16
-
3045031019000 IDLE ADJ. SCREW VM16/18IDLE ADJ. SCREW VM16/18
-
3145031017100 AIR ADJUST SCREW VM16AIR ADJUST SCREW VM16
-
3245031015000 SPRINGSPRING
-
3345031015200 SPRING IDLE ADJUST SCREWSPRING IDLE ADJUST SCREW
-
3652031137001 PVC-HOSE 3 X 6 MMPVC-HOSE 3 X 6 MM
-
3845031025000 ADJUSTING SCREW M6X0,75ADJUSTING SCREW M6X0,75
-
9945031099000 GASKET SET VM16-519GASKET SET VM16-519
