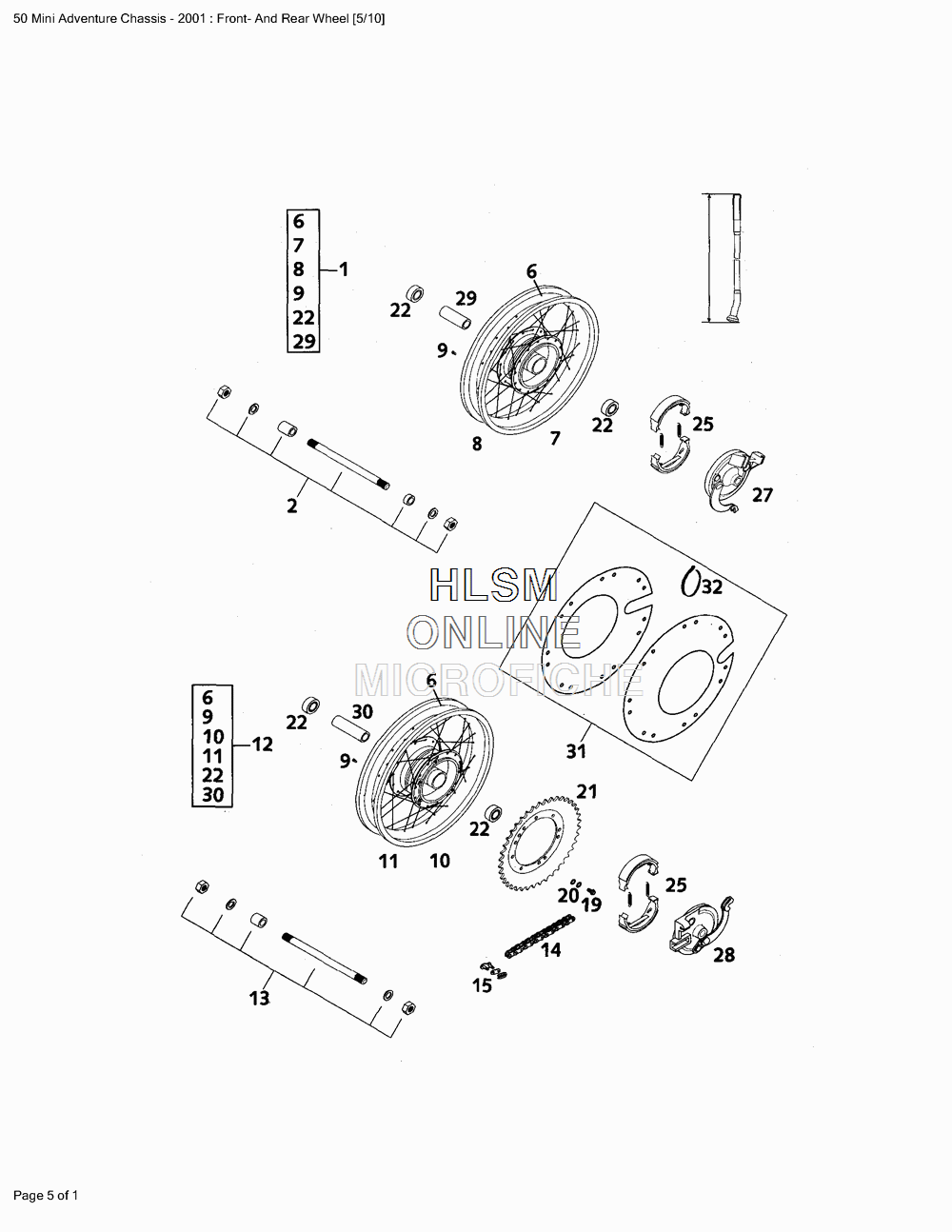

FRONT AND REAR WHEEL для Ktm 50 Mini Adventure - 2001 года выпуска
-
№АртикулНазвание
-
145009001100 FRONT WHEEL CPL.1,50X10 50' (REINFORCED)FRONT WHEEL CPL.1,50X10 50' (REINFORCED)
-
245009081000 AXLE FRONT CPL. L=202MMAXLE FRONT CPL. L=202MM
-
645009070000 RIM 1,50X10" STEELRIM 1,50X10" STEEL
-
745009071200 SPOKE M3,4X70-115G 10" L/SSPOKE M3,4X70-115G 10" L/S
-
845009171200 SPOKE M3,4X69-70DG 10" R/SSPOKE M3,4X69-70DG 10" R/S
-
945009072100 SPOKE NIPPLE M3,4SPOKE NIPPLE M3,4
-
1045010071200 SPOKE M3,4X73-115G 10" L/SSPOKE M3,4X73-115G 10" L/S
-
1145010171200 SPOKE M3,4X72-70DG 10" R/SSPOKE M3,4X72-70DG 10" R/S
-
1245010001100 REAR WHEEL CPL. 1,50X10" (REINFORCED)REAR WHEEL CPL. 1,50X10" (REINFORCED)
-
1345010081000 AXLE REAR CPL. L=214MMAXLE REAR CPL. L=214MM
-
1431010065094 CHAIN 1/2X3/16" 94 ROLLSCHAIN 1/2X3/16" 94 ROLLS
-
1431010065104 CHAIN 1/2X3/16" 104 ROLLSCHAIN 1/2X3/16" 104 ROLLS
-
1531010066000 MASTER LINK 1/2X3/16"MASTER LINK 1/2X3/16"
-
190015060163 HH COLLAR SCREW M 6X16 WS=8HH COLLAR SCREW M 6X16 WS=8
-
2050233041000 PAIR OF WASHERS M6 NORDLOCKPAIR OF WASHERS M6 NORDLOCK
-
2145010051044 SPROCKET 44-TSPROCKET 44-T
-
2145010051045 SPROCKET 45-TSPROCKET 45-T
-
2145010051046 SPROCKET 46-TSPROCKET 46-T
-
2145010051048 SPROCKET 48-TSPROCKET 48-T
-
220625060016 GROOVED BALL BEARING 6001.2RSRGROOVED BALL BEARING 6001.2RSR
-
2545009035000 BRAKE SHOES GARN.BRAKE SHOES GARN.
-
2745009030000 SUPPORTING PLATE CPL. FRONTSUPPORTING PLATE CPL. FRONT
-
2845010030000 SUPPORTING PLATE CPL. REARSUPPORTING PLATE CPL. REAR
-
2945009011000 DISTANCE TUBE FRONTDISTANCE TUBE FRONT
-
3045010011000 DISTANCE TUBE REARDISTANCE TUBE REAR
-
3145010092000 WHEEL COVER CPL.WHEEL COVER CPL.
-
3244011076305 CABLE TIE 290MMCABLE TIE 290MM
