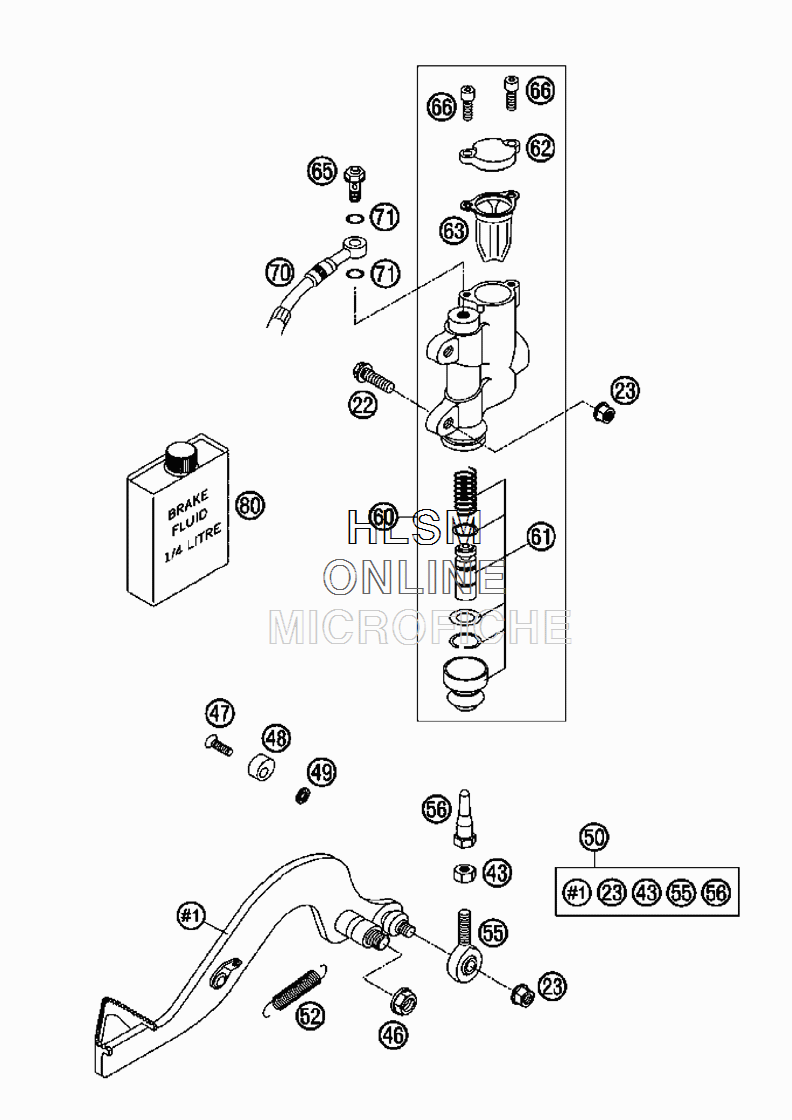

REAR BRAKE CONTROL для Ktm 50 SX Pro Sr - 2001 года выпуска
-
№АртикулНазвание
-
220015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
2356509064100 SELF LOCKING NUT M6 10.9SELF LOCKING NUT M6 10.9
-
430934060003 HEXAGON NUT DIN0934-M 6HEXAGON NUT DIN0934-M 6
-
4654310086200 SELF LOCKING NUT M8 10.9SELF LOCKING NUT M8 10.9
-
470991060203 FLAT H.SCREW DIN7991-M6X20 8.8FLAT H.SCREW DIN7991-M6X20 8.8
-
4858303063000 BRAKE LEVER STOPBRAKE LEVER STOP
-
490797060003 TOOTH LOCK WASH. DIN6797-A 6,4TOOTH LOCK WASH. DIN6797-A 6,4
-
5045113050144 REAR BRAKELEVER CPL. 2004REAR BRAKELEVER CPL. 2004
-
5254603062000 RETURN SPRING FOR BRAKE LEVERRETURN SPRING FOR BRAKE LEVER
-
5554813055000 SWIVEL HEAD KA6SWIVEL HEAD KA6
-
5647013056000 PRESSURE RODPRESSURE ROD
-
6046113060000 REAR BRAKE CYL. 50+65 04REAR BRAKE CYL. 50+65 04
-
6147013061000 REP. SET PISTON REAR D=11REP. SET PISTON REAR D=11
-
6247013062000 CYLINDER COVER REAR 85CYLINDER COVER REAR 85
-
6347013063000 GASKET CYLINDER COVER REARGASKET CYLINDER COVER REAR
-
6546113325000 HOLLOW SCREW M6HOLLOW SCREW M6
-
660912040103 AH.SCREW DIN0912-M 4X10AH.SCREW DIN0912-M 4X10
-
7045113170000 BRAKE HOSE REARBRAKE HOSE REAR
-
710770060019 O-RING 6,00X1,00O-RING 6,00X1,00
-
80306054 BRAKE FLUID DOT 4.0BRAKE FLUID DOT 4.0
