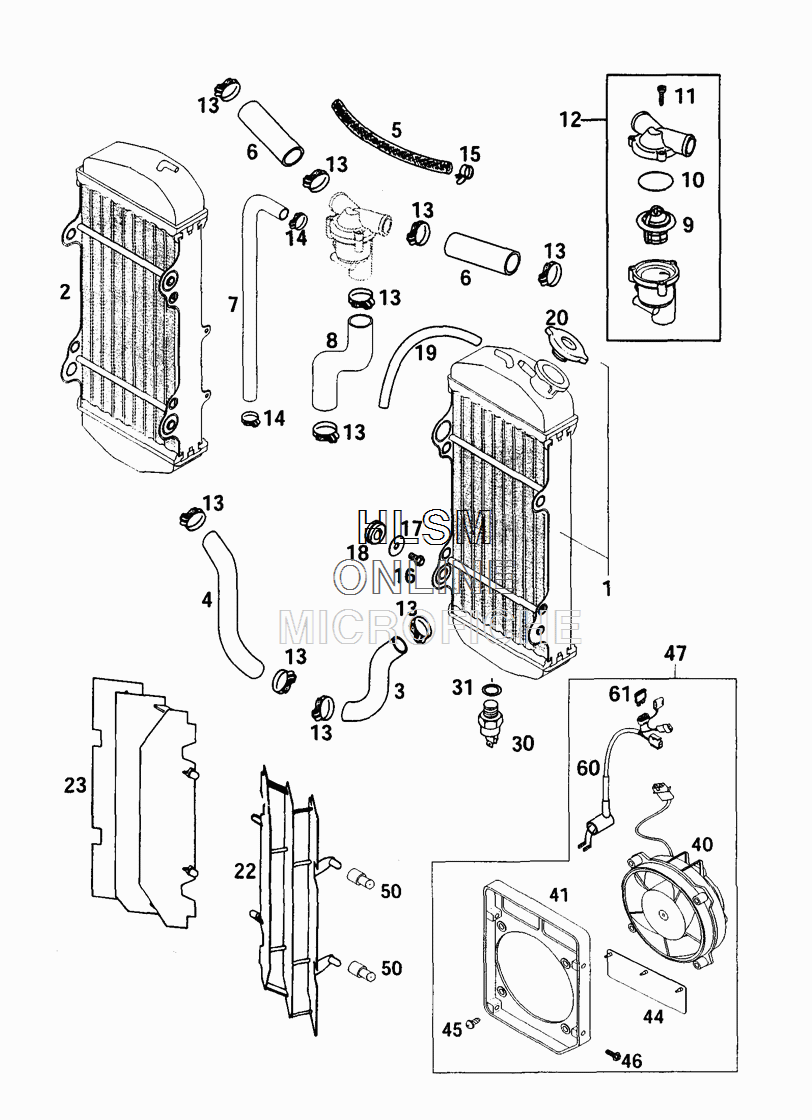

COOLING SYSTEM для Ktm 520 SX Racing - 2001 года выпуска
-
№АртикулНазвание
-
159035007200 RADIATOR L/S 45351URADIATOR L/S 45351U
-
259035008200 RADIATOR R/S 45352URADIATOR R/S 45352U
-
359035024000 RADIATORHOSE L/S RADIATOR-CYL.RADIATORHOSE L/S RADIATOR-CYL.
-
459035124000 RADIATORHOSE R/S RADIATOR-CYL.RADIATORHOSE R/S RADIATOR-CYL.
-
554435024001 HOSE ID 7,5 PER METERHOSE ID 7,5 PER METER
-
659035126000 RADIATOR HOSE RADIATOR-THERMO.RADIATOR HOSE RADIATOR-THERMO.
-
759035025001 RADIATOR HOSE SECONDARY (RADIATOR-THERMOSTAT)RADIATOR HOSE SECONDARY (RADIATOR-THERMOSTAT)
-
859035025000 RADIATOR HOSE THERMOS.-HEADRADIATOR HOSE THERMOS.-HEAD
-
958335017000 THERMOSTAT 70 DEGREESTHERMOSTAT 70 DEGREES
-
100770320020 O-RING 32,00X2,00O-RING 32,00X2,00
-
110016040183 PLASTIC SCREW K840X18 WN1412PLASTIC SCREW K840X18 WN1412
-
1259035013044 THERMOSTAT CPL.THERMOSTAT CPL.
-
1310001020000 HOSE CLAMP GEM/ 16/27HOSE CLAMP GEM/ 16/27
-
1458335099000 HOSE CLAMP GEM/ 10-16HOSE CLAMP GEM/ 10-16
-
1550231005000 HOSE CLAMP YDNAC 10119HOSE CLAMP YDNAC 10119
-
160015060123 HH COLLAR SCREW M 6X12 WS=8HH COLLAR SCREW M 6X12 WS=8
-
170021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
1841001052000 RUBBER SLEEVE D=12MMRUBBER SLEEVE D=12MM
-
1955007016001 PVC-HOSE 7X10 PER METERPVC-HOSE 7X10 PER METER
-
2058035016000 RADIATOR CAP SMALL 1,4 BARRADIATOR CAP SMALL 1,4 BAR
-
2254635034200 RADIATOR PROTECT. L/S WHITERADIATOR PROTECT. L/S WHITE
-
2354635134200 RADIATOR PROTECT. R/S WHITERADIATOR PROTECT. R/S WHITE
-
3058035045000 THERMOSWITCH 80-85 DGTHERMOSWITCH 80-85 DG
-
310603142015 ALU SEALRING DIN7603-14X20X1,5ALU SEALRING DIN7603-14X20X1,5
-
4058435041000 FAN CPL. 12VFAN CPL. 12V
-
4159035044000 FAN CAPFAN CAP
-
4458435044050 FAN FLAP RUBBERFAN FLAP RUBBER
-
450081500181 EJOT PT SCREW KA 50X18 WN1411EJOT PT SCREW KA 50X18 WN1411
-
460017060203 SPECIAL SCREW T60 6X20SPECIAL SCREW T60 6X20
-
4759035041044 FAN CPL.FAN CPL.
-
5054635034050 ADAPTER FOR RADIATOR PROTECTORADAPTER FOR RADIATOR PROTECTOR
-
6059011079000 FAN WIRING HARNESSFAN WIRING HARNESS
-
6158011109005 FUSE 5 AFUSE 5 A
