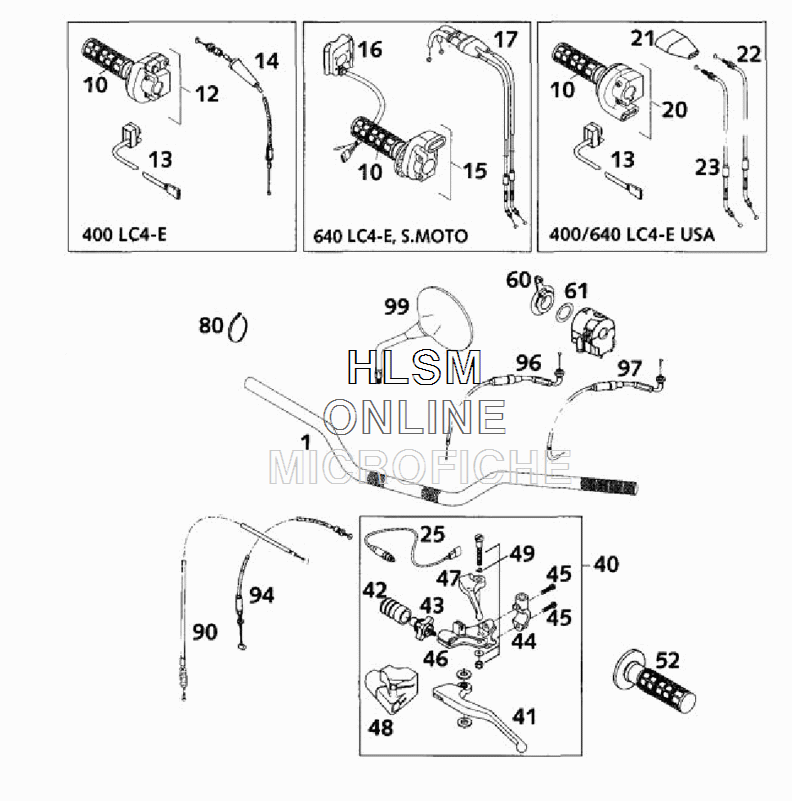

HANDLEBAR W/ CONTROLS для Ktm LC4 400 Dual Sport - 2001 года выпуска
-
№АртикулНазвание
-
158302001400 ALU-HANDLEBAR SILVER "4T"ALU-HANDLEBAR SILVER "4T"
-
1058302003000 TWIST GRIP COVER DOMINOTWIST GRIP COVER DOMINO
-
1258302010000 THROTTLE GRIP CPL.DOMINOTHROTTLE GRIP CPL.DOMINO
-
1358411074000 START-STOP SWITCHSTART-STOP SWITCH
-
1458202091000 THROTTLE CABLE DOM./DELLO.ADVTHROTTLE CABLE DOM./DELLO.ADV
-
1659011074100 START-STOP SWITCH CPL. (AUS)START-STOP SWITCH CPL. (AUS)
-
2058402010400 THROTTGRIP CPL. DOMINO-MIKUNITHROTTGRIP CPL. DOMINO-MIKUNI
-
2158302016200 PROTECT COVER RXC/DUKE USAPROTECT COVER RXC/DUKE USA
-
2258402092000 THROTT. CABLE "CLOSE" DOM.-MIKUNITHROTT. CABLE "CLOSE" DOM.-MIKUNI
-
2358402192000 THROTTCABLE "OPEN" DOM.-MIKUNITHROTTCABLE "OPEN" DOM.-MIKUNI
-
2558411049000 CLUTCH SWITCHCLUTCH SWITCH
-
4058402040100 CLUTCH LEVER CPL. DOMINOCLUTCH LEVER CPL. DOMINO
-
4158402042000 CLUTCH LEVER LOOSE SILVERCLUTCH LEVER LOOSE SILVER
-
4258302126000 CLUTCH LEVER BOOTCLUTCH LEVER BOOT
-
4358302043000 ADJUSTMENT SCREW CPL.M7ADJUSTMENT SCREW CPL.M7
-
4458302044000 CLAMP MIRROW M10X1,25CLAMP MIRROW M10X1,25
-
450015060253 HH COLLAR SCREW M 6X25 WS=8HH COLLAR SCREW M 6X25 WS=8
-
4658402041000 JOINT (PIVOT) DOMINOJOINT (PIVOT) DOMINO
-
4758302047000 DECOMPRESSION LEVER LOOSEDECOMPRESSION LEVER LOOSE
-
4858402048000 PLASTIC COVERPLASTIC COVER
-
4958302049000 LEVER SCREW CPL.LEVER SCREW CPL.
-
5258302052000 FIXED GRIP DOMINOFIXED GRIP DOMINO
-
6058302050100 CHOKE LEVER DOMINOCHOKE LEVER DOMINO
-
610988253505 THRUST WASH. DIN0988-25X35X0,5THRUST WASH. DIN0988-25X35X0,5
-
8044011076200 CABLE TIE 200MMCABLE TIE 200MM
-
8044011076100 CABLE TIE 100MMCABLE TIE 100MM
-
9058402090000 CLUTCH CABLE 4T L=1115MMCLUTCH CABLE 4T L=1115MM
-
9458302094200 DECOMPR. CABLE L=693,5 LC4DECOMPR. CABLE L=693,5 LC4
-
9758402095000 CHOKE CABLE FOR MIKUNI LC4CHOKE CABLE FOR MIKUNI LC4
-
9958412040100 REAR MIRROR L/S+R/S LC4REAR MIRROR L/S+R/S LC4
-
6058302050100 CHOKE LEVER DOMINOCHOKE LEVER DOMINO
-
610988253505 THRUST WASH. DIN0988-25X35X0,5THRUST WASH. DIN0988-25X35X0,5
-
8044011076200 CABLE TIE 200MMCABLE TIE 200MM
-
8044011076100 CABLE TIE 100MMCABLE TIE 100MM
-
9058402090000 CLUTCH CABLE 4T L=1115MMCLUTCH CABLE 4T L=1115MM
-
9458302094200 DECOMPR. CABLE L=693,5 LC4DECOMPR. CABLE L=693,5 LC4
-
9658302095100 CHOKE CABLE LC4CHOKE CABLE LC4
-
9758402095000 CHOKE CABLE FOR MIKUNI LC4CHOKE CABLE FOR MIKUNI LC4
-
9958412040100 REAR MIRROR L/S+R/S LC4REAR MIRROR L/S+R/S LC4
