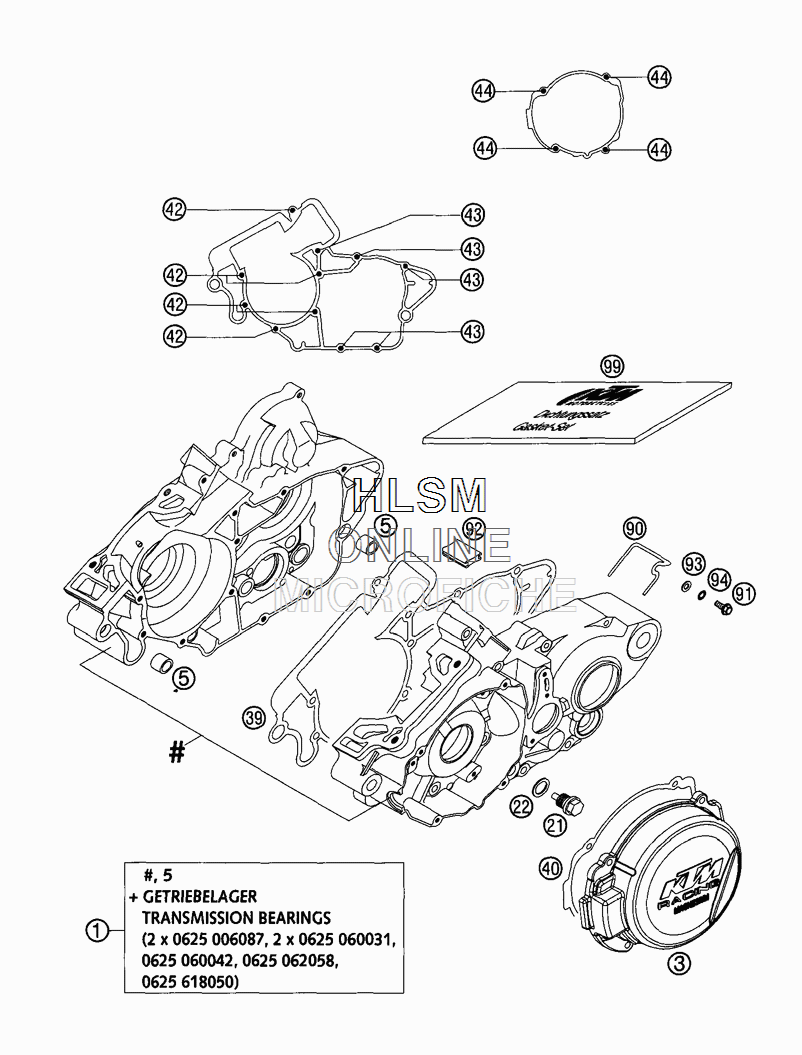

ENGINE CASE для Ktm 125 SX - 2002 года выпуска
-
№АртикулНазвание
-
152330000644 ENGINE CASE CPL.M.TRAN.BEARENGINE CASE CPL.M.TRAN.BEAR
-
35033000220098 IGNIT.COVER 125/200 MAG.IGNIT.COVER 125/200 MAG.
-
554630027000 DOWEL BUSHING 13,8X11X12DOWEL BUSHING 13,8X11X12
-
2158030021000 OILDRAIN PLUG W.MAG. M12X1,5OILDRAIN PLUG W.MAG. M12X1,5
-
2258038022000 CU-SEAL RING DIN7603-12X18X1,5CU-SEAL RING DIN7603-12X18X1,5
-
3950330039000 ENGINE CASE GASKET 0,5MMENGINE CASE GASKET 0,5MM
-
4050330040100 IGNITION COVER GASKETIGNITION COVER GASKET
-
420015060503 HH COLLAR SCREW M6X50 WS=8HH COLLAR SCREW M6X50 WS=8
-
430015060553 HH COLLAR SCREW M6X55 WS=8HH COLLAR SCREW M6X55 WS=8
-
440015050163 HH COLLAR SCREW M5X16 WS=8HH COLLAR SCREW M5X16 WS=8
-
9050330090000 BRACKET FOR BREATHERTUBEBRACKET FOR BREATHERTUBE
-
910015050123 HH COLLAR SCREW M5X12 WS=8HH COLLAR SCREW M5X12 WS=8
-
9250330092000 OIL GUARD GROMMET 25X31OIL GUARD GROMMET 25X31
-
930125050003 WASHER DIN0125-A 5,0WASHER DIN0125-A 5,0
-
940797050003 TOOTH LOCK WASH. DIN6797-J 5,3TOOTH LOCK WASH. DIN6797-J 5,3
-
9950330099000 GASKET SETGASKET SET
