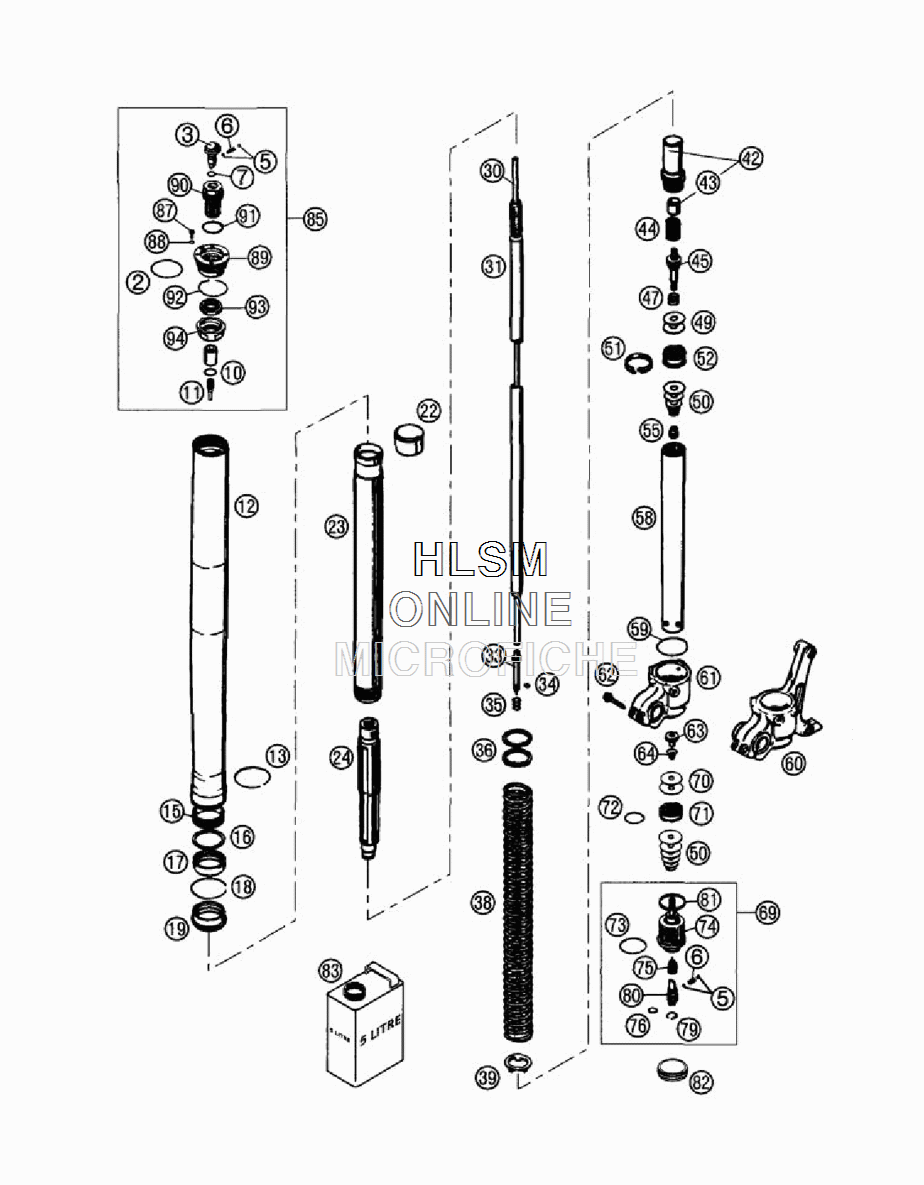

FORK LEGS (48) для Ktm 300 EXC - 2002 года выпуска

№

Артикул

Название
2

46810340 O-RING NBR 45X2

O-RING NBR 45X2

220 ₽
3

48600018 KNOB REBOUNG ADJUSTER

KNOB REBOUNG ADJUSTER

890 ₽
5

40540603 STEEL BALL D=3MM

STEEL BALL D=3MM

60 ₽
6

48600028 SPRING D=2,9 L=7,9

SPRING D=2,9 L=7,9

660 ₽
7

48600044 O-RING NBR 6X1,5

O-RING NBR 6X1,5

130 ₽
10

48600043 O-RING NBR 12X1,5

O-RING NBR 12X1,5

270 ₽
11

48600019 HOLDER F. ADJUSTMENT TUBE D=4MM

HOLDER F. ADJUSTMENT TUBE D=4MM

500 ₽
12

48600001 OUTER TUBE L=577MM D=54/60MM

OUTER TUBE L=577MM D=54/60MM

0 ₽
13

48600016 GUIDING RING D=58MM

GUIDING RING D=58MM

680 ₽
15

48600007 DU-BUSH 48 X 52 X 20

DU-BUSH 48 X 52 X 20

5 140 ₽
16

48600013 SUPPORT RING 50 X 57,6 X 1,5

SUPPORT RING 50 X 57,6 X 1,5

610 ₽
17

48600057 OIL SEAL RING 48 X 57,7 X 9,5

OIL SEAL RING 48 X 57,7 X 9,5

0 ₽
18

48600070 LOCK WASHER SB58

LOCK WASHER SB58

350 ₽
19

48600159 DUST STRIPPER D48

DUST STRIPPER D48

0 ₽
22

48600008 DU-BUSH 47 X 49 X 20

DU-BUSH 47 X 49 X 20

3 240 ₽
23

48600002 INNER TUBE D=48MM L=590MM

INNER TUBE D=48MM L=590MM

0 ₽
24

48600011S HYDR.STOP L=200MM D=32,4 CPL.

HYDR.STOP L=200MM D=32,4 CPL.

15 120 ₽
30

48600014 ADJUSTMENT TUBE L=512MM

ADJUSTMENT TUBE L=512MM

4 490 ₽
31

48600023 PISTONR. D=14MM L=546MM M11X1

PISTONR. D=14MM L=546MM M11X1

19 880 ₽
33

48600150 REBOUND NEEDLE

REBOUND NEEDLE

0 ₽
34

48600046 O-RING NBR 3X1,5

O-RING NBR 3X1,5

220 ₽
35

48600033 SPRING REBOUND NEEDLE C=4N/MM

SPRING REBOUND NEEDLE C=4N/MM

1 240 ₽
36

48600036 SPACER 42X26,5X2,5

SPACER 42X26,5X2,5

440 ₽
36

48600037 SPACER 42X26,5X5

SPACER 42X26,5X5

800 ₽
36

48600053 SPACER 42X26,5X1,5

SPACER 42X26,5X1,5

800 ₽
38

91410011S SPRING 3,6N/MM SET

SPRING 3,6N/MM SET

39 430 ₽
38

91410012S SPRING 3,8N/MM SET

SPRING 3,8N/MM SET

39 430 ₽
38

91410013S + SPRING 4,ON/MM SET D=5,0MM

+ SPRING 4,ON/MM SET D=5,0MM

39 430 ₽
38

91410014S SPRING 4,2N/MM SET

SPRING 4,2N/MM SET

39 430 ₽
38

91410015S SPRING 4,4N/MM SET D=5,1MM

SPRING 4,4N/MM SET D=5,1MM

39 430 ₽
38

91410016S SPRING 4,6N/MM SET

SPRING 4,6N/MM SET

39 430 ₽
38

91410017S SPRING 4,8N/MM SET

SPRING 4,8N/MM SET

39 430 ₽
39

48600021 INTERM. RING 26,2 X 43 X 3

INTERM. RING 26,2 X 43 X 3

4 510 ₽
42

43570132S SCREW SLEEVE M29,3X1+BUSH

SCREW SLEEVE M29,3X1+BUSH

13 470 ₽
43

46810651 DU-BUSH 14X16X12

DU-BUSH 14X16X12

620 ₽
44

48600015 REBOUND SPRING D=14,6MM L=22MM

REBOUND SPRING D=14,6MM L=22MM

9 290 ₽
45

48600151 TAB REBOUND

TAB REBOUND

6 000 ₽
47

35480377 SPRING CHECK VALVE D=0,5

SPRING CHECK VALVE D=0,5

310 ₽
49

48600062 CHECK VALVE 8X24X0,1

CHECK VALVE 8X24X0,1

370 ₽
49

40541416 SHIM 6X8X0,3

SHIM 6X8X0,3

370 ₽
49

40541414 SHIM 6X8,0X0,10

SHIM 6X8,0X0,10

370 ₽
50

48600116 SHIM 6X24X0,1 DELTA

SHIM 6X24X0,1 DELTA

370 ₽
50

40540401 SHIM 6X14X0,1

SHIM 6X14X0,1

370 ₽
50

40540402 SHIM 6X16X0,1

SHIM 6X16X0,1

370 ₽
50

40540403 SHIM 6X18X0,1

SHIM 6X18X0,1

370 ₽
50

40541402 SHIM 6X11X0,2

SHIM 6X11X0,2

370 ₽
50

40540405 SHIM 6X14X0,15

SHIM 6X14X0,15

370 ₽
50

40540406 SHIM 6X16X0,15

SHIM 6X16X0,15

370 ₽
50

40540414 SHIM 6X16X0,25

SHIM 6X16X0,25

370 ₽
50

40541417 SHIM 6X11 X0,25

SHIM 6X11 X0,25

370 ₽
50

40540447 SHIM 6X10X0,3

SHIM 6X10X0,3

370 ₽
50

48600063 SHIM 6X24X0,1

SHIM 6X24X0,1

370 ₽
50

48600064 SHIM 6X22X0,1

SHIM 6X22X0,1

370 ₽
50

48600065 SHIM 6X20X0,1

SHIM 6X20X0,1

370 ₽
50

40540415 SHIM 6X18X0,25

SHIM 6X18X0,25

370 ₽
51

48600060 PISTON RING 5X1X84

PISTON RING 5X1X84

1 160 ₽
52

48600042 PISTON REBOUND D=27,7

PISTON REBOUND D=27,7

3 040 ₽
55

40540486 NUT M6XO,5 REBOUND

NUT M6XO,5 REBOUND

920 ₽
58

48600081 TUBE 29,3X1X390 D=8,5MM

TUBE 29,3X1X390 D=8,5MM

30 490 ₽
59

48600048 O-RING NBR 46 X 2

O-RING NBR 46 X 2

540 ₽
60

48600006 AXLE CLAMP L/S USD 48

AXLE CLAMP L/S USD 48

102 730 ₽
61

48600005 AXLE CLAMP R/S USD 48

AXLE CLAMP R/S USD 48

53 760 ₽
62

50600061 HH COLLAR SCREW M 8X30

HH COLLAR SCREW M 8X30

700 ₽
63

40541241 CHECK VALVE NUT M6XO,5

CHECK VALVE NUT M6XO,5

2 100 ₽
64

40541278 SPRING CHECK VALVE D=0,5MM

SPRING CHECK VALVE D=0,5MM

5 060 ₽
69

48600152S TAP COMPRESSION CPL.

TAP COMPRESSION CPL.

24 910 ₽
70

48600061 CHECK VALVE 8X24X0,4

CHECK VALVE 8X24X0,4

370 ₽
71

48600047 PISTON COMPRESSION D=27,9

PISTON COMPRESSION D=27,9

2 250 ₽
72

46811499 O-RING NBR 21X2

O-RING NBR 21X2

60 ₽
73

35480320 O-RING NBR 24X2

O-RING NBR 24X2

80 ₽
74

48600152 TAP COMPRESSION

TAP COMPRESSION

24 910 ₽
75

48600153 NEEDLE COMPRESSION M10X1

NEEDLE COMPRESSION M10X1

1 740 ₽
76

48600049 O-RING NBR 8X2

O-RING NBR 8X2

130 ₽
79

48600051 LOCK WASHER RB12

LOCK WASHER RB12

810 ₽
80

48600034 COMPRESSION ADJ. SCREW

COMPRESSION ADJ. SCREW

2 400 ₽
81

48600004 COPPER WASHER 29,5X33,5X1

COPPER WASHER 29,5X33,5X1

910 ₽
82

48600141 RUBBER CAP D=35MM

RUBBER CAP D=35MM

920 ₽
83

40540882 FORKOIL REZ 71 SAE 5

FORKOIL REZ 71 SAE 5

0 ₽
85

48600075S PRE-LOAD ADJUSTER CPL.(1 PC.)

PRE-LOAD ADJUSTER CPL.(1 PC.)

170 ₽
87

48600076 VENT SCREW M4X8

VENT SCREW M4X8

410 ₽
88

48600046 O-RING NBR 3X1,5

O-RING NBR 3X1,5

220 ₽
89

48600075 SCREW CAP M51X1,5

SCREW CAP M51X1,5

40 710 ₽
90

48600073 ADAPTER FOR REB. MENDING

ADAPTER FOR REB. MENDING

0 ₽
91

48600077 O-RING NBR 26X2

O-RING NBR 26X2

230 ₽
92

46810010 CIRCLIP 49X1,5

CIRCLIP 49X1,5

530 ₽
93

48600072 LOCKNUT

LOCKNUT

5 130 ₽
94

48600071 SUPPORT RING FOR SPRING

SUPPORT RING FOR SPRING

12 560 ₽
