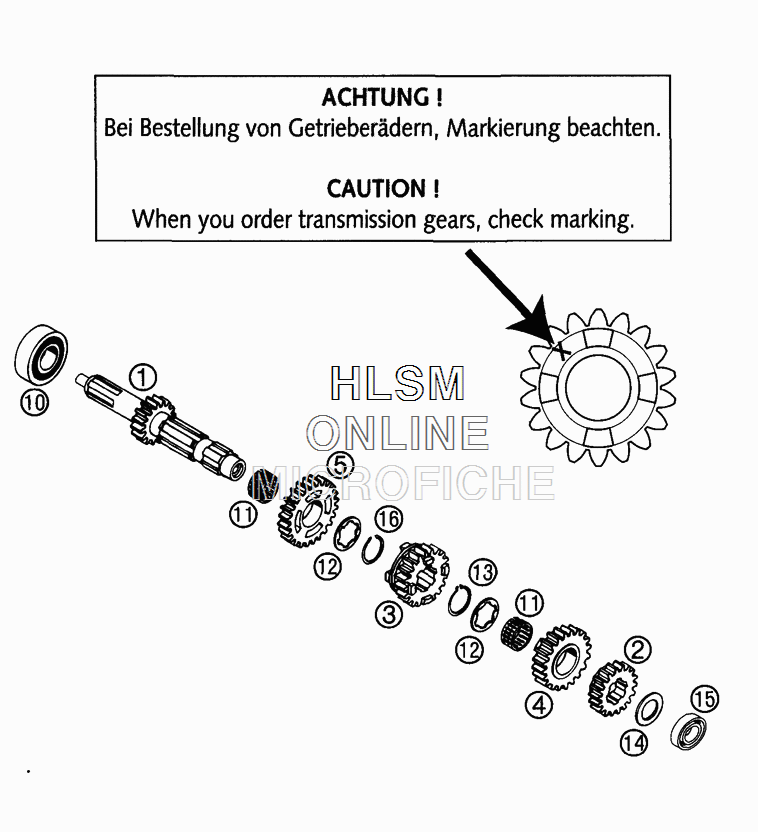

TRANSMISSION - MAINSHAFT для Ktm 380 SX - 2002 года выпуска
-
№АртикулНазвание
-
154733001000 MAIN SHAFT 15-T '99MAIN SHAFT 15-T '99
-
254633110000 2ND GEAR MAINSHAFT 18-T "446"2ND GEAR MAINSHAFT 18-T "446"
-
354633006300 3RD GEAR MAINSHAFT 19-T "462"3RD GEAR MAINSHAFT 19-T "462"
-
454633008000 4TH GEAR MAINSHAFT 21-T "480"4TH GEAR MAINSHAFT 21-T "480"
-
554633004000 5TH GEAR MAINSHAFT 23-T "500"5TH GEAR MAINSHAFT 23-T "500"
-
100625201029 BALL BEARING 6304-22 C4 SKFBALL BEARING 6304-22 C4 SKF
-
1156533099000 NEEDLE BEAR. K22X26X13 DIVIDEDNEEDLE BEAR. K22X26X13 DIVIDED
-
1254633016000 STOP DISK 22,5X25,7X32X1,5STOP DISK 22,5X25,7X32X1,5
-
1352033096000 LOCK RING DIN0471-25X1,64SDLOCK RING DIN0471-25X1,64SD
-
1454633015000 STOP DISK 20,2X33X1,5STOP DISK 20,2X33X1,5
-
150625069040 BALL BEARING 61904 C3BALL BEARING 61904 C3
-
1654633096000 AXIAL-CIRCLIP 25X1,64AXIAL-CIRCLIP 25X1,64
