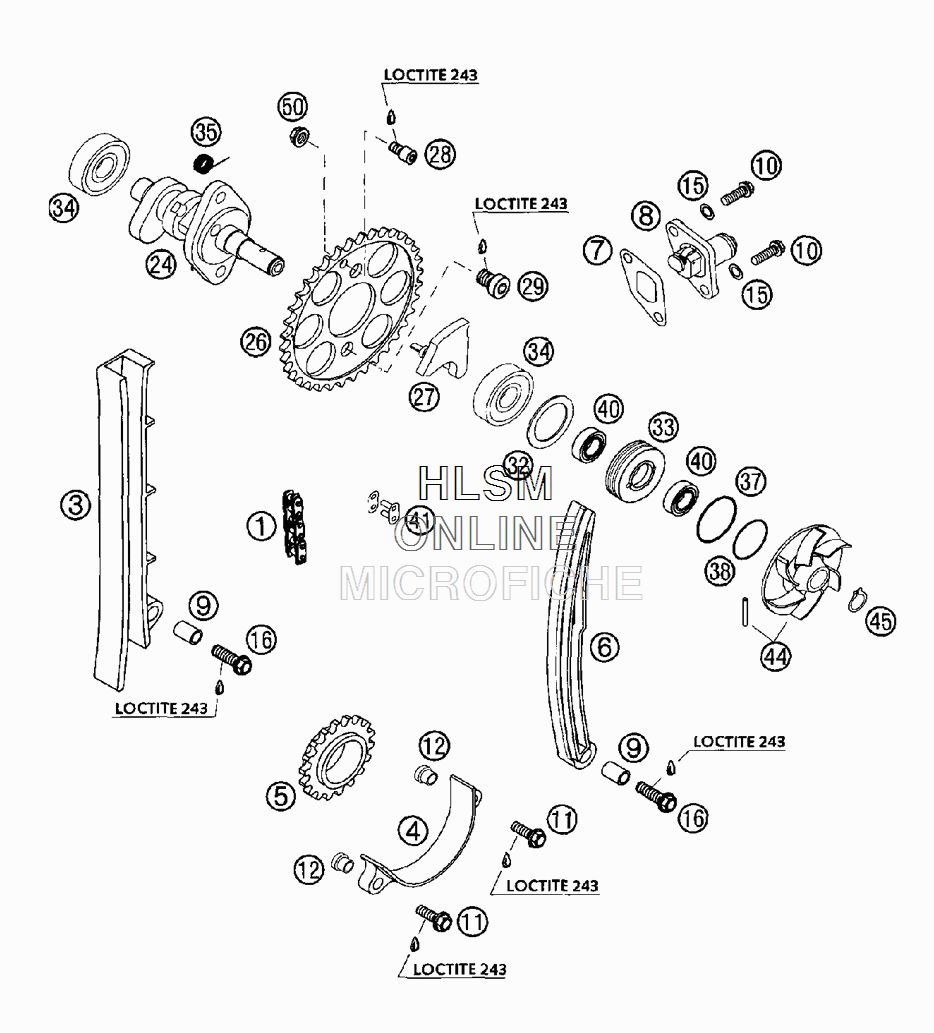

TIMING VALVE для Ktm 400 EXC Racing - 2002 года выпуска
-
№АртикулНазвание
-
159036013000 TIMING CHAIN 97 ROLLSTIMING CHAIN 97 ROLLS
-
359036001000 TIMING CHAIN GUIDE RACINGTIMING CHAIN GUIDE RACING
-
459036018000 SECURING GUIDE RACINGSECURING GUIDE RACING
-
559036014000 TIMING GEAR 18-TTIMING GEAR 18-T
-
659036002000 TIMING CHAIN TENSIONERTIMING CHAIN TENSIONER
-
759036003050 GASKET TIMING CHAIN TENSIONERGASKET TIMING CHAIN TENSIONER
-
859036003000 TIMINGCHAIN TENSIONER CPL.RAC.TIMINGCHAIN TENSIONER CPL.RAC.
-
959036001050 SPACER BUSHING 6,1X8,2X13,1SPACER BUSHING 6,1X8,2X13,1
-
100015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
110015050163 HH COLLAR SCREW M 5X16 WS=8HH COLLAR SCREW M 5X16 WS=8
-
1259036018050 SUPPORTING SLEEVE 5,2X7X10X7,7SUPPORTING SLEEVE 5,2X7X10X7,7
-
150603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
-
160015060253 HH COLLAR SCREW M 6X25 WS=8HH COLLAR SCREW M 6X25 WS=8
-
2459536010000 CAMSHAFT "01"CAMSHAFT "01"
-
2659036011000 CAMSHAFT GEAR 36-TCAMSHAFT GEAR 36-T
-
2759036016000 AUTO DECOMPRESSION SHAFTAUTO DECOMPRESSION SHAFT
-
280912050106 AH SCREW M5X10 DIN912 10.9AH SCREW M5X10 DIN912 10.9
-
290984080103 AH SCREW DIN7984-M 8X10 8.8AH SCREW DIN7984-M 8X10 8.8
-
3259036082000 WASHER 26,7X34X1,3WASHER 26,7X34X1,3
-
3359036081100 GASKET SUPPORTGASKET SUPPORT
-
340625062014 BALL BEARING 6201 C3 NTNBALL BEARING 6201 C3 NTN
-
3559036017000 SPRING 0,55MM FOR AUTODECOMPR.SPRING 0,55MM FOR AUTODECOMPR.
-
370770291016 O-RING 29,10X1,60 NBR 70O-RING 29,10X1,60 NBR 70
-
380770020220 O-RING 25,12X1,78 NBR70O-RING 25,12X1,78 NBR70
-
400760101842 SHAFT SEAL R.10X18X4 B-NBR SBSHAFT SEAL R.10X18X4 B-NBR SB
-
4159036013050 RIVET LINK FOR TIMING CHAINRIVET LINK FOR TIMING CHAIN
-
4459035055144 WATER PUMP WHEEL CPL. RAC.WATER PUMP WHEEL CPL. RAC.
-
450471100010 CIRCLIP DIN0471-10X1CIRCLIP DIN0471-10X1
-
500985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
