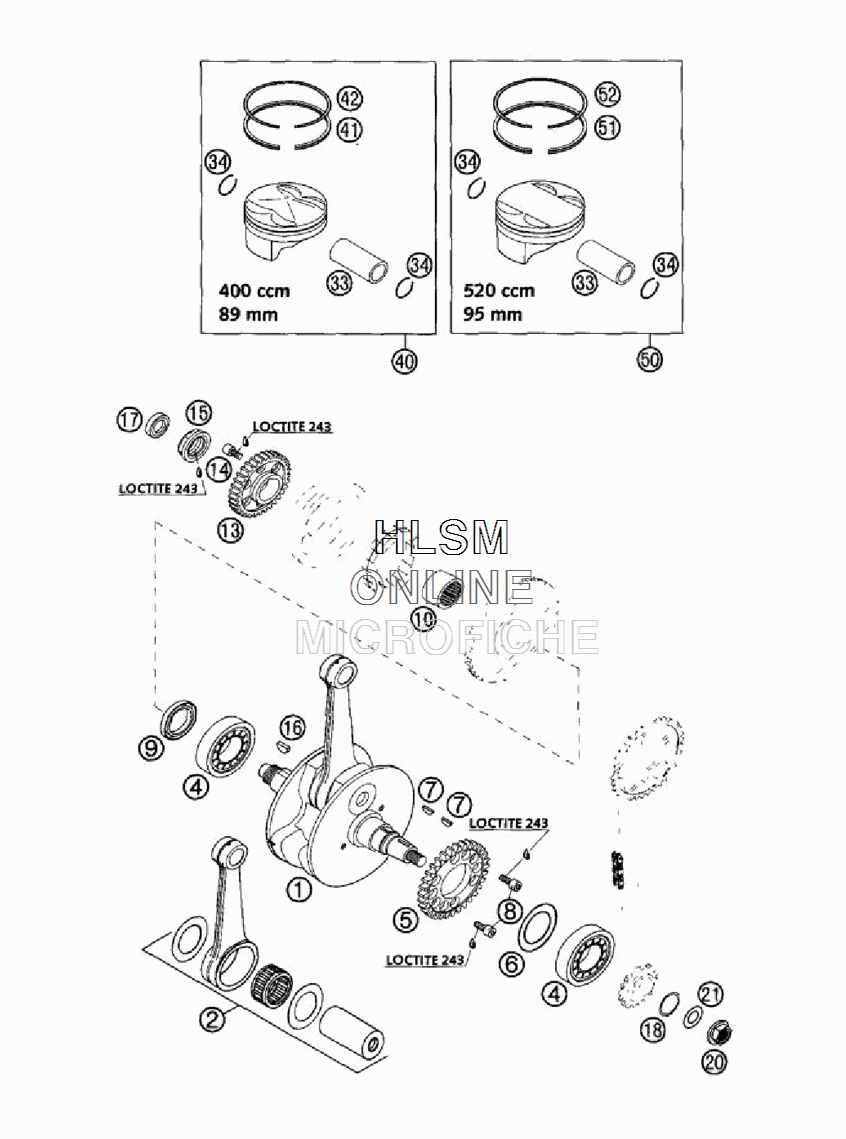

CRANKSHAFT W/ PISTON для Ktm 400 MXC Racing - 2002 года выпуска
-
№АртикулНазвание
-
159530018200 CRANKSHAFT CPL. (STROKE 64MM, WITHOUT WASHER)CRANKSHAFT CPL. (STROKE 64MM, WITHOUT WASHER)
-
259530015044 CON.ROD REP.SET (WITH WASHER)CON.ROD REP.SET (WITH WASHER)
-
450330082000 CYL.ROLLER BEAR.NJ206 ET2XC546CYL.ROLLER BEAR.NJ206 ET2XC546
-
559030055000 DRIVE GEAR 32-T EBALANC.SHAFTDRIVE GEAR 32-T EBALANC.SHAFT
-
656030081000 THRUST WASHER 30X42X0,1THRUST WASHER 30X42X0,1
-
656030081100 THRUST WASHER 30X42X0,15THRUST WASHER 30X42X0,15
-
656030081200 THRUST WASHER 30X42X0,3THRUST WASHER 30X42X0,3
-
70888030050 WOODRUFF KEY DIN6888-3X5X13WOODRUFF KEY DIN6888-3X5X13
-
80984060162 AH SCREW DIN7984-M 6X16AH SCREW DIN7984-M 6X16
-
90760304771 SHAFT SEAL RING 30X47X7 VITONSHAFT SEAL RING 30X47X7 VITON
-
100618301617 NEEDLE BEARING HK 3016 BNEEDLE BEARING HK 3016 B
-
1359032000033 PRIMARY GEAR 33-TPRIMARY GEAR 33-T
-
140912060106 AH SCREW DIN0912-M 6X10 10.9AH SCREW DIN0912-M 6X10 10.9
-
1559030029100 HH NUR M20X1,5 WS=27 LEFTHH NUR M20X1,5 WS=27 LEFT
-
166946005 WOODRUFF KEY 5X6,5 HARDEDWOODRUFF KEY 5X6,5 HARDED
-
170760142460 SHAFT SEAL RING 14X24X6 BSHAFT SEAL RING 14X24X6 B
-
180471250120 CIRCLIP DIN0471-25X1,2CIRCLIP DIN0471-25X1,2
-
2049030021000 COLLAR NUT M12X1 R/SCOLLAR NUT M12X1 R/S
-
210137120000 SPRING WASHER DIN0137-B12SPRING WASHER DIN0137-B12
-
3359030033000 PISTON PIN BOLT 20X15,8/12X50PISTON PIN BOLT 20X15,8/12X50
-
3459030074000 CIRCLIP C20X1,5CIRCLIP C20X1,5
-
4059530007000I PISTON 189MM CPL. CASTPISTON 189MM CPL. CAST
-
4059530007000II PISTON II 89MM CPL. CASTPISTON II 89MM CPL. CAST
-
4159530031000 OIL SCRAPER RING 89/81,5X3OIL SCRAPER RING 89/81,5X3
-
4257530032000 RECTANGULAR RING 89MMRECTANGULAR RING 89MM
