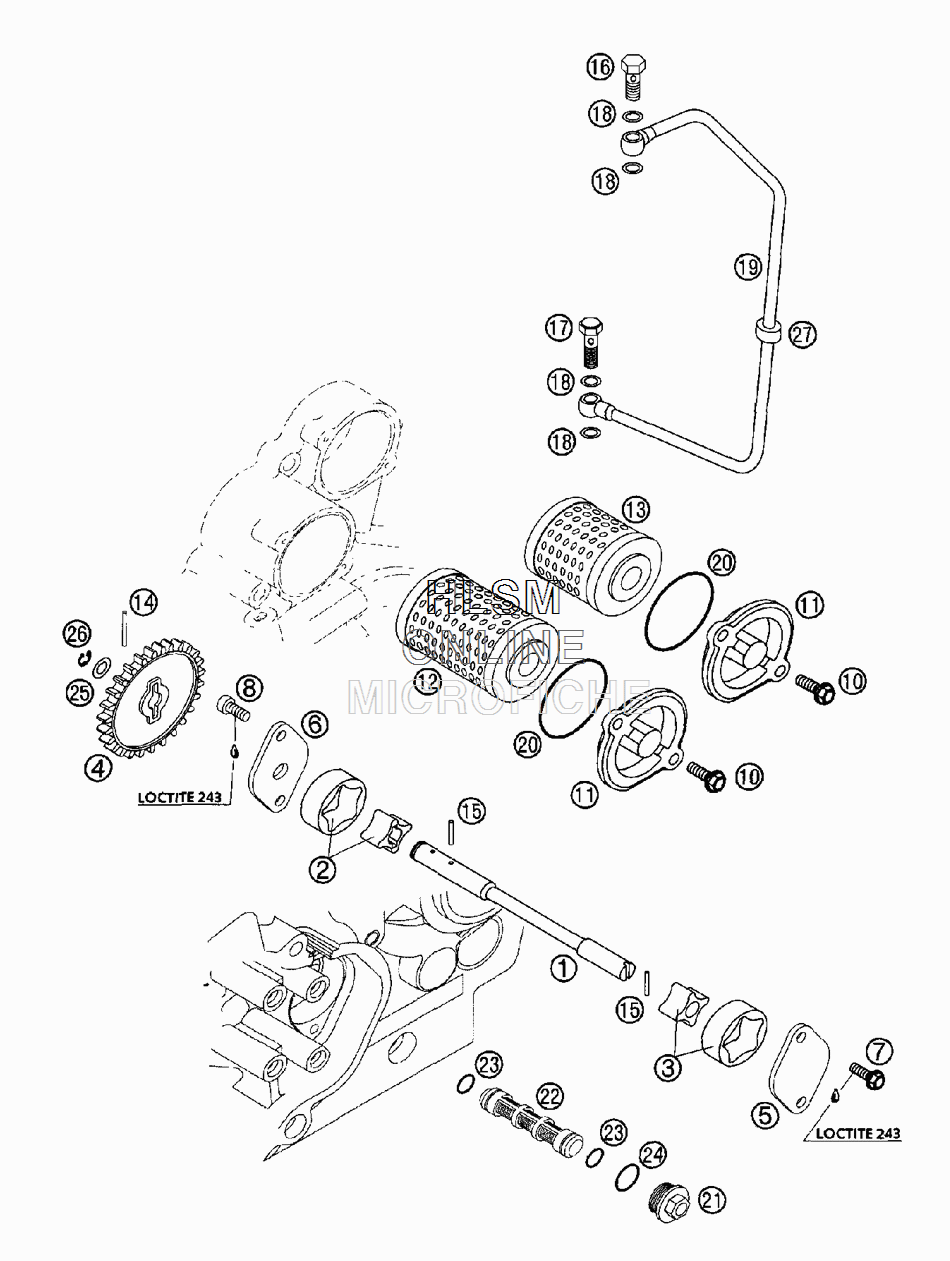

LUBRICATING SYSTEM для Ktm 400 SX RFS - 2002 года выпуска
-
№АртикулНазвание
-
159038002000 OIL PUMP SHAFT L=148,5MMOIL PUMP SHAFT L=148,5MM
-
259038011010 OIL PUMP ROTOR CPL. 10MM G-73ROIL PUMP ROTOR CPL. 10MM G-73R
-
359038011012 OIL PUMP ROTOR CPL. 12MM G-95OIL PUMP ROTOR CPL. 12MM G-95
-
458438001000 OIL PUMP GEAR 26-TOIL PUMP GEAR 26-T
-
559038004000 OIL PUMP COVER L/SOIL PUMP COVER L/S
-
659038003000 OIL PUMP COVER R/S 8MMOIL PUMP COVER R/S 8MM
-
70015050163 HH COLLAR SCREW M 5X16 WS=8HH COLLAR SCREW M 5X16 WS=8
-
80984050122 AH SCREW DIN6912-M 5X12AH SCREW DIN6912-M 5X12
-
100015050163 HH COLLAR SCREW M 5X16 WS=8HH COLLAR SCREW M 5X16 WS=8
-
1159038041000 OIL FILTER COVER RACINGOIL FILTER COVER RACING
-
1258038005000 OIL FILTER LONGOIL FILTER LONG
-
1359038046000 OIL FILTER SHORTOIL FILTER SHORT
-
140402251980 NEEDLEROL.DIN5402 NRA 2,5X19,8NEEDLEROL.DIN5402 NRA 2,5X19,8
-
150402251180 NEEDLE ROLLER DIN5402 2,5X11,8NEEDLE ROLLER DIN5402 2,5X11,8
-
1658038030000 BANJO BOLT M8 X 1 DIN7643BANJO BOLT M8 X 1 DIN7643
-
1759038029000 JET SCREW 000 M8X1 WS=12JET SCREW 000 M8X1 WS=12
-
180603082121 SEAL RING CU DIN7603- 8X12X1SEAL RING CU DIN7603- 8X12X1
-
1959038035000 OIL LINE STEEL CASE-CYL.HEADOIL LINE STEEL CASE-CYL.HEAD
-
200770400025 O-RING 40,00X2,50 NBR 70O-RING 40,00X2,50 NBR 70
-
2159038017000 PLUG M20X1,5 WS=13PLUG M20X1,5 WS=13
-
2259038016000 OIL SCREEN 15X83MMOIL SCREEN 15X83MM
-
230770125015 O-RING 12,5X1,5 NBRO-RING 12,5X1,5 NBR
-
240770020170 O-RING 17,17X1,78 GLOO-RING 17,17X1,78 GLO
-
2558038007755 STOP DISK 8,1 X 15 X 0,5STOP DISK 8,1 X 15 X 0,5
-
260799060000 TAB WASHER DIN6799-RS 6,0TAB WASHER DIN6799-RS 6,0
-
2758405098000 RUBBERBUFFER 8X17X10 SILENCRUBBERBUFFER 8X17X10 SILENC
