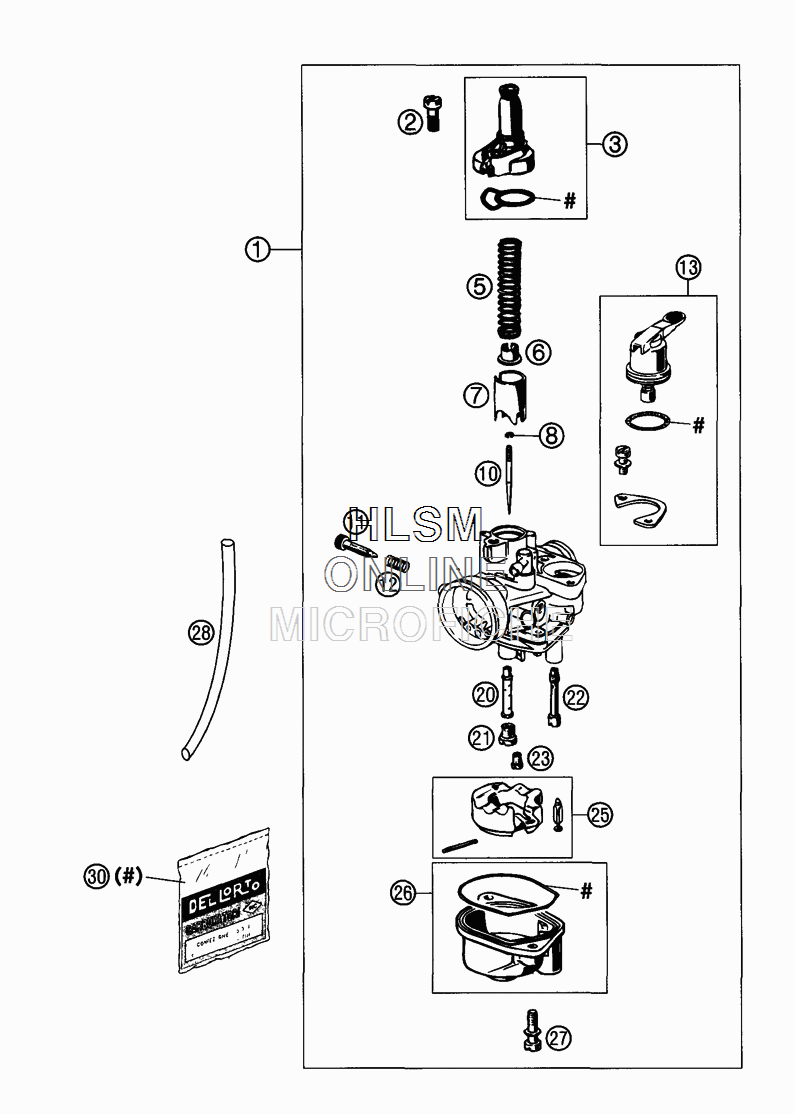

CARBURETOR DELLORTO 1`4 для Ktm 50 SX Sr Adventure - 2002 года выпуска
-
№АртикулНазвание
-
145131001000 CARBURETOR CPL.DELLO.14PHVA DSCARBURETOR CPL.DELLO.14PHVA DS
-
20084050163 CYL.HEAD SCREW DIN0084-M 5X16ACYL.HEAD SCREW DIN0084-M 5X16A
-
345131527000 CARBURETOR COVER DELLORTO 14CARBURETOR COVER DELLORTO 14
-
545131530000 SPRINGSPRING
-
645131531000 SPRING CAPSPRING CAP
-
745131535000 THROTTLE VALVE 40THROTTLE VALVE 40
-
845131545000 CLAMP SPRINGCLAMP SPRING
-
1045131534010 JET NEEDLE A10JET NEEDLE A10
-
1145131517000 IDLE ADJUST SCREWIDLE ADJUST SCREW
-
1245131516000 SPRING FOR IDLE ADJUST SCREWSPRING FOR IDLE ADJUST SCREW
-
1345131548000 STARTING LEVER CPL. DELLORT.14STARTING LEVER CPL. DELLORT.14
-
2045131536000 ATOMIZER 211 FAATOMIZER 211 FA
-
2159030054000 JET 60 DELLORTO M6X0,75JET 60 DELLORTO M6X0,75
-
2145131023070 MAIN JET 70 DELLORTOMAIN JET 70 DELLORTO
-
2145131023080 MAIN JET 80 DELLORTOMAIN JET 80 DELLORTO
-
2245131551060 STARTING JET 60STARTING JET 60
-
2345131507035 IDLING JET 35IDLING JET 35
-
234513150045 IDLING JET 45IDLING JET 45
-
2545131509000 FLOAT CPL.FLOAT CPL.
-
2645131511000 FLOAT BOWL DELLORTO 14FLOAT BOWL DELLORTO 14
-
270084040203 CYL.SCREW DIN0084-M 4X20 ACYL.SCREW DIN0084-M 4X20 A
-
2852031137001 PVC-HOSE 3X5MMPVC-HOSE 3X5MM
-
3045131599000 GASKET SET DELLORTO 14 PHVA DSGASKET SET DELLORTO 14 PHVA DS
