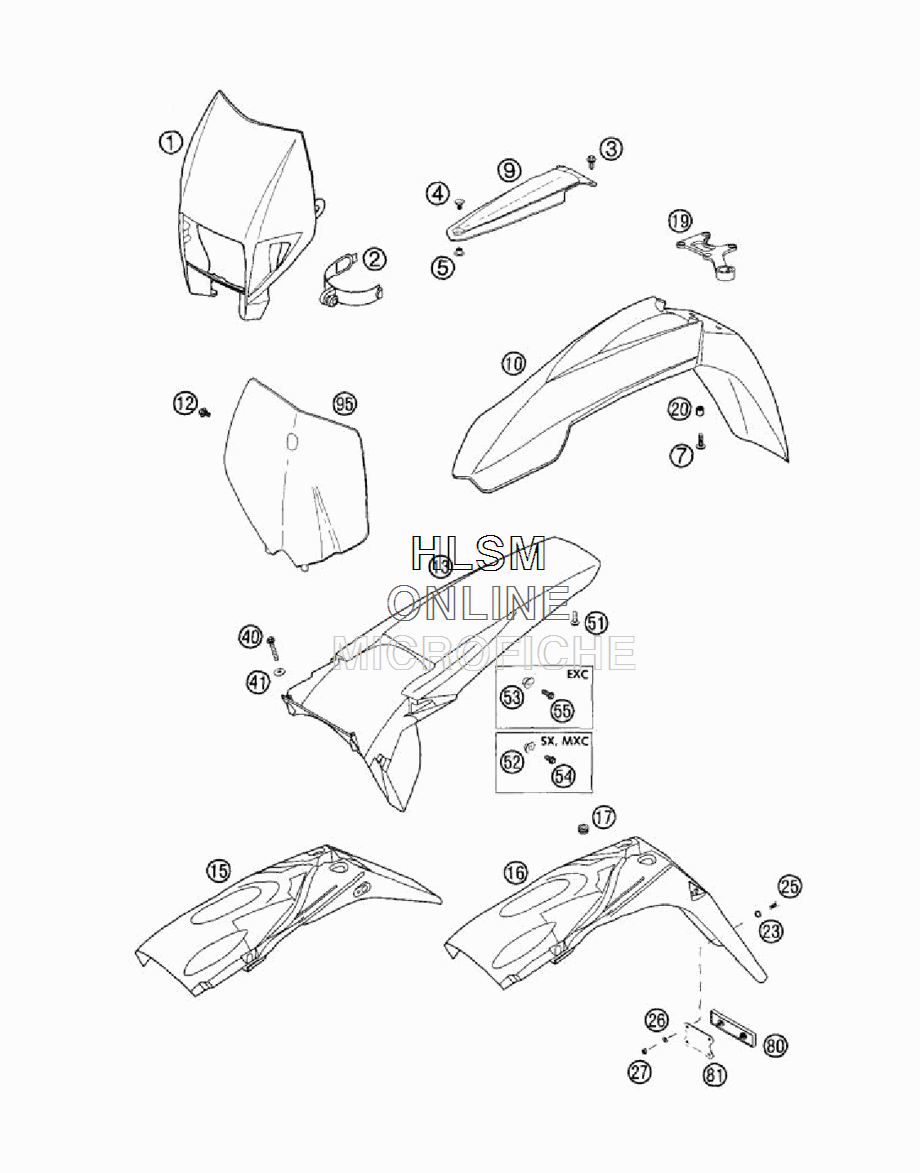

MASK W/ FENDERS для Ktm 520 EXC Racing - 2002 года выпуска
-
№АртикулНазвание
-
15030800100004 H.LIGHT MASK ORANGEH.LIGHT MASK ORANGE
-
250211086000 MASK RUBBER UFO WPMASK RUBBER UFO WP
-
30014060153 HH COLLAR SCREW M 6X15 WS=8HH COLLAR SCREW M 6X15 WS=8
-
450308009050 SCREW FEND.BRACE M8X9 WS=17SCREW FEND.BRACE M8X9 WS=17
-
550308009051 NUT FENDER BRACE M8 WS=17NUT FENDER BRACE M8 WS=17
-
70014060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
950308009100 FENDER BRACE BLACKFENDER BRACE BLACK
-
105030801010004 FENDER FRONT ORANGEFENDER FRONT ORANGE
-
120014060103 HH COLLAR SCREW M6X10 WS=8HH COLLAR SCREW M6X10 WS=8
-
135030801310030 FENDER REAR EXC BLACKFENDER REAR EXC BLACK
-
1550308015000 NUMBER PLATE CARRIERNUMBER PLATE CARRIER
-
1650308015100 NUMBER PLATE CARRIER (EGS)NUMBER PLATE CARRIER (EGS)
-
1731008060000 RUBBER SLEEVE D=8MM OPENRUBBER SLEEVE D=8MM OPEN
-
1959008019000 BRAKE HOSE GUIDEBRAKE HOSE GUIDE
-
2050208020000 SPACER BUSHING 7X10X7,5SPACER BUSHING 7X10X7,5
-
2340006006000 WASHER 6MMWASHER 6MM
-
250966050163 OVAL HEAD SCREW DIN0966-M 5X16OVAL HEAD SCREW DIN0966-M 5X16
-
260125050003 WASHER DIN0125-A 5,0WASHER DIN0125-A 5,0
-
270985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
-
400017060403 SPECIAL SCREW T60 6X40SPECIAL SCREW T60 6X40
-
410125060003 WASHER DIN0125-A 6,4WASHER DIN0125-A 6,4
-
510017060203 SPECIAL SCREW T60 6X20SPECIAL SCREW T60 6X20
-
5250308052100 BUSH FOR FENDER 6X11X20X5BUSH FOR FENDER 6X11X20X5
-
5350308053100 BUSH F.NUM.PL.CAR. 6X11X22X9,5BUSH F.NUM.PL.CAR. 6X11X22X9,5
-
540015060123 HH COLLAR SCREW M 6X12 WS=8HH COLLAR SCREW M 6X12 WS=8
-
550015060163 HH COLLAR SCREW M 6X16 WS=8HH COLLAR SCREW M 6X16 WS=8
-
8058412080000 REFLECTOR REDREFLECTOR RED
-
8158412080050 BRACKET FOR REFLECTORBRACKET FOR REFLECTOR
-
955030800700004 NUMBER PLATE ORANGENUMBER PLATE ORANGE
