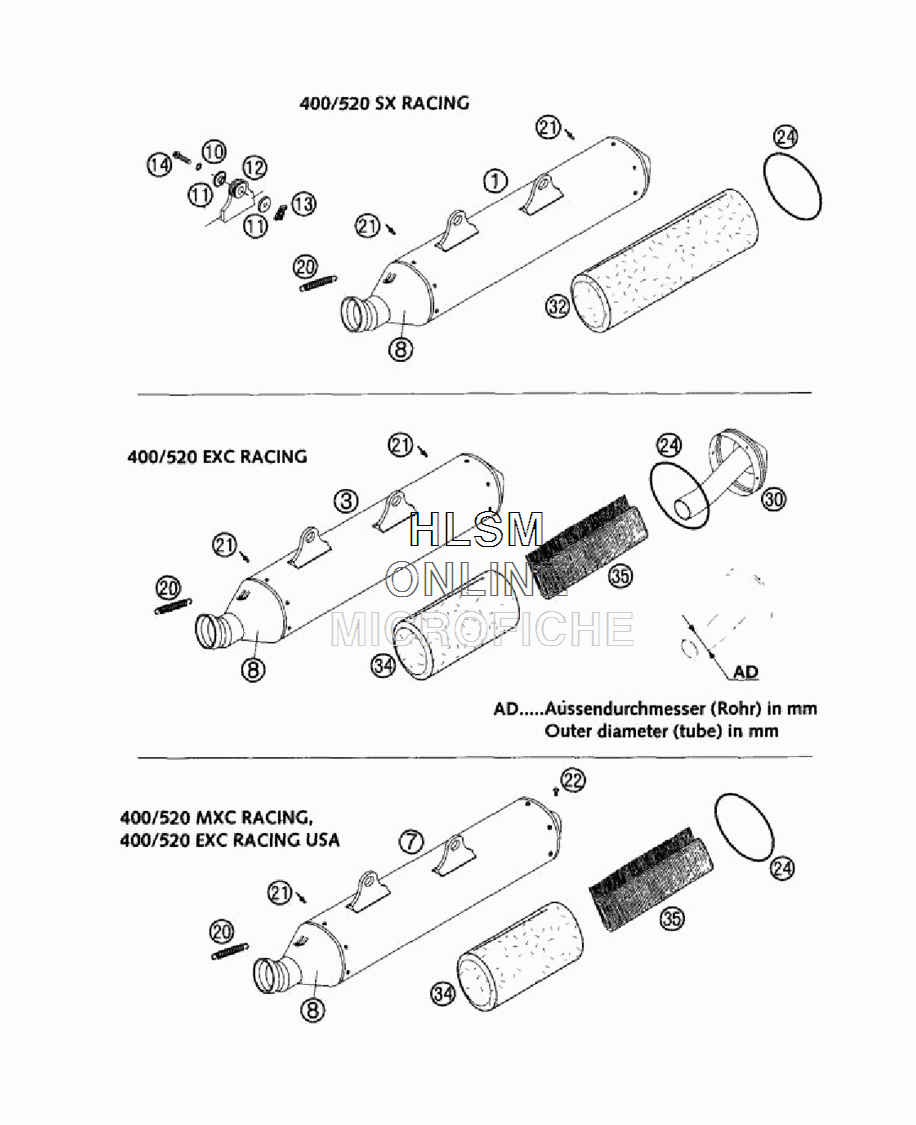

EXHAUST SILENCER для Ktm 520 SX Racing - 2002 года выпуска
-
№АртикулНазвание
-
159005079200 SILENCER 400/520 SXSILENCER 400/520 SX
-
859005081052 SILENC.CONNECTING CAP CPL.SILENC.CONNECTING CAP CPL.
-
100137060003 SPRING WASHER DIN0137-B 6SPRING WASHER DIN0137-B 6
-
1154605069000 BUSHING 7,5X12X28X7,8BUSHING 7,5X12X28X7,8
-
1254605068000 EXHAUST BRACKET RUBBER BLACKEXHAUST BRACKET RUBBER BLACK
-
1354603048100 RANGE CHANGE METAL NUT M6RANGE CHANGE METAL NUT M6
-
140015060303 HH COLLAR SCREW M 6X30 WS=8HH COLLAR SCREW M 6X30 WS=8
-
2050305016000 TENSION SPRING L=55MMTENSION SPRING L=55MM
-
210011481002 DUMMY RIVET 4,8X10,0 NIRODUMMY RIVET 4,8X10,0 NIRO
-
220009050103 SPECIAL SCREW M 5,0X10SPECIAL SCREW M 5,0X10
-
240770223601 O-RING 82,14X3,53 SILIKONO-RING 82,14X3,53 SILIKON
-
3059505081050 ENDCAP (AD=30)ENDCAP (AD=30)
-
3259005078550 STUFF.YARN 550GRAMM L=550MMSTUFF.YARN 550GRAMM L=550MM
Все узлы модели:
- ACCESSORIES
- AIR FILTER BOX
- BALANCER SHAFT
- BRAKE CALIPER FRONT
- BRAKE CALIPER REAR
- CARBURETOR KEIHIN CR39
- CLUTCH
- COOLING SYSTEM
- CRANKSHAFT PISTON
- CYLINDER
- CYLINDER HEAD
- DECAL
- ELECTRIC STARTER
- ENGINE CASE
- EXHAUST PIPE INTERM. TUBE
- • EXHAUST SILENCER
- FORK LEGS (USD 48)
- FRAME - SUB FRAME
- FRONT FORK (WHITE POWER)
- FRONT WHEEL (EU)
- HAND BRAKE CYLINDER
- HANDLEBAR W/ CONTROLS
- HEADLIGHT W/ REAR LIGHT - FLASHER
- IGNITION SYSTEM KOKUSAN 4K3A
- IGNITION SYSTEM KOKUSAN 4K3B
- KICKSTARTER
- LUBRICATING SYSTEM
- MASK W/ FENDERS
- REAR BRAKE CONTROL
- REAR WHEEL
- SHIFTING MECHANISM
- SHOCK ABSORBER
- SHOCK ABSORBER (DISASSEMBLED)
- SIDE STAND
- SPECIAL TOOLS
- SWINGARM W/ CHAIN GUARD
- TANK - SEAT - COVER
- TIMING VALVE
- TRANSMISSION - MAINSHAFT
- TRANSMISSION I 4 GEAR
- VALVE DRIVE
