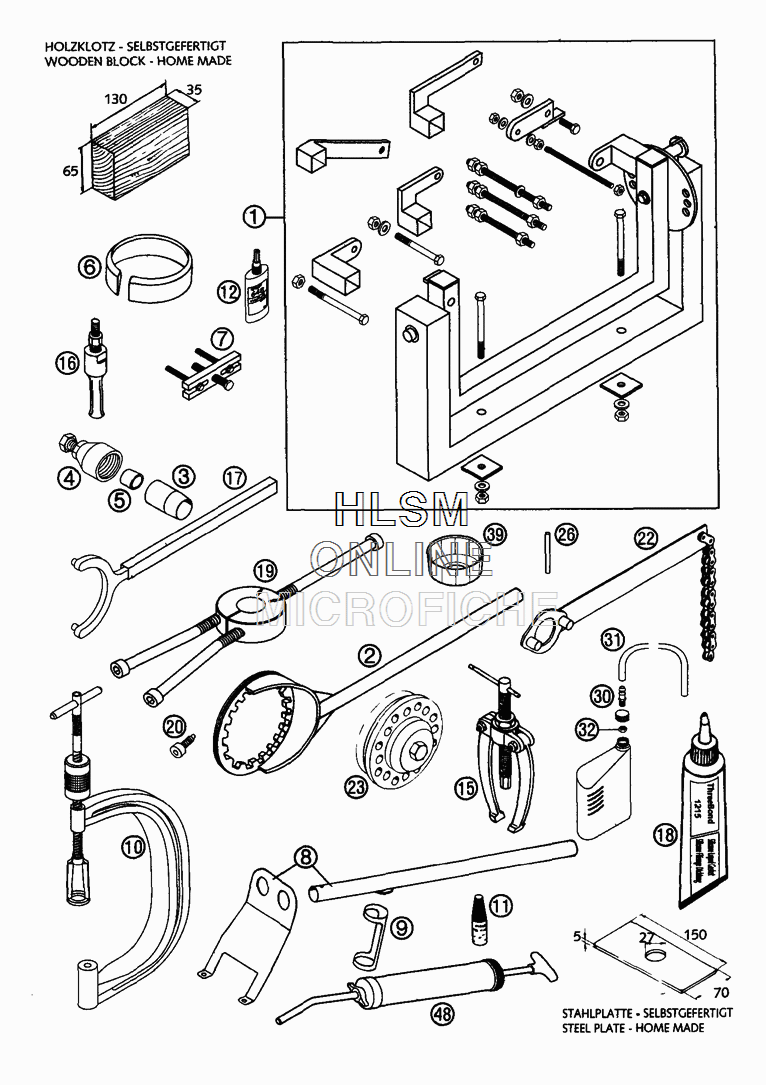

SPECIAL TOOL для Ktm LC4 640 Adventure - 2002 года выпуска
-
№АртикулНазвание
-
156012001000 UNIVERSAL MOUNTING RACKUNIVERSAL MOUNTING RACK
-
258329003000 CLUTCH HOLDER D=160MMCLUTCH HOLDER D=160MM
-
358012005025 MOUNTING SLEEVE D=25MM (FOR CRANKSHAFT SEAL L/S)MOUNTING SLEEVE D=25MM (FOR CRANKSHAFT SEAL L/S)
-
458429009000 MAGNETO EXTRACTORMAGNETO EXTRACTOR
-
558429031000 PROTECTOR CAP F.CRANKSHAFT M16PROTECTOR CAP F.CRANKSHAFT M16
-
658012015101 PISTON RING COMPRESSOR D=101 MM,PISTON RING COMPRESSOR D=101 MM,
-
759029021000 EXTRACT.PRIM.GEAR-INNER CLUTCH (F.PRIM.GEAR D.INNER CLUTCHHUEXTRACT.PRIM.GEAR-INNER CLUTCH (F.PRIM.GEAR D.INNER CLUTCHHU
-
858012019000 VALVE INSTALLATION KITVALVE INSTALLATION KIT
-
96276470 PUSH INSERTPUSH INSERT
-
1059029019000 VALVE SPRING LEVERVALVE SPRING LEVER
-
116899785 LOCTITE 243 BLUE 6CCMLOCTITE 243 BLUE 6CCM
-
1258429059000 LOCTITE 648 GREEN 20MLLOCTITE 648 GREEN 20ML
-
1515112017000 BEARING EXTRACTORBEARING EXTRACTOR
-
1615112018000 INTERN.BEAR.PULLER 12-16 MMINTERN.BEAR.PULLER 12-16 MM
-
1615112018100 INTERN.BEAR.PULLER 18-23 MMINTERN.BEAR.PULLER 18-23 MM
-
1758429012000 HOLDING WRENCH FOR WHEELHOLDING WRENCH FOR WHEEL
-
18309098 SILICON GASKET THREE-BONDSILICON GASKET THREE-BOND
-
1958429037043 MOUNTING TOOL F.BEARING NJ 207MOUNTING TOOL F.BEARING NJ 207
-
1958429037040 MOUNTING TOOL F.BEARING NJ 306MOUNTING TOOL F.BEARING NJ 306
-
2058030080000 LOCATING SCREW M8LOCATING SCREW M8
-
2251012012000 HOLDING SPANNER FOR SPROCKETHOLDING SPANNER FOR SPROCKET
-
2354629027000 RIVETTING TOOL FOR CLUTCHRIVETTING TOOL FOR CLUTCH
-
2658029026007 LIMIT PLUG GAUGE F VALVE GUIDE (D=7,05MM)LIMIT PLUG GAUGE F VALVE GUIDE (D=7,05MM)
-
3059030022000 BLEEDER FLANGE M8 WS=10BLEEDER FLANGE M8 WS=10
-
3131007107001 PVC-HOSE 6X9 MM PER METREPVC-HOSE 6X9 MM PER METRE
-
320934080003 HEXAGON NUT DIN0934-M 8HEXAGON NUT DIN0934-M 8
-
3958329039000 WRENCH SCREW FILTERWRENCH SCREW FILTER
-
4858429048000 INJEKTION FOR FRONT PIPE (DEAERATE FOR FRONT PIPE)INJEKTION FOR FRONT PIPE (DEAERATE FOR FRONT PIPE)
