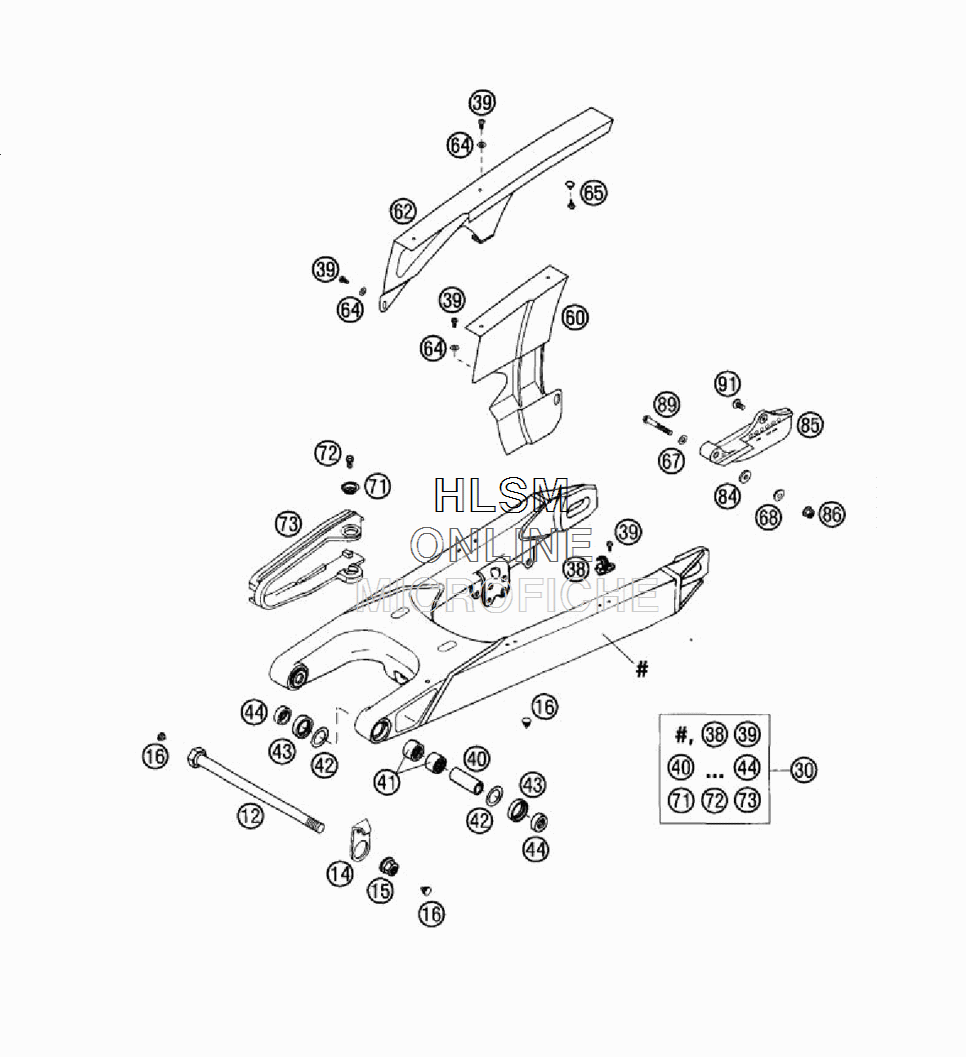

SWINGARM W/ CHAIN GUARD для Ktm LC4 640 Six Days - 2002 года выпуска
-
№АртикулНазвание
-
1254603014000 SWINGARM BOLT 15X250SWINGARM BOLT 15X250
-
1450230211000 BRAKE HOSE GUIDEBRAKE HOSE GUIDE
-
1554603015000 SELF LOCKING NUT M14X1,5 WS=19SELF LOCKING NUT M14X1,5 WS=19
-
1654403135000 PLASTIC CAP SFL10PLASTIC CAP SFL10
-
3058404030044 SWINGARM CPL. L=567MMSWINGARM CPL. L=567MM
-
3854611076100 RETAIN. CLAMP FOR BRAKE HOSERETAIN. CLAMP FOR BRAKE HOSE
-
390010050103 SPECIAL SCREW M 5,0X10SPECIAL SCREW M 5,0X10
-
4050203081700 BEARING SLEEVE 15X20X38,7BEARING SLEEVE 15X20X38,7
-
4159004031000 NEEDLE BUSH HK2012VNEEDLE BUSH HK2012V
-
4259004033000 STOP DISK 22,2X31,7X0,8STOP DISK 22,2X31,7X0,8
-
430760253270 SHAFT SEAL RING 25X32X7SHAFT SEAL RING 25X32X7
-
4454603090000 BUCKET F.SHAFT SEALRING 15X25X9BUCKET F.SHAFT SEALRING 15X25X9
-
6058307060000 CHAINGUARD SMALLCHAINGUARD SMALL
-
6258307060150 CHAINGUARD LARGECHAINGUARD LARGE
-
640021050003 WASHER DIN9021-A 5,3WASHER DIN9021-A 5,3
-
6520012062055 HOLLOW RIVET TWO PARTSHOLLOW RIVET TWO PARTS
-
670125060003 WASHER DIN0125-A 6,4WASHER DIN0125-A 6,4
-
6858404060050 WASHER CHAINGUARD 6,5X10X16X6WASHER CHAINGUARD 6,5X10X16X6
-
7172210079000 BUCKETBUCKET
-
720015060103 HH COLLAR SCREW M 6X10 WS=8HH COLLAR SCREW M 6X10 WS=8
-
7358307073000 CHAIN SLIDING GUARDCHAIN SLIDING GUARD
-
8450232050001 STEEL WASHER 6X17X3STEEL WASHER 6X17X3
-
8558404070000 CHAIN GUIDE CPL. REARCHAIN GUIDE CPL. REAR
-
8656509064100 SELF LOCKING NUT M6 10.9SELF LOCKING NUT M6 10.9
-
890015060503 HH COLLAR SCREW M 6X50 WS=8HH COLLAR SCREW M 6X50 WS=8
-
910014060103 HH COLLAR SCREW M 6X10 WS=8HH COLLAR SCREW M 6X10 WS=8
