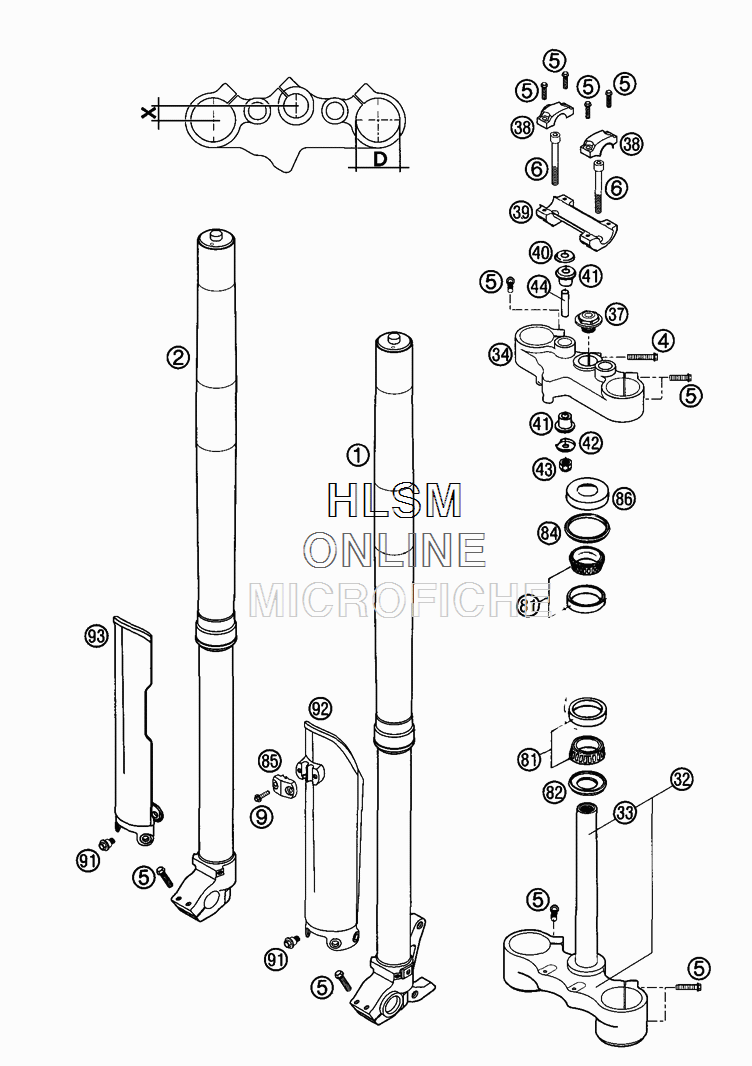

FRONT FORK - 43 для Ktm LC4 640 Super Moto - 2002 года выпуска
-
№АртикулНазвание
-
10518W722LS FORK LEG L/S WP43FORK LEG L/S WP43
-
20518W722RS FORK LEG R/S WP43FORK LEG R/S WP43
-
40015080353 HH COLLAR SCREW M 8X35 WS=10HH COLLAR SCREW M 8X35 WS=10
-
50015080303 HH COLLAR SCREW M 8X30 WS=10HH COLLAR SCREW M 8X30 WS=10
-
60984100703 AH SCREW DIN6912-M10X70AH SCREW DIN6912-M10X70
-
90017060203 SPECIAL SCREW T60 6X20SPECIAL SCREW T60 6X20
-
3258401032018 BOT.TRIPLE CLAMP X=18MM/D=57MMBOT.TRIPLE CLAMP X=18MM/D=57MM
-
3350101033100 FORK TUBE L=244FORK TUBE L=244
-
3458401034218 TOP TRIPLE CLAMP X=18MM/D=57MMTOP TRIPLE CLAMP X=18MM/D=57MM
-
3750301036000 STEER.HEAD SCREW M20X1,5 WS=27STEER.HEAD SCREW M20X1,5 WS=27
-
3859001038200 HANDLEBAR CLAMP D=28MMHANDLEBAR CLAMP D=28MM
-
3959001039100 HANDLEBAR SUPPORT 28MMHANDLEBAR SUPPORT 28MM
-
4056401042000 WASHER 10,5X32X2WASHER 10,5X32X2
-
4156401040000 RUBBER BUSHINGRUBBER BUSHING
-
4256401142000 WASHER 10,5X31WASHER 10,5X31
-
430982100003 SELF LOCK.NUT DIN0982-M10 HIGHSELF LOCK.NUT DIN0982-M10 HIGH
-
4456401041100 SPACER TUBE 10,2X12X44SPACER TUBE 10,2X12X44
-
8154201081000 TAPERED ROLLER BEARINGTAPERED ROLLER BEARING
-
8254601084100 O-RING SUPPORT W. SEALING LIPO-RING SUPPORT W. SEALING LIP
-
8454601184000 STEERING HEAD GASKET TOPSTEERING HEAD GASKET TOP
-
8559001:085100 CLAMP F.SPEED.CABLE D=6MMCLAMP F.SPEED.CABLE D=6MM
-
8654201086000 STEERING HEAD COVERSTEERING HEAD COVER
-
9159001092050 SPECIAL SCREW M6X12,5 WS=8SPECIAL SCREW M6X12,5 WS=8
-
9259001092100 FORK PROTECTION L/S BLACKFORK PROTECTION L/S BLACK
-
9359001093100 FORK PROTECTION R/S BLACKFORK PROTECTION R/S BLACK
