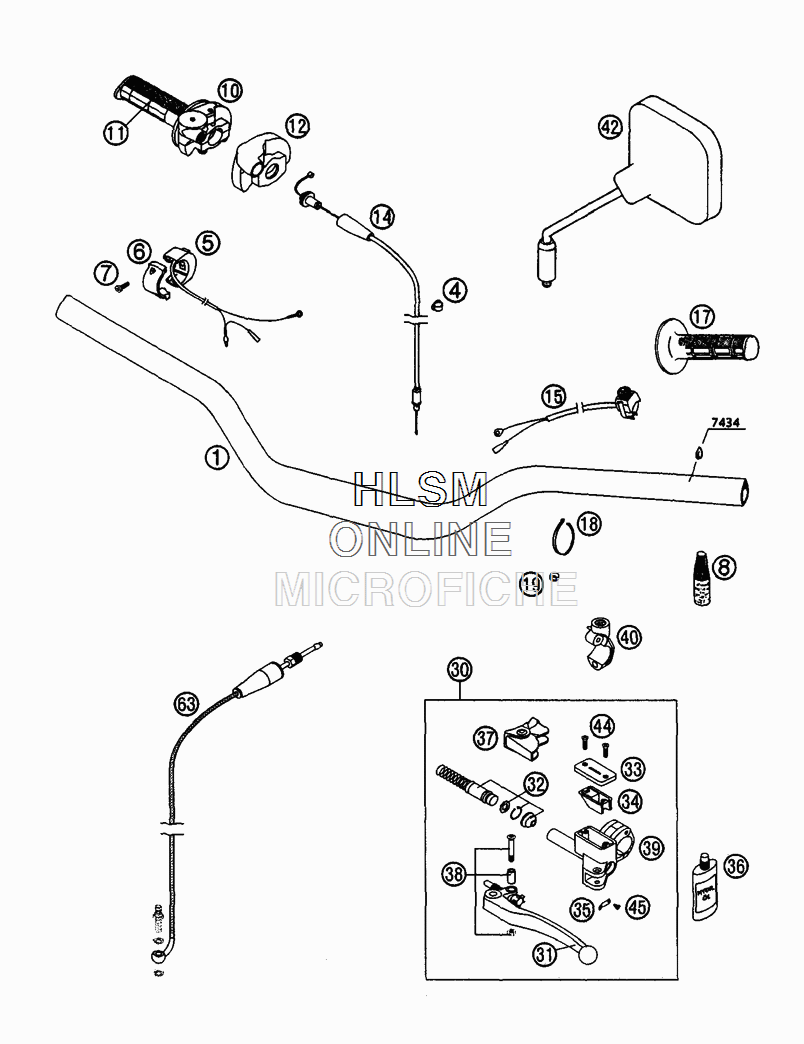

HANDLEBAR W/ CONTROLS для Ktm 125 SX - 2003 года выпуска
-
№АртикулНазвание
-
154802001000 HANDLEBAR D=28MM LOWHANDLEBAR D=28MM LOW
-
159002001000 HANDLEBAR HIGHHANDLEBAR HIGH
-
457013072000 WIRING HOLDER 12MMWIRING HOLDER 12MM
-
550311074000 ENGINE STOP SWITCH CEV EXC AUSTRALIAENGINE STOP SWITCH CEV EXC AUSTRALIA
-
650311074050 CLAMP ENGINE STOP SWITCH CEVCLAMP ENGINE STOP SWITCH CEV
-
70985040153 FLAT HEAD SCREW DIN7985-M 4X15FLAT HEAD SCREW DIN7985-M 4X15
-
86899792 GLUE CYANACRYLAT 7434GLUE CYANACRYLAT 7434
-
1050302010000 THR.TWIST GRIP CPL. W.O.C.THR.TWIST GRIP CPL. W.O.C.
-
1150202003000 TWIST GRIP COVER DOMINO BLACKTWIST GRIP COVER DOMINO BLACK
-
1250302020000 PROTECTION COVERPROTECTION COVER
-
1450302091000 THROTTLE C.THROTTLE C.
-
1550311089200 SHORT CIRCUIT BUTTONSHORT CIRCUIT BUTTON
-
1750202052000 FIXED GRIP DOMINO BLACKFIXED GRIP DOMINO BLACK
-
1844011076200 CABLE TIE 200/3,6MM BLACKCABLE TIE 200/3,6MM BLACK
-
1950301089000 SPACER BUSHING 6X10X5SPACER BUSHING 6X10X5
-
3050302030100 MASTER CYL. CPL. ZINC COATEDMASTER CYL. CPL. ZINC COATED
-
3150302031100 CLU. LEVER SHORT CPL. 2TCLU. LEVER SHORT CPL. 2T
-
3150302031000 CLUTCH LEVER CPL.CLUTCH LEVER CPL.
-
3250302032000 REP. SATZ PISTON CLUT. HYDR.REP. SATZ PISTON CLUT. HYDR.
-
3350302033100 COVER HYD.CLUTCH 2T ZINC COATEDCOVER HYD.CLUTCH 2T ZINC COATED
-
3450302034000 RUBBER FOR RESERVOIRRUBBER FOR RESERVOIR
-
3550302035000 SPRING PLATE FOR LEVERSPRING PLATE FOR LEVER
-
3650302036000 OIL FOR HYD. CLUTCH 50MLOIL FOR HYD. CLUTCH 50ML
-
3750302037000 PROTECT.CAP FOR LEVER PERCHPROTECT.CAP FOR LEVER PERCH
-
3850302038000 LEVER SCREW CPL.LEVER SCREW CPL.
-
3950302030150 CLAMP WITH PIN ZINC COATEDCLAMP WITH PIN ZINC COATED
-
4059002044000 CLAMP MIRROR WITH PINCLAMP MIRROR WITH PIN
-
4258012040000 REAR MIRROR L/SREAR MIRROR L/S
-
4258012140000 REAR MIRROR R/SREAR MIRROR R/S
-
440965040123 FLAT HEAD SCREW DIN0965-M 4X12FLAT HEAD SCREW DIN0965-M 4X12
-
450984030063 AH SCREW DIN7984-M 3X 6AH SCREW DIN7984-M 3X 6
-
6350332063100 CLUTCH PIPECLUTCH PIPE
