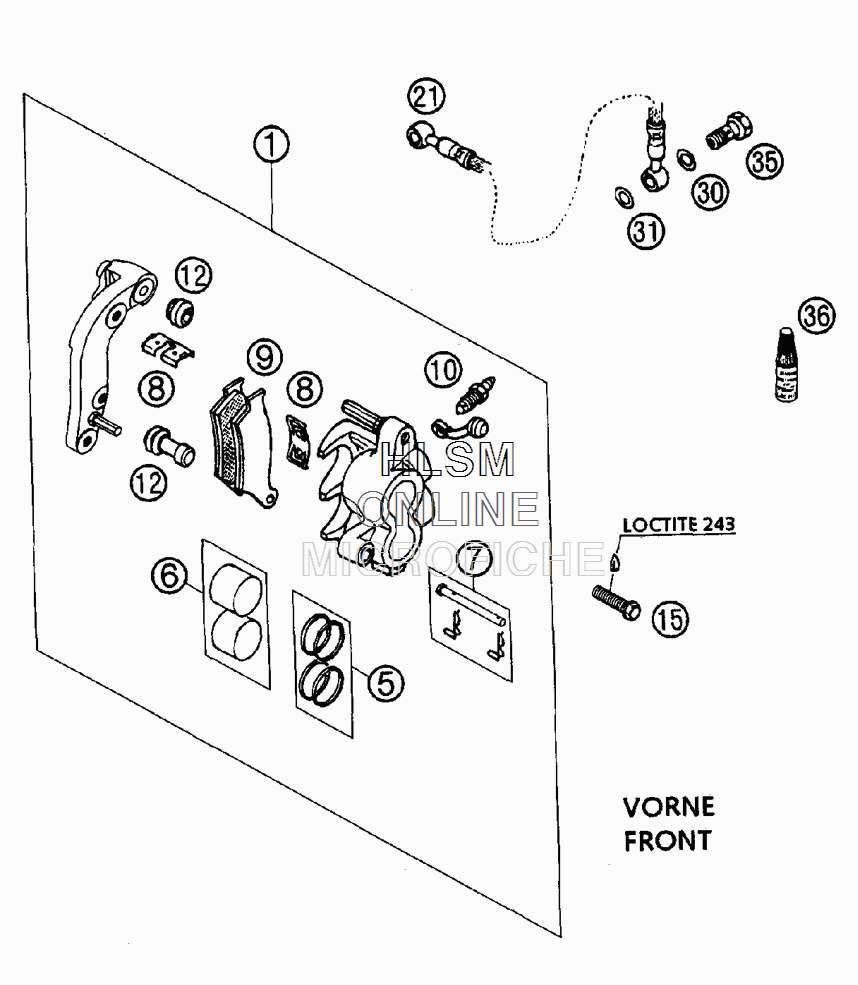

BRAKE CALIPER FRONT для Ktm 200 EXC - 2003 года выпуска
-
№АртикулНазвание
-
159013015144 BRAKE CALIPER FRONTBRAKE CALIPER FRONT
-
554613205000 REPAIR KIT 28MMREPAIR KIT 28MM
-
654613206000 REPAIR KIT PISTON 28MMREPAIR KIT PISTON 28MM
-
754613210100 BOLT CPL. 6X56BOLT CPL. 6X56
-
854613212000 RETAINING PLATE SETRETAINING PLATE SET
-
950313030000 BRAKE PAD SET FR. TOSHIBA H38BRAKE PAD SET FR. TOSHIBA H38
-
954613209044 BRAKE PAD SET FR. FERODO ID450BRAKE PAD SET FR. FERODO ID450
-
950313030100 BRAKE P.SET FR. TOSHIBA TT2701BRAKE P.SET FR. TOSHIBA TT2701
-
1054513214000 BLEEDER SCREW M10X1BLEEDER SCREW M10X1
-
1254613218000 CUP SET SHORTCUP SET SHORT
-
150015080353 HH COLLAR SCREW M 8X35 WS=10HH COLLAR SCREW M 8X35 WS=10
-
2159013011000 BRAKEHO. FRONT 1300MMBRAKEHO. FRONT 1300MM
-
3042013226000 CU-SEAL RING DIN7603-10X16X1CU-SEAL RING DIN7603-10X16X1
-
3142013026000 CU-SEAL RING DIN7603-10X16X1,5CU-SEAL RING DIN7603-10X16X1,5
-
3550213025000 HOLLOW SCREW M10X1X19HOLLOW SCREW M10X1X19
-
366899785 LOCTITE 243 BLUE 6CCMLOCTITE 243 BLUE 6CCM
