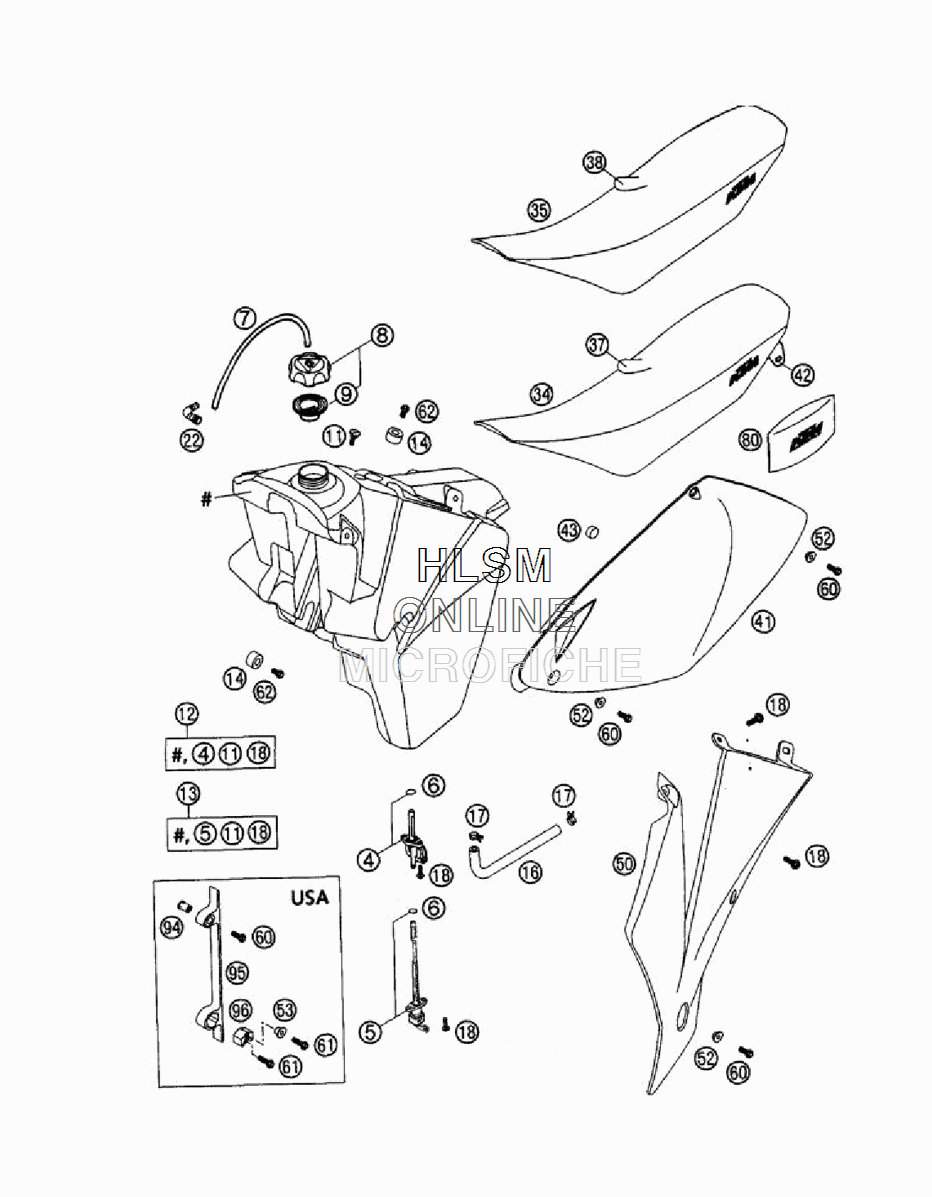

TANK - SEAT - COVER для Ktm 200 MXC - 2003 года выпуска
-
№АртикулНазвание
-
450307005000 GAS COCK MIKUNI ON/OFFGAS COCK MIKUNI ON/OFF
-
554807004000 FUEL TANK ON/OFF/RESFUEL TANK ON/OFF/RES
-
60770130023 O-RING 13,00X2,30O-RING 13,00X2,30
-
731007107001 PVC-HOSE 6X9 MM PER METREPVC-HOSE 6X9 MM PER METRE
-
859007008044 FILLER CAP CPL. SMALLFILLER CAP CPL. SMALL
-
959007009000 GASKET FOR FILLER CAP HIGHGASKET FOR FILLER CAP HIGH
-
1150307011000 SCREW SEAT FASTENING D=6X23/18SCREW SEAT FASTENING D=6X23/18
-
125030711300004 FUEL TANK CPL. 7,5L ORANGEFUEL TANK CPL. 7,5L ORANGE
-
135030711310044 FUEL TANK CPL. 11LFUEL TANK CPL. 11L
-
135030711320044 FUEL TANK CPL. 9LFUEL TANK CPL. 9L
-
1450307014000 TANK ROLLER 12X26X12TANK ROLLER 12X26X12
-
1650307016000 FUEL PREFORMED HOSEFUEL PREFORMED HOSE
-
1758031005000 CLAMP YDNAC 10128 12MMCLAMP YDNAC 10128 12MM
-
180017060203 SPECIAL SCREW T60 6X20 WS=6SPECIAL SCREW T60 6X20 WS=6
-
2251030022000 ANGLE PIECE 90 DEGREE M10X1ANGLE PIECE 90 DEGREE M10X1
-
3450307140200 SEAT BLACK WITH KTM-LOGOSEAT BLACK WITH KTM-LOGO
-
3750307140250 SEAT COVER BLACKSEAT COVER BLACK
-
415030804100004 SIDE COVER L/S ORANGESIDE COVER L/S ORANGE
-
415030804200004 SIDE COVER R/S ORANGESIDE COVER R/S ORANGE
-
4250307041000 SEAT BRACKET L/S-R/SSEAT BRACKET L/S-R/S
-
4350308042055 RUBBER FOR SIDE COVERRUBBER FOR SIDE COVER
-
5250308052000 BUSH FOR SPOILER 6X11X16X5BUSH FOR SPOILER 6X11X16X5
-
5350308053000 BUSH FOR SPOILER 6X11X16X7,5BUSH FOR SPOILER 6X11X16X7,5
-
600015060163 HH COLLAR SCREW M 6X16 WS=8HH COLLAR SCREW M 6X16 WS=8
-
610015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
620015060123 HH COLLAR SCREW M 6X12 WS=8HH COLLAR SCREW M 6X12 WS=8
-
8050212100100 TOOL SETTOOL SET
-
9455003139600 BLIND RIVET NUT M 6X15,5 STEELBLIND RIVET NUT M 6X15,5 STEEL
-
9550335095000 SPOILER ADAPTER 12 LI. TANKSPOILER ADAPTER 12 LI. TANK
-
9650335096000 TANK ADAPTER BUSH 12 LITRETANK ADAPTER BUSH 12 LITRE
