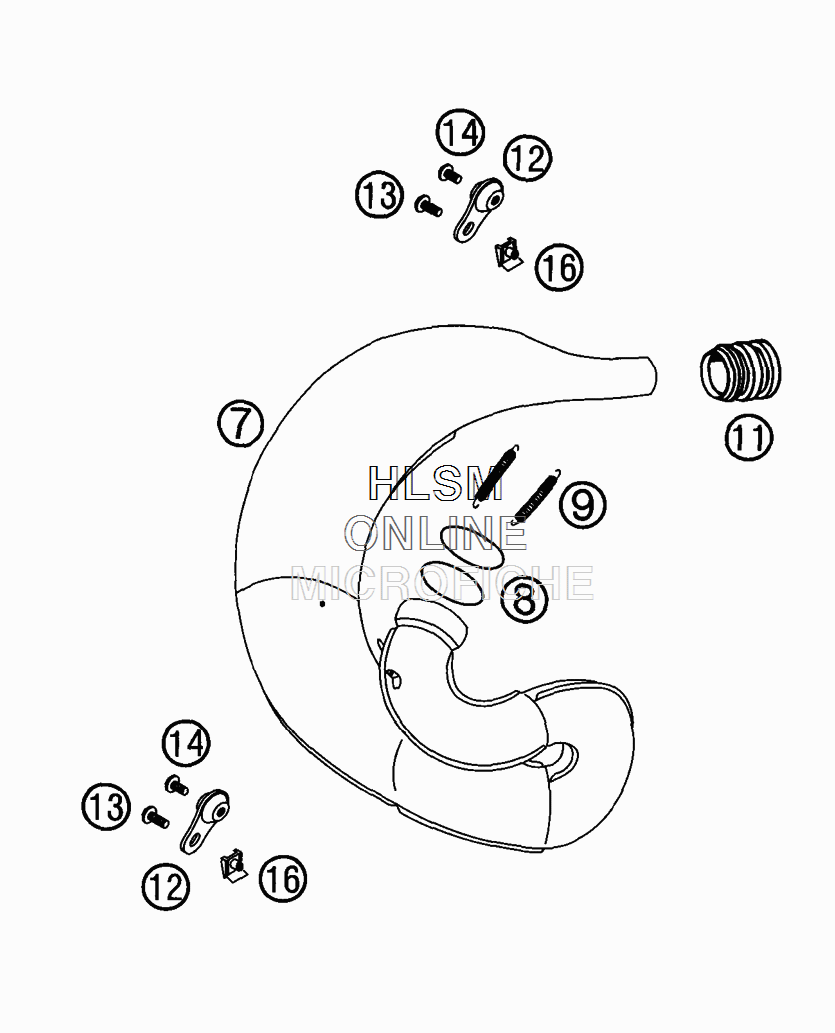

EXHAUST PIPE для Ktm 200 SX - 2003 года выпуска
-
№АртикулНазвание
-
754805007000 EXHAUST DOMAEXHAUST DOMA
-
80770440030 O-RING 44,00X3,00 VITONO-RING 44,00X3,00 VITON
-
950305016000 TEN.SPRING L=55MM EY.MOVEABLETEN.SPRING L=55MM EY.MOVEABLE
-
1154605157000 SILICON SLEEVE D=25/27MMSILICON SLEEVE D=25/27MM
-
1250305012000 SWINGELEMENT FOR EX.PIPESWINGELEMENT FOR EX.PIPE
-
130014060153 HH COLLAR SCREW M6X15 WS=8HH COLLAR SCREW M6X15 WS=8
-
140014060103 HH COLLAR SCREW M6X10 WS=8HH COLLAR SCREW M6X10 WS=8
-
1654603048100 RANGE CHANGE METAL NUT M6RANGE CHANGE METAL NUT M6
