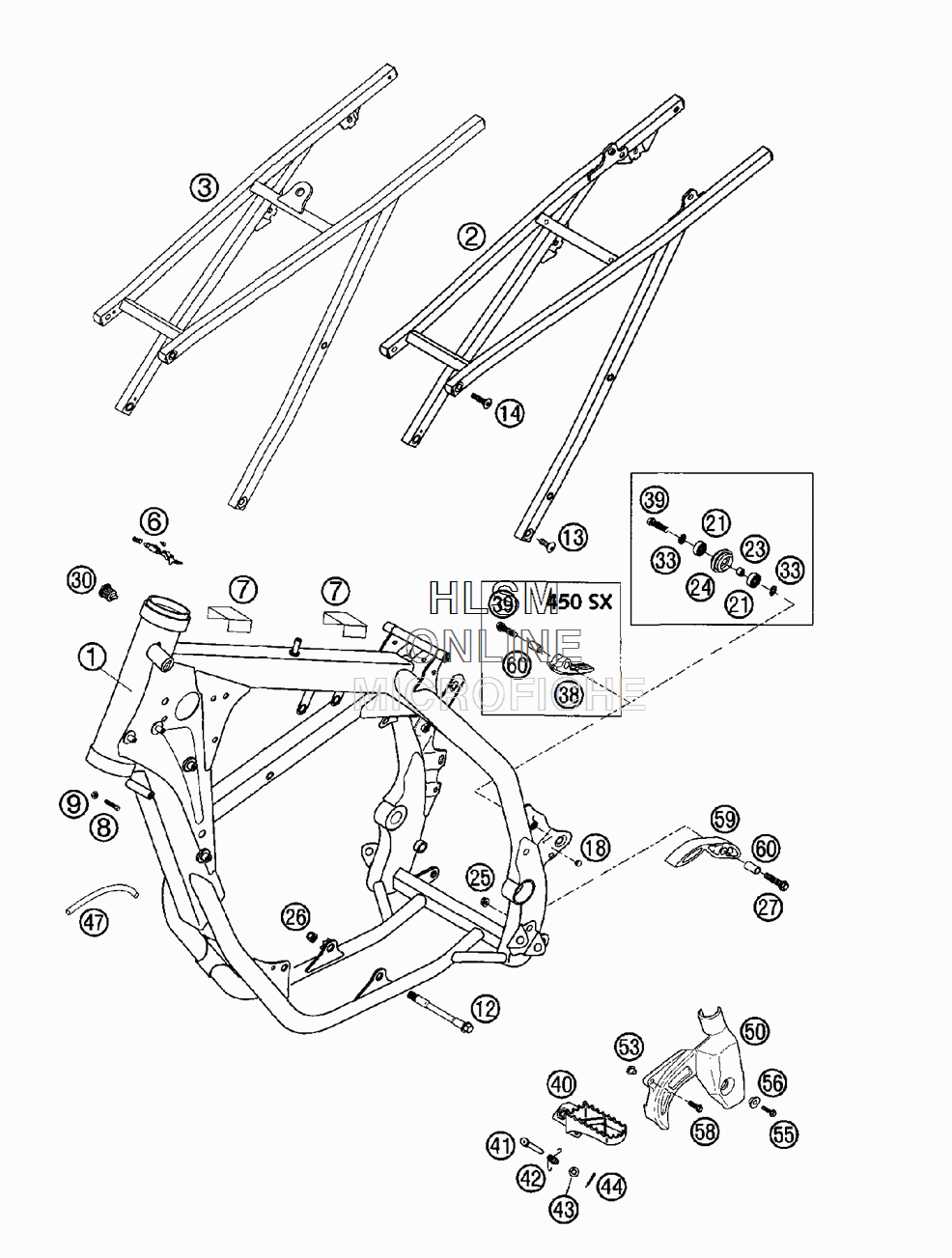

FRAME - SUB FRAME для Ktm 450 EXC-G Racing - 2003 года выпуска
-
№АртикулНазвание
-
15900300130096 FRAME EXC RACING "T3" (USA)FRAME EXC RACING "T3" (USA)
-
15900300140096 FRAME EXC RACING "S3" (EURO)FRAME EXC RACING "S3" (EURO)
-
259003002044 SUB FRAME CPL. ALU RACINGSUB FRAME CPL. ALU RACING
-
671003007000 STEERING HEAD LOCK CPL. ZADISTEERING HEAD LOCK CPL. ZADI
-
759003001099 METAMOLL F. FRAME-TUBE TOP 03METAMOLL F. FRAME-TUBE TOP 03
-
859001037000 SPECIAL SCREW M8X26 WS=10SPECIAL SCREW M8X26 WS=10
-
90934080003 HEXAGON NUT DIN0934-M8HEXAGON NUT DIN0934-M8
-
1259003013000 ENGINEBRAC.SCREW M10X123 WS=13 (QUALITY 10.9)ENGINEBRAC.SCREW M10X123 WS=13 (QUALITY 10.9)
-
1354610052000 SPROCKET SCREW-AH M8X20 WS=6SPROCKET SCREW-AH M8X20 WS=6
-
1454510052100 SPROCKET SCREW-AH M8X26 WS=6SPROCKET SCREW-AH M8X26 WS=6
-
1854403135000 PLASTIC CAP SFL10PLASTIC CAP SFL10
-
210625006087 GROOVED BALL BEAR. 608 2RS C3GROOVED BALL BEAR. 608 2RS C3
-
2374003021000 BUSHING 8.2 X 12 X 6BUSHING 8.2 X 12 X 6
-
2452303053000 CHAIN ROLL D=30MMCHAIN ROLL D=30MM
-
2554310086200 SELF LOCKING NUT M8 10.9SELF LOCKING NUT M8 10.9
-
2654310086100 SELF LOCKING NUT M10 CU WS=14SELF LOCKING NUT M10 CU WS=14
-
270015080353 HH COLLAR SCREW M 8X35 WS=10HH COLLAR SCREW M 8X35 WS=10
-
3042007049000 PLASTIC CAPPLASTIC CAP
-
3336003014000 LOCK WASHER 8MMLOCK WASHER 8MM
-
3854804067000 CHAIN SLIDING PIECECHAIN SLIDING PIECE
-
390015080303 HH COLLAR SCREW M8X30 WS=10HH COLLAR SCREW M8X30 WS=10
-
4059003040250 FOOT PED L/S SILVERFOOT PED L/S SILVER
-
4059003041250 FOOT PED R/S SILVERFOOT PED R/S SILVER
-
4154803044000 BOLT FOR FOOT PEDBOLT FOR FOOT PED
-
4254603041000 FOOTREST SPRING L/S & R/SFOOTREST SPRING L/S & R/S
-
430125100003 WASHER DIN0125-A10,5WASHER DIN0125-A10,5
-
440094032253 PIN DIN0094-3,2X25 STEELPIN DIN0094-3,2X25 STEEL
-
4755007016001 PVC-HOSE 7X10 PER METREPVC-HOSE 7X10 PER METRE
-
5059030060100 SPROCKET COVER RACINGSPROCKET COVER RACING
-
5359030060050 BUSHING F. SPROCKET COVER RAC.BUSHING F. SPROCKET COVER RAC.
-
550015060203 HH COLLAR SCREW M6X20 WS=8HH COLLAR SCREW M6X20 WS=8
-
5650308053000 BUSH FOR SPOILER 6X11X16X7,5BUSH FOR SPOILER 6X11X16X7,5
-
580015060403 HH COLLAR SCREW M6X40 WS=8HH COLLAR SCREW M6X40 WS=8
-
5951103053000 CHAIN SLIDING PIECE BELOWCHAIN SLIDING PIECE BELOW
-
6051103053051 BUSHING 8,2X10X20BUSHING 8,2X10X20
