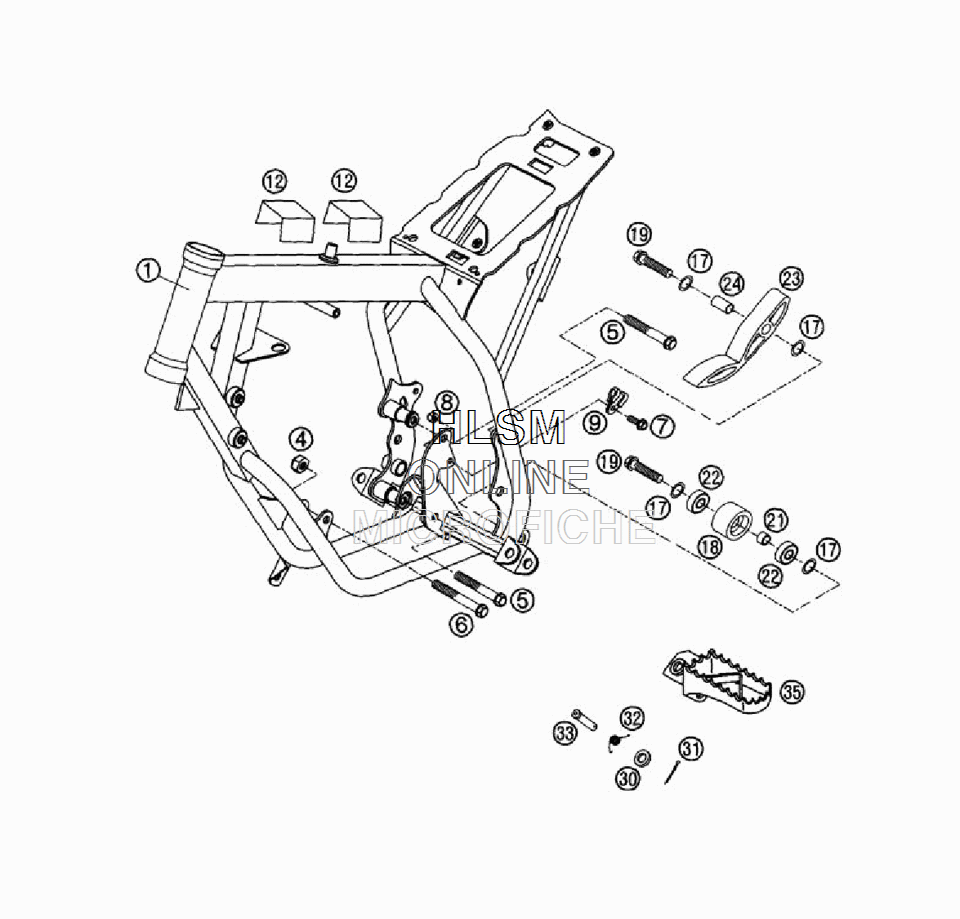

FRAME для Ktm 50 SX Pro Sr - 2003 года выпуска

№

Артикул

Название
1

45103001400 FRAME PRO SENIOR LC "MC3R"

FRAME PRO SENIOR LC "MC3R"

0 ₽
4

54310086200 SELF LOCKING NUT M8 10.9

SELF LOCKING NUT M8 10.9

500 ₽
5

0015080603 HH COLLAR SCREW M 8X60 WS=10

HH COLLAR SCREW M 8X60 WS=10

500 ₽
6

0015080653 HH COLLAR SCREW M8X65 SW10

HH COLLAR SCREW M8X65 SW10

430 ₽
7

0015050123 HH COLLAR SCREW M 5X12 WS=8

HH COLLAR SCREW M 5X12 WS=8

500 ₽
8

0985050003 SELF LOCKING NUT DIN0985-M 5

SELF LOCKING NUT DIN0985-M 5

290 ₽
9

45001070000 BRAKE CABLE GUIDE

BRAKE CABLE GUIDE

1 140 ₽
12

58711054050 METAMOLL FOR BATTERY BRACKET

METAMOLL FOR BATTERY BRACKET

350 ₽
17

36003014000 LOCK WASHER 8MM

LOCK WASHER 8MM

290 ₽
18

50203053000 CHAIN ROLL D=30MM

CHAIN ROLL D=30MM

1 810 ₽
19

0015080303 HH COLLAR SCREW M8X30 WS=10

HH COLLAR SCREW M8X30 WS=10

700 ₽
21

74003021000 BUSHING 8.2 X 12 X 6

BUSHING 8.2 X 12 X 6

620 ₽
22

0625006087 GROOVED BALL BEAR. 608 2RS C3

GROOVED BALL BEAR. 608 2RS C3

5 760 ₽
23

51103053000 CHAIN SLIDING PIECE BELOW

CHAIN SLIDING PIECE BELOW

2 110 ₽
24

51103053051 BUSHING 8,2X10X20

BUSHING 8,2X10X20

930 ₽
30

0125100003 WASHER DIN0125-A10,5

WASHER DIN0125-A10,5

290 ₽
31

0094032253 PIN DIN0094-3,2X25 STEEL

PIN DIN0094-3,2X25 STEEL

290 ₽
32

54603041000 FOOTREST SPRING L/S & R/S

FOOTREST SPRING L/S & R/S

1 110 ₽
33

54803044000 BOLT FOR FOOT PED

BOLT FOR FOOT PED

3 330 ₽
35

5460304000090 FOOT REST L/S SILVER

FOOT REST L/S SILVER

10 140 ₽
35

5460314000090 FOOT REST R/S SILVER

FOOT REST R/S SILVER

11 270 ₽
